LPS-RK-350SP - Eaton 350A 600Vac/300Vdc Class RK1 Time Delay Dual Element Fuse

LPS-RK-350SP

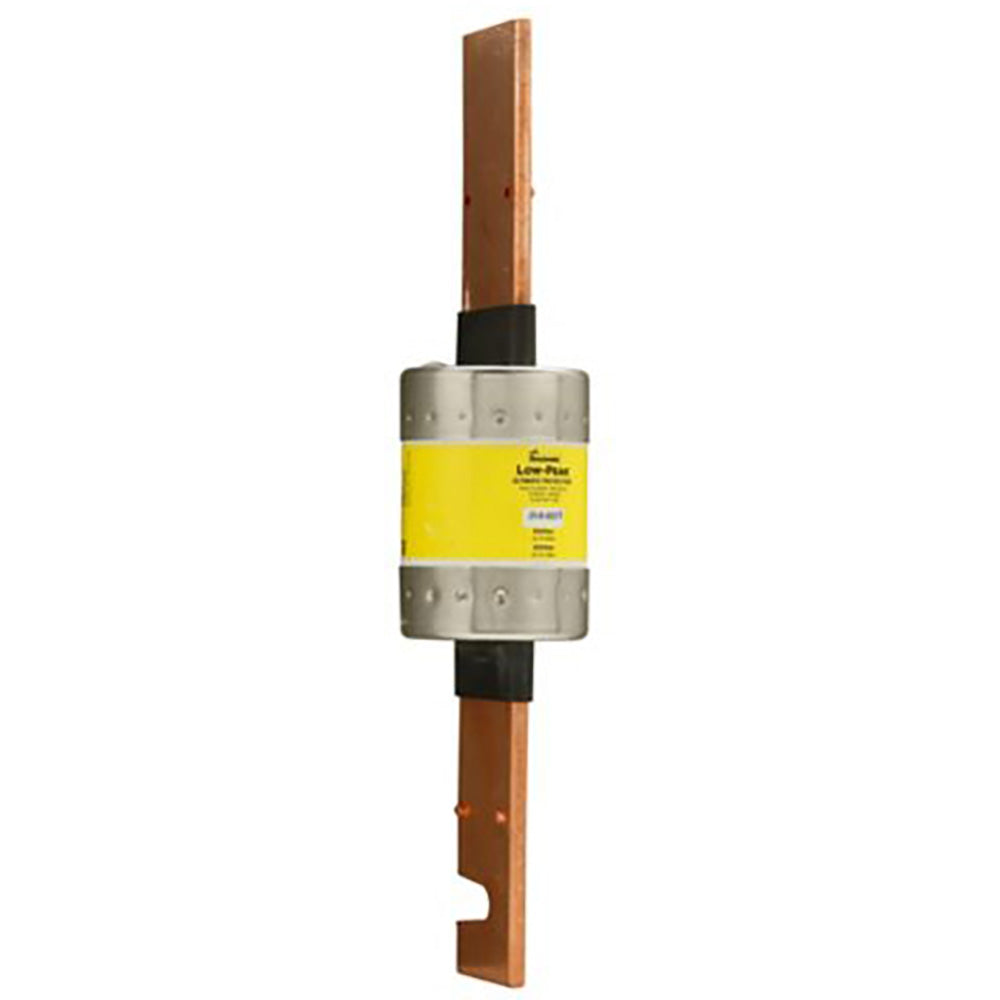

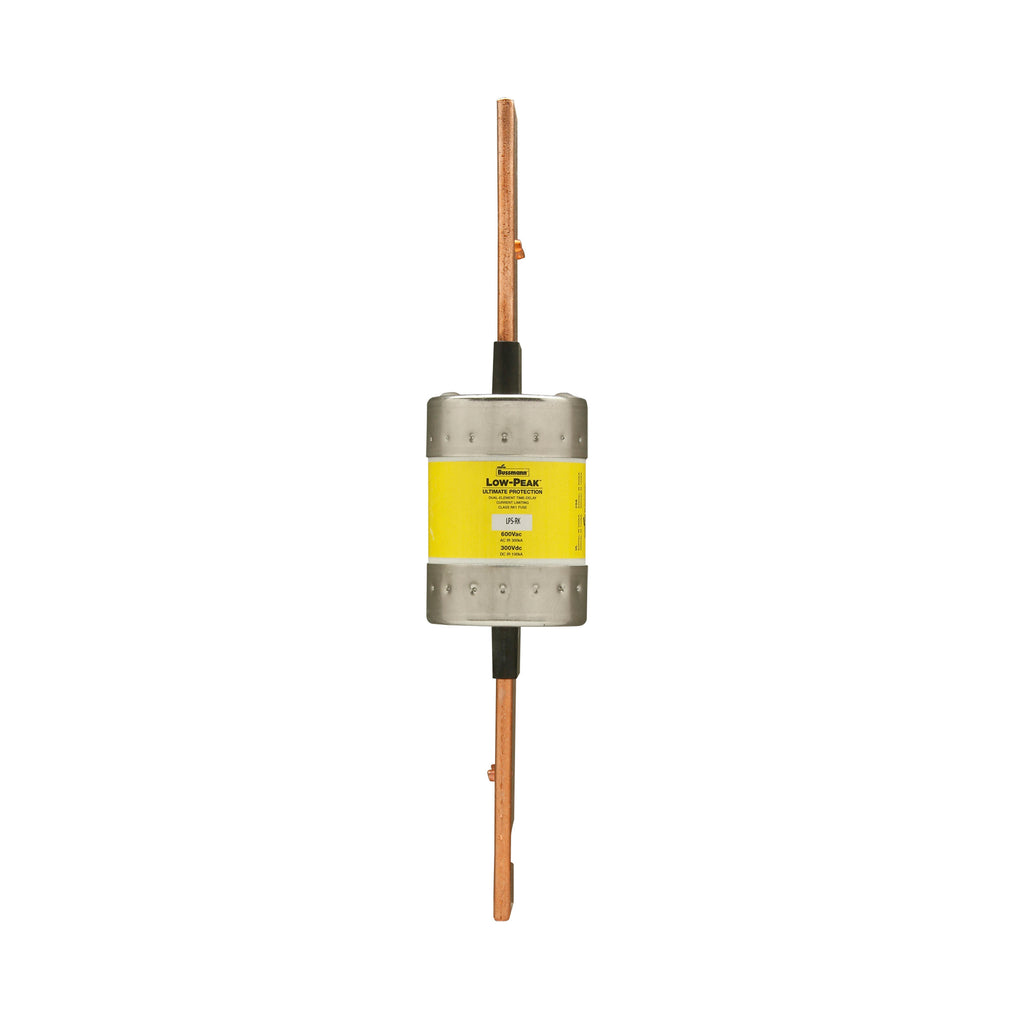

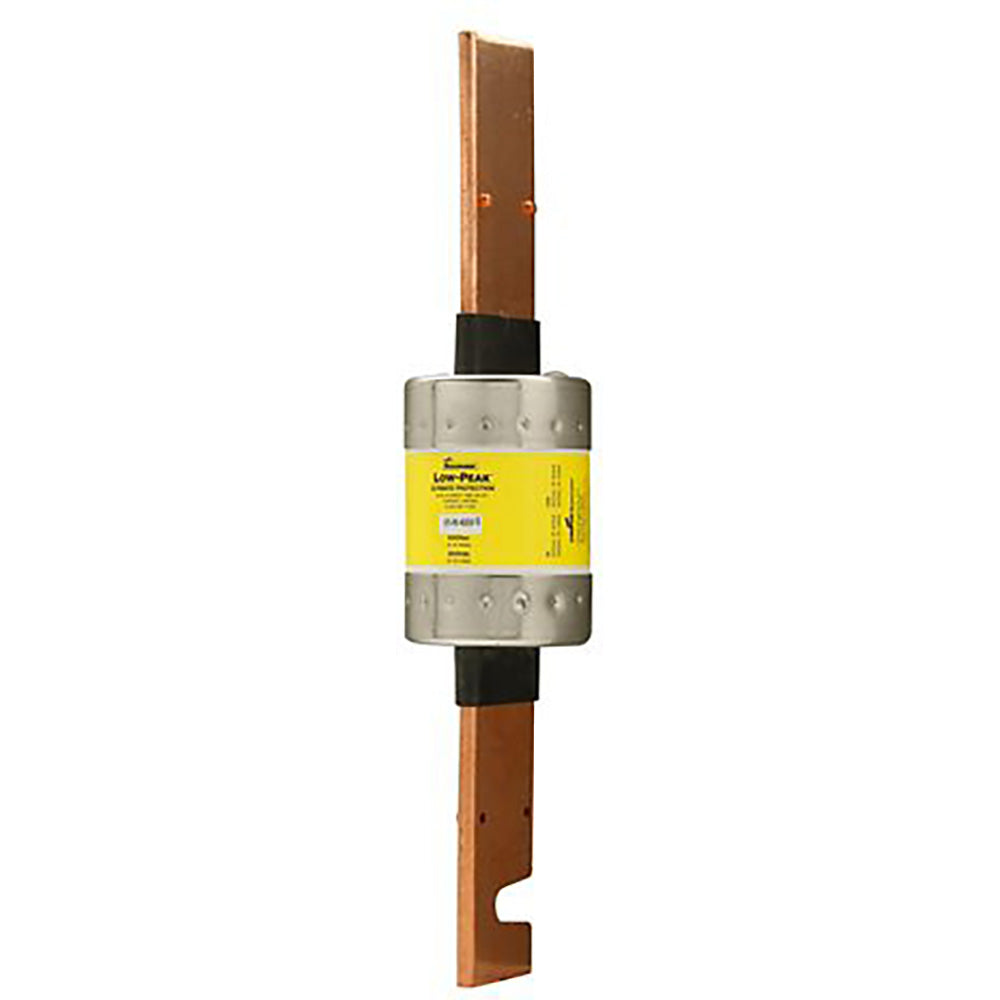

LPS-RK-350SP is an Eaton Bussmann Series Class RK1 time-delay, dual-element, current-limiting fuse rated for 350 amps and designed for reliable circuit protection.This fuse features a 350 A amperage rating with voltage ratings of 600 Vac and 300 Vdc. It has a high interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc, ensuring safe interruption of fault currents. The fuse is non-indicating with blade end connections and includes an electrically isolated end cap for enhanced safety. It complies with UL 248-12, cULus, CSA, CE, and RoHS standards.

Key Specifications
• Amperage Rating: 350 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupting Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Type: Time delay, dual-element, current limiting
• Class: RK1
• Connection: Blade end x blade end
• Fuse Indicator: Non-indicating
• Physical Size: 2.36 in x 11.63 in
• Weight: 4.6 lb
• Certifications: UL 248-12, cULus, CSA, CE, RoHS
• Special Features: Electrically isolated end cap
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPS-RK-350SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 350
• AIC rating : 300kA@600V
• Diameter : 2.36
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712548540
• GTIN : 00051712548540
• Country of Origin : Mexico
• Dimensions : 11.63 in x 2.36 in x 2.36 in (Length/Depth x Height x Width)
• Weight : 4.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
