LPS-RK-300SP - Eaton Bussmann 300A 600V AC RK1 Time Delay Fuse

LPS-RK-300SP

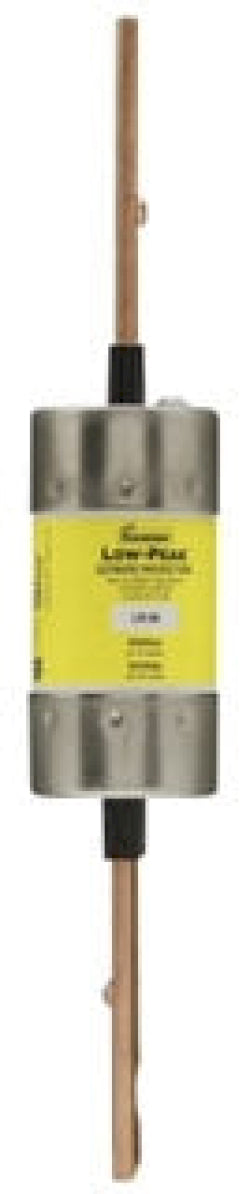

LPS-RK-300SP is a Bussmann series low-peak fuse designed for reliable circuit protection with a 300 ampere rating and RK1 class size.This Eaton Bussmann LPS-RK-300SP fuse features a time delay dual element design for high inrush current motor protection and current limiting to safely interrupt up to 300 kA at 600 VAC and 100 kA at 300 VDC. It is tin-plated with a cartridge body measuring 2.36 inches diameter by 11.63 inches length, UL listed and CSA certified for industrial applications.

Key Specifications
• Amperage: 300 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Class: RK1
• Fuse Type: Low-Peak, Time Delay, Dual Element
• Body Size: 2.36" diameter x 11.63" length
• Material: Tin-plated
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified
• Mounting Type: Cartridge

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-300SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 300
• AIC rating : 300kA@600V
• Diameter : 2.36
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548533
• GTIN : 00051712548533
• Country of Origin : Mexico
• Dimensions : 11.63 in x 2.36 in x 2.36 in (Length/Depth x Height x Width)
• Weight : 4.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
