Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPS-RK-3-2/10SP

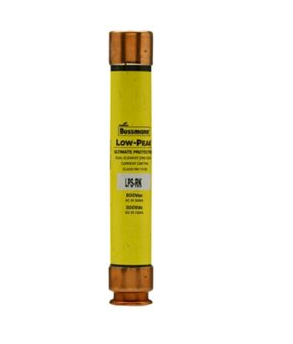

LPS-RK-3-2/10SP is a Bussmann Eaton Class RK1 time-delay cartridge fuse rated for 3.2 amps and 600 volts AC.This fuse features a dual-element, current-limiting design with a 300kA interrupting rating at 600 VAC and 300 VDC. It is a non-indicating, slow-blow fuse requiring a fuse holder for mounting. The LPS-RK series is designed for protection of circuits subject to temporary overloads and short circuits, providing reliable performance in industrial and commercial applications.
- Amperage: 3.2 A
- Voltage Rating AC: 600 VAC
- Voltage Rating DC: 300 VDC
- Fuse Type: Time Delay (Slow Blow)
- Class: RK1
- Mounting Type: Requires Holder (Cartridge)
- Interrupting Rating: 300 kA at 600 VAC
- Dual Element, Current Limiting
- Non-Indicating
- Series: LPS-RK
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: LPS-RK-3-2/10SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 3
- AIC rating : 300kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712548199
- GTIN : 00051712548199
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.17
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
