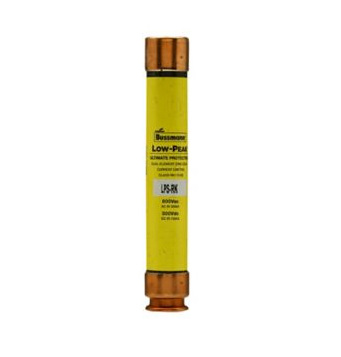

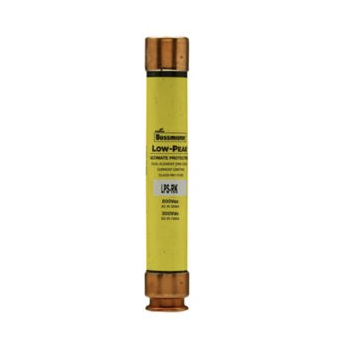

LPS-RK-3SP - Eaton 3A 600Vac/300Vdc Class RK1 Time-Delay Dual Element Fuse

LPS-RK-3

LPS-RK-3SP is a Eaton Bussmann Series Class RK1 time-delay, dual-element, current-limiting fuse rated for 3 amps and 600 Vac/300 Vdc.

This fuse features a 300 kA interrupting rating at 600 Vac and 100 kA at 300 Vdc, with a response time of 10 seconds at 500% overload. It has ferrule end connections, is non-indicating, and electrically isolated end caps for safety. The fuse is designed for reliable protection in industrial and commercial electrical systems requiring Class RK1 fuses.

Key Specifications
• Amperage Rating: 3 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Type: Time-delay, dual-element, current limiting
• Class: RK1
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Dimensions: 0.81 in x 5 in
• Special Features: Electrically isolated end cap
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-3
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 3
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• GTIN : 051712548182
• Weight : 5.19
