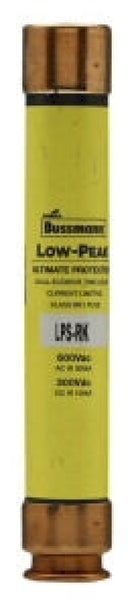

LPS-RK-2SP - Eaton Bussmann 2A 600V AC/300V DC Class RK1 Time-Delay Dual Element Fuse

LPS-RK-2SP

LPS-RK-2SP is a Eaton Bussmann Class RK1 time-delay dual-element fuse rated for 2 amps and designed for current limiting protection.

This fuse features a voltage rating of 600 Vac and 300 Vdc, with an interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It has a ferrule end x ferrule end connection and is non-indicating. The fuse is 5 inches long and 0.81 inches in diameter, suitable for use in low peak fuse applications requiring time-delay characteristics and high interrupting capacity.

Key Specifications
• Amperage: 2 A
• Voltage: 600 Vac / 300 Vdc
• Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Type: Time-delay, dual element, current limiting
• Class: RK1
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Length: 5 in
• Diameter: 0.81 in
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-2SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 2
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548144
• GTIN : 00051712548144
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
