Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

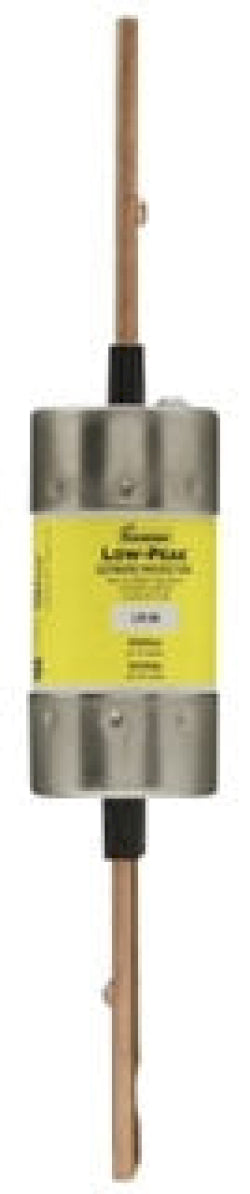

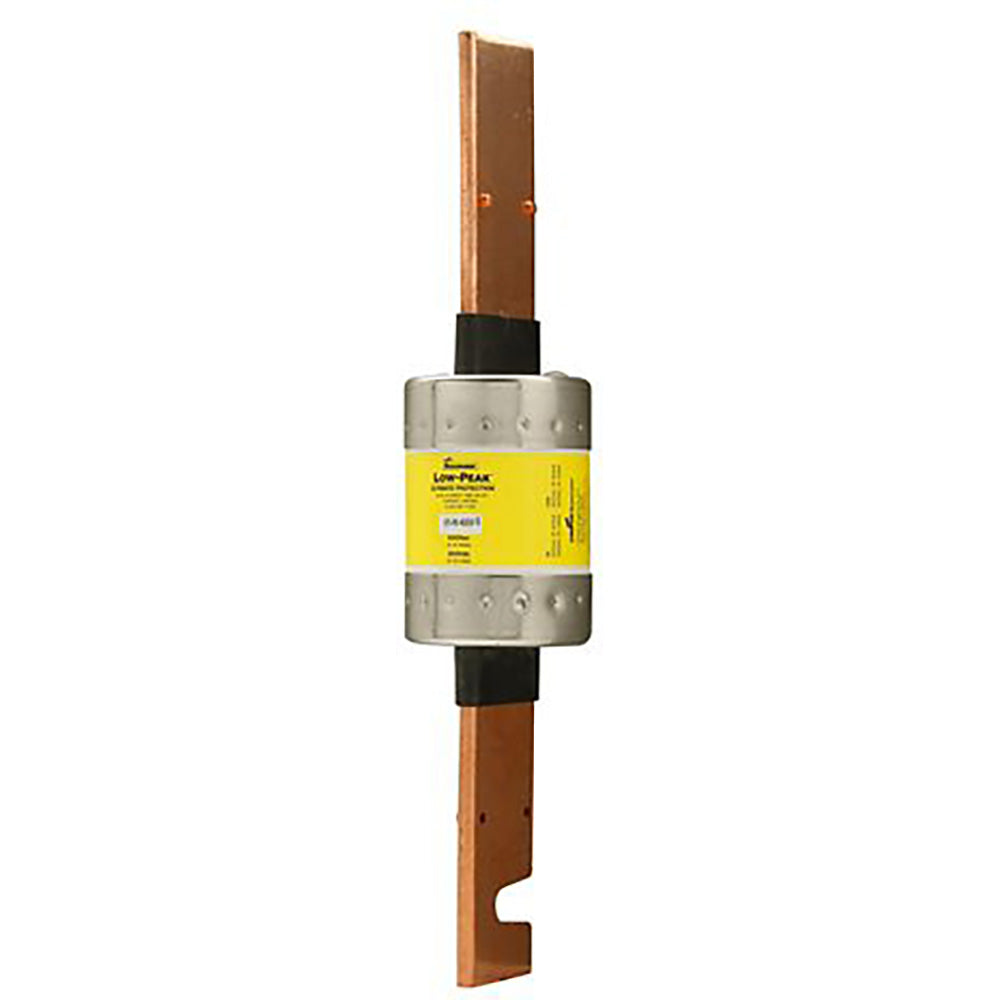

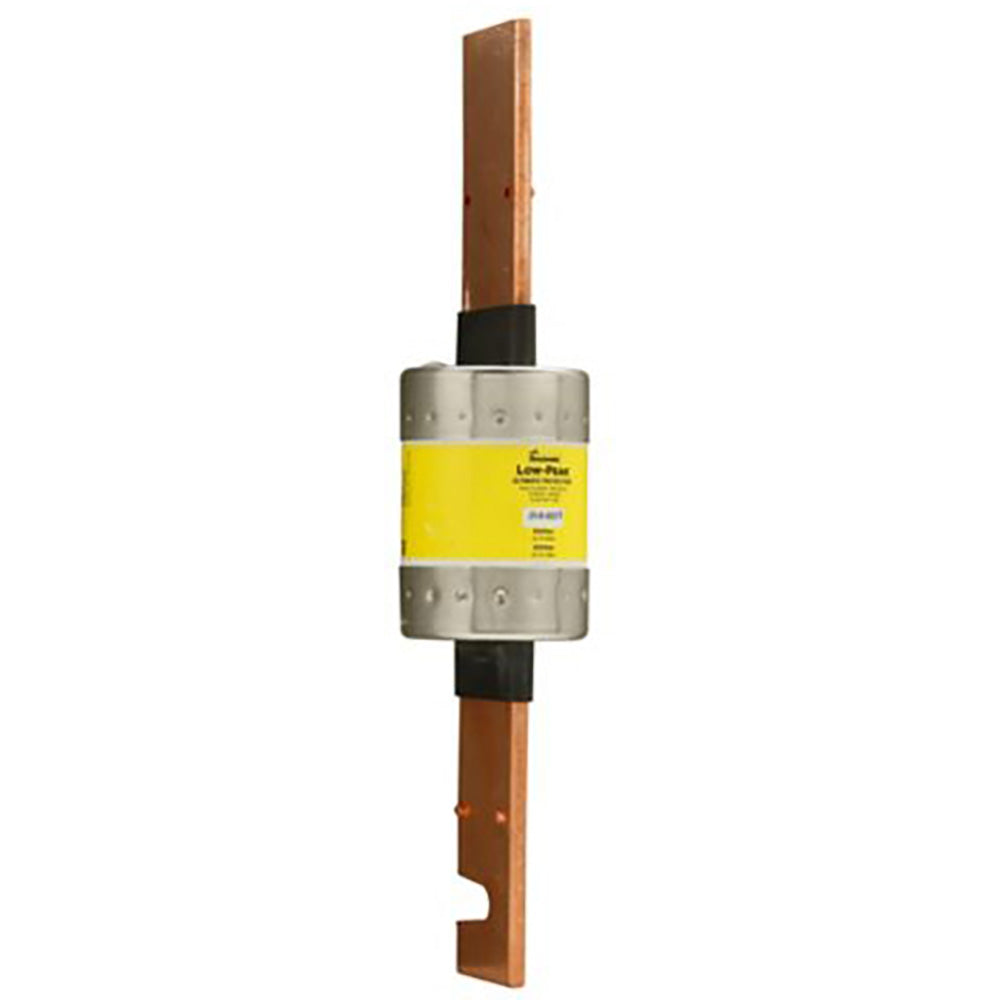

LPS-RK-250SP
LPS-RK-250SP is a 250A, 600V AC, Class RK1, time delay, dual element, current limiting fuse designed for high inrush motor protection and short circuit protection in industrial and commercial applications. This Eaton Bussmann LPS-RK series fuse provides reliable, low-peak protection with a 300,000 AIC interrupting rating at 600V AC and 100,000 AIC at 300V DC. It features a non-indicating design and is suitable for use in fuse blocks and panelboards requiring UL Class RK1 compliance.
- Amperage: 250A
- Voltage Rating: 600V AC, 300V DC
- Class: RK1
- Fuse Type: Time Delay, Dual Element
- Interrupting Rating: 300,000 AIC RMS @ 600V AC, 100,000 AIC @ 300V DC
- Series: LPS-RK
- Mounting Type: Blade Terminal
- Physical Size: 2.36" x 11.63"
- UL Listed: Guide JFHR, File E56412
- CSA Certified: Class 1422-02, File 53787
- Current Limiting: Yes
- Application: Motor Protection, Short Circuit Protection
Specifications
- Part Number: LPS-RK-250SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 250
- AIC rating : 300kA@600V
- Diameter : 2.36
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712548526
- GTIN : 00051712548526
- Country of Origin : Mexico
- Dimensions : 11.63 in x 2.36 in x 2.36 in (Length/Depth x Height x Width)
- Weight : 2.35
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
