LPS-RK-225SP - Bussmann Eaton 225A 600V Class RK1 Time Delay Dual Element Fuse

LPS-RK-225SP

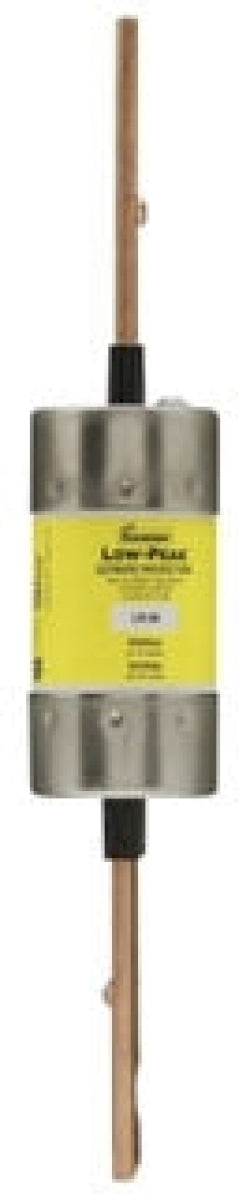

LPS-RK-225SP is a Bussmann Eaton Class RK1 time delay dual element fuse rated for 225 amps and 600 volts AC.

This fuse features a current limiting design with dual elements for maximum short circuit protection and high inrush current motor protection. It has a 300 kA interrupt rating at 600 VAC and 100 kA at 300 VDC. The fuse is a cartridge blade type with a physical size of 2.36 inches diameter by 11.63 inches length. It is UL listed, CSA certified, and CE approved, suitable for industrial and commercial applications requiring reliable time delay protection.

Key Specifications
• Amperage: 225 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300 kA AC / 100 kA DC
• Fuse Class: RK1
• Speed: Time Delay (Slow Blow)
• Dual Element, Current Limiting
• Physical Size: 2.36" diameter x 11.63" length
• Mounting Type: Cartridge Blade
• Approvals: UL Listed, CSA Certified, CE Approved
• Non-indicating Fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-225SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 225
• AIC rating : 300kA@600V
• Diameter : 2.36
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548519
• GTIN : 00051712548519
• Country of Origin : Mexico
• Dimensions : 11.63 in x 2.36 in x 2.36 in (Length/Depth x Height x Width)
• Weight : 4.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
