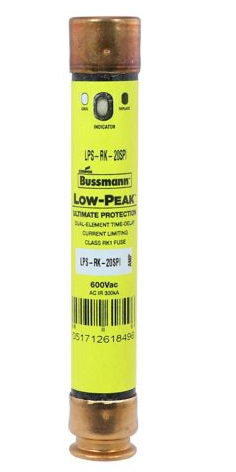

LPS-RK-20SPI - Eaton Bussmann 20 Amp 600V AC 300V DC Class RK1 Dual Element Time Delay Current Limiting Cartridge Fuse

LPS-RK-20SPI

LPS-RK-20SPI is a Class RK1 dual element, time-delay, current-limiting cartridge fuse from Eaton Bussmann, designed for reliable circuit protection in demanding electrical applications.

This fuse features a 20 amp rating, 600V AC / 300V DC voltage rating, and a high interrupting capacity of 300 kA at 600V AC. Its dual-element construction provides both time-delay and current-limiting performance, making it suitable for protecting motors, transformers, and branch circuits where inrush currents are present. The fuse is indicating, with ferrule ends, and meets CE marking requirements.

Key Specifications
• Part Number: LPS-RK-20SPI
• Manufacturer: Eaton Bussmann
• Amperage: 20 A
• Voltage: 600V AC, 300V DC
• Poles: 1
• Mounting Type: Cartridge, ferrule end
• Interrupt Rating: 300 kA at 600V AC, 100 kA at 300V DC
• Series/Frame: LPS-RK
• Trip Unit: Dual element, time delay
• Certifications: CE Marked
• Body Size: 0.81" dia x 5" L
• Response Time: 10 seconds at 500% of rating
• Indicator: Indicating type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-20SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 20
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712618496
• GTIN : 00051712618496
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
