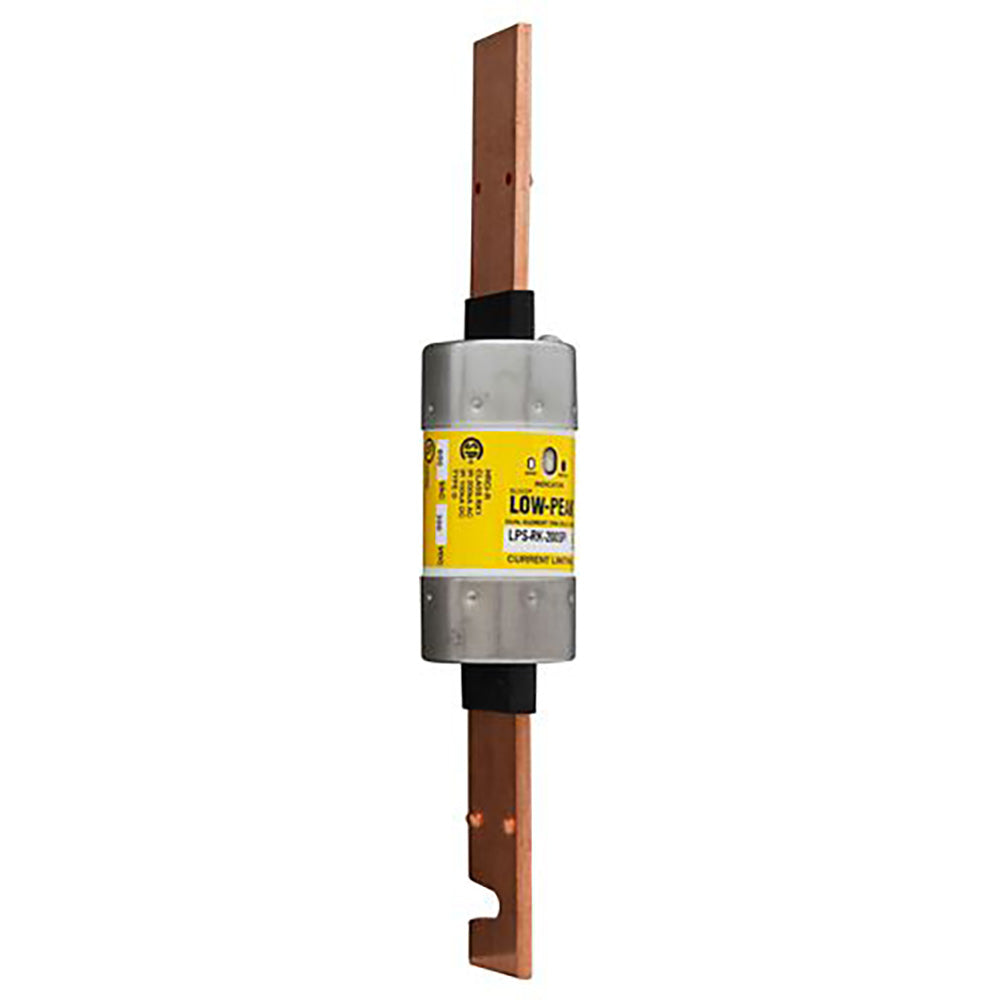

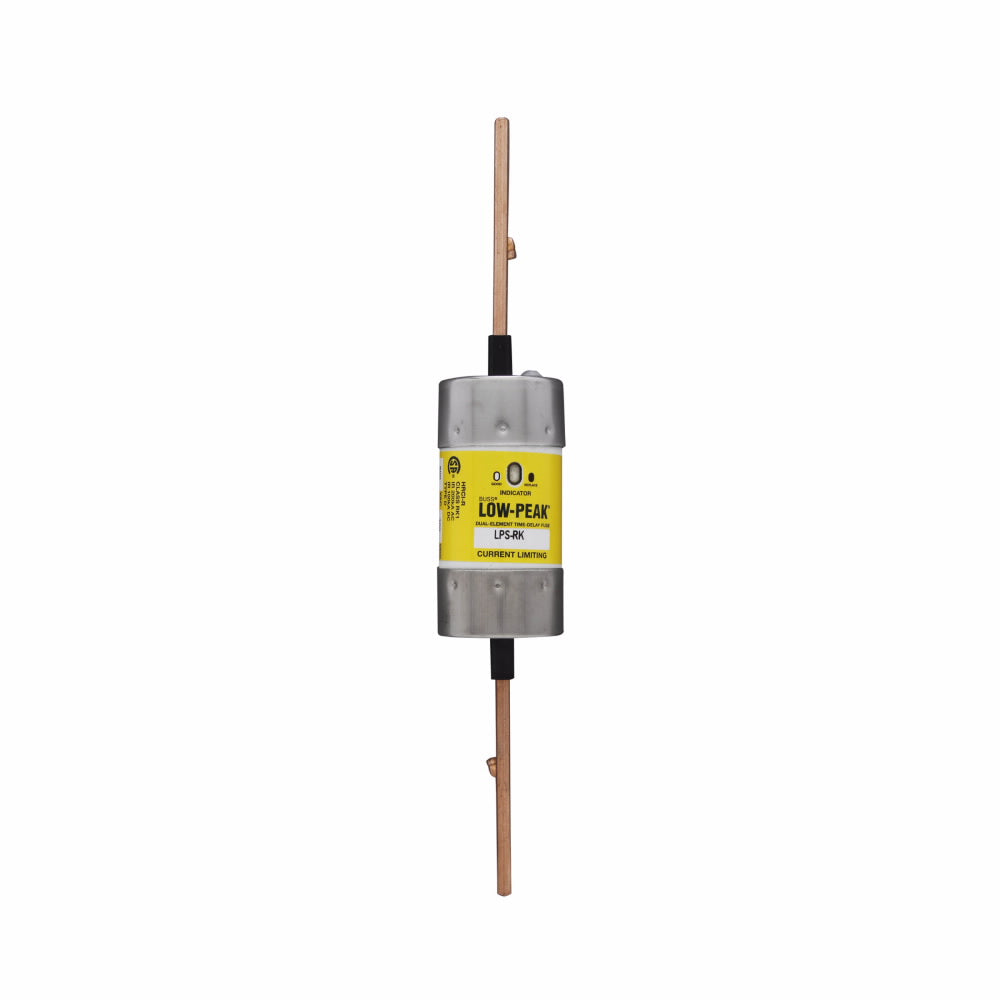

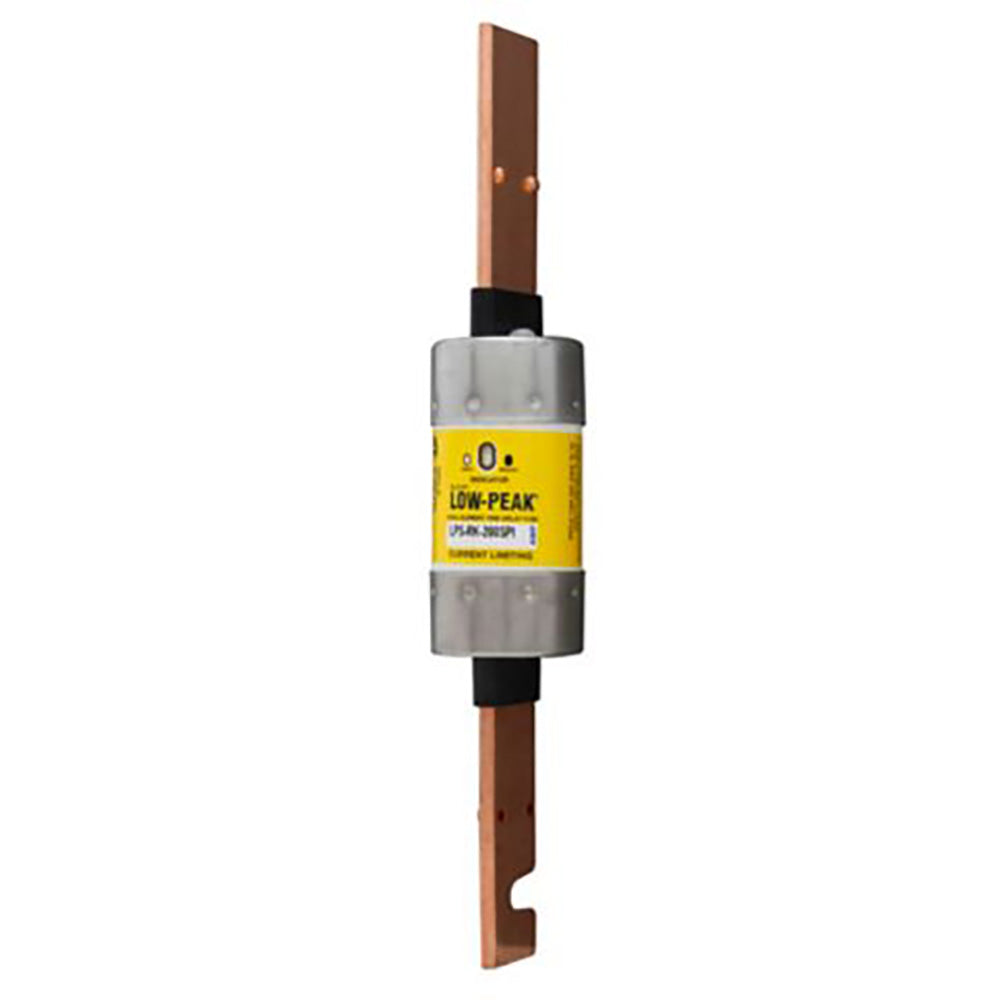

LPS-RK-200SPI - Eaton Bussmann 200A 600V AC Class RK1 Time-Delay Indicating Fuse Dual Element

LPS-RK-200SPI

LPS-RK-200SPI is a 200 Amp, 600 Volt AC Class RK1 time-delay indicating fuse from Eaton Bussmann series.This fuse features a dual-element, current-limiting design with a time-delay characteristic suitable for high inrush current motor protection. It has a blade end mounting type and an interrupting rating of 300 kA at 600 VAC and 100 kA at 300 VDC. The fuse body is melamine with an electrically isolated end cap and includes a permanent fuse indicator for easy status monitoring. It is UL Listed and CSA Certified.

Key Specifications
• Amperage Rating: 200 A
• Voltage Rating: 600 VAC / 300 VDC
• Class: RK1
• Fuse Type: Time Delay, Dual Element, Current Limiting
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Mounting Type: Blade End
• Fuse Indicator: Indicating
• Body Material: Melamine
• Dimensions: 1.61 in Diameter x 9.63 in Length
• Certifications: UL Listed, CSA Certified, CE Marked
• Series: LPS-RK
• Special Features: Electrically Isolated End Cap

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-200SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 200
• AIC rating : 300kA@600V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712626965
• GTIN : 00051712626965
• Country of Origin : Mexico
• Dimensions : 9.63 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
