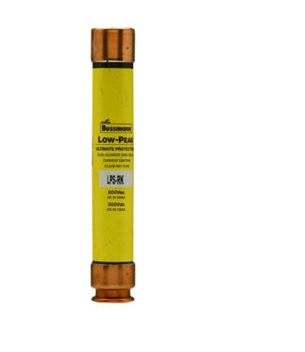

LPS-RK-2-1/4SP - Eaton Bussmann Class RK1 2.25A 600V Time-Delay Dual-Element Fuse

LPS-RK-2-1/4SP

LPS-RK-2-1/4SP is an Eaton Bussmann Series Class RK1 time-delay, dual-element, current-limiting cartridge fuse designed for motor protection and general-purpose circuits. This non-indicating fuse delivers fast short-circuit protection combined with time-delay performance for ultimate circuit protection in industrial and commercial applications. Key Specifications

• Current Rating: 2.25 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 300 kA at 600 Vac RMS Symmetrical
• Fuse Type: Cartridge, Class RK1
• Mounting Type: Requires Holder
• Time-Delay: 10 seconds minimum at 500% of rated current
• Current-Limiting: Protects downstream components against thermal and magnetic effects
• Dual-Element Design: Permits 130% FLA sizing for back-up motor protection
• Agency Listings: UL Listed and CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-2-1/4SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 2
• AIC rating : 300kA@600V
• Diameter : 2.88
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 05171254815
• GTIN : 00051712548151
• Country of Origin : United States
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
