Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

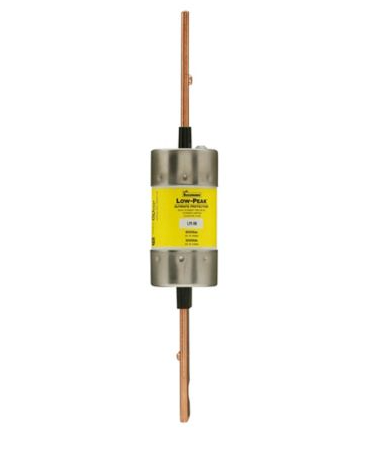

LPS-RK-175
LPS-RK-175 is a 175A Class RK1 dual-element, time-delay, current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann series fuse features a 600VAC/300VDC rating, 300 kAIC interrupting capacity at 600VAC, and 100 kAIC at 300VDC, making it suitable for high short-circuit environments. The non-indicating design provides robust protection without visual indication of fuse status. The LPS-RK-175 is a blade-end to blade-end fuse with electrically isolated end caps, ensuring safe and secure installation. It is UL Listed and CSA Certified for use in a wide range of electrical systems. This fuse is ideal for motor protection and applications requiring high inrush current tolerance.
- Part Number: LPS-RK-175
- Manufacturer: Eaton Bussmann Series
- Amperage Rating: 175A
- Voltage Rating: 600VAC, 300VDC
- Interrupt Rating: 300 kAIC at 600VAC, 100 kAIC at 300VDC
- Class: RK1
- Fuse Type: Dual-Element, Time-Delay, Current-Limiting
- Mounting Type: Blade End x Blade End
- Fuse Indicator: Non-Indicating
- Certifications: UL Listed, CSA Certified
- Special Features: Electrically Isolated End Cap
- Application: Motor Protection, High Inrush Current
Specifications
- Part Number: LPS-RK-175
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 175
- AIC rating : 300kA@600V
- Diameter : 1.61
- Class Rating : RK1
- Barrels : 1
Product Data
- GTIN : 051712417198
- Weight : 1
