Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

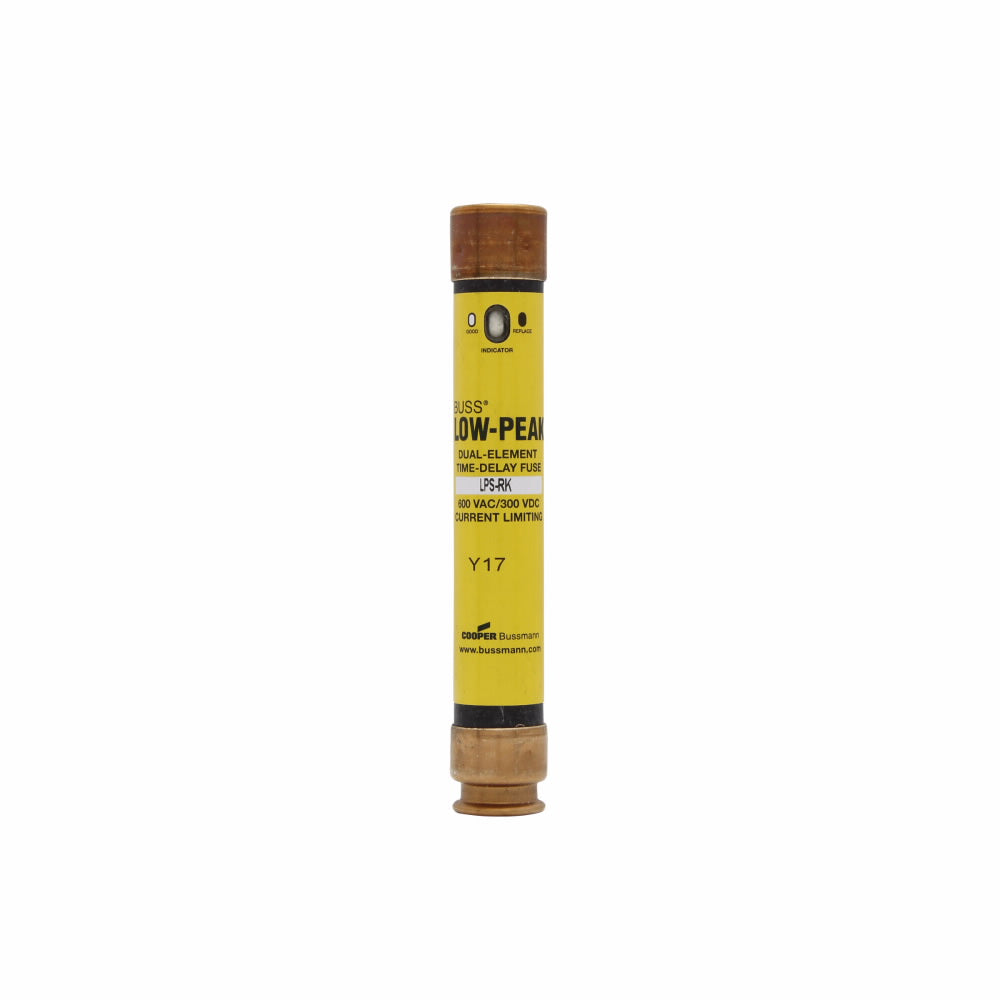

LPS-RK-15SPI
LPS-RK-15SPI is a Class RK1, dual-element, time-delay, current-limiting fuse from Eaton Bussmann Series, designed for reliable circuit protection in a wide range of industrial and commercial applications. This fuse features a 15A rating, 600VAC voltage, and is equipped with an indicating feature for easy open-fuse identification. The LPS-RK-15SPI is a cartridge-type fuse, providing fast short-circuit protection and dual-element, time-delay performance for ultimate reliability.
- Class: RK1
- Amperage: 15 A
- Voltage AC: 600 VAC
- Mounting Type: Cartridge
- Interrupt Rating: 300 kA Vac RMS Sym.
- Series: LPS-RK
- Indicating: Yes
- Time-Delay: Yes
- Current-Limiting: Yes
- UL Listed
- CSA Certified
Specifications
- Part Number: LPS-RK-15SPI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 15
- AIC rating : 300kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712618472
- GTIN : 00051712618472
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1.6
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
