LPS-RK-150SP - Eaton Bussmann 150A 600V AC RK1 Time Delay Fuse Dual Element Current Limiting

LPS-RK-150SP

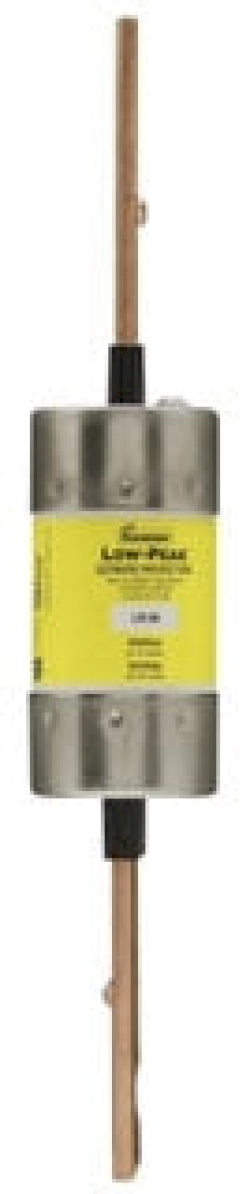

LPS-RK-150SP is a 150 amp, 600 volt AC Class RK1 time delay fuse from Eaton Bussmann series designed for reliable circuit protection.This fuse features a dual-element, current-limiting design with time delay for high inrush current motor protection and fast short-circuit interruption. It is rated for 300 kA interrupting capacity at 600 VAC and 100 kA at 300 VDC. The fuse is non-indicating, tin-plated, and measures 1.61 inches by 9.63 inches. It complies with UL 248-12, cULus, and CSA certifications.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Class: RK1
• Fuse Type: Time Delay, Dual Element
• Physical Size: 1.61" x 9.63"
• Material: Tin-plated
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, cULus, CSA Certified
• Mounting Type: Standard fuse holder compatible

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-150SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 150
• AIC rating : 300kA@600V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548489
• GTIN : 00051712548489
• Country of Origin : Mexico
• Dimensions : 9.63 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
• Weight : 1.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
