Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

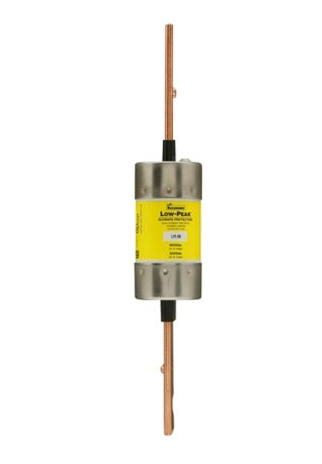

LPS-RK-150
LPS-RK-150 is a 150A Class RK1 fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann series fuse features time delay and current-limiting technology for maximum short circuit protection and high inrush current handling. The LPS-RK-150 fuse is dual element, non-indicating, and rated for 600VAC and 300VDC systems. It is suitable for use in fuse blocks and panelboards requiring Class RK1 protection. The fuse is tin-plated for durability and offers a robust interrupting rating for demanding environments.
- Amperage Rating: 150 A
- Voltage Rating: 600 VAC, 300 VDC
- Interrupting Rating: 300 kAIC at 600 VAC, 100 kAIC at 300 VDC
- Fuse Type: Time Delay, Current Limiting
- Class: RK1
- Series: LPS-RK
- Mounting Type: Blade End x Blade End
- Indicating: Non-Indicating
- Material: Tin-Plated
- Agency Approvals: UL Listed, CSA Certified
- Physical Size: 1.61" x 9.63"
- Weight: 2 lb
Specifications
- Part Number: LPS-RK-150
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 150
- AIC rating : 300kA@600V
- Diameter : 1.61
- Class Rating : RK1
- Barrels : 1
Product Data
- GTIN : 051712548489
- Weight : 1
