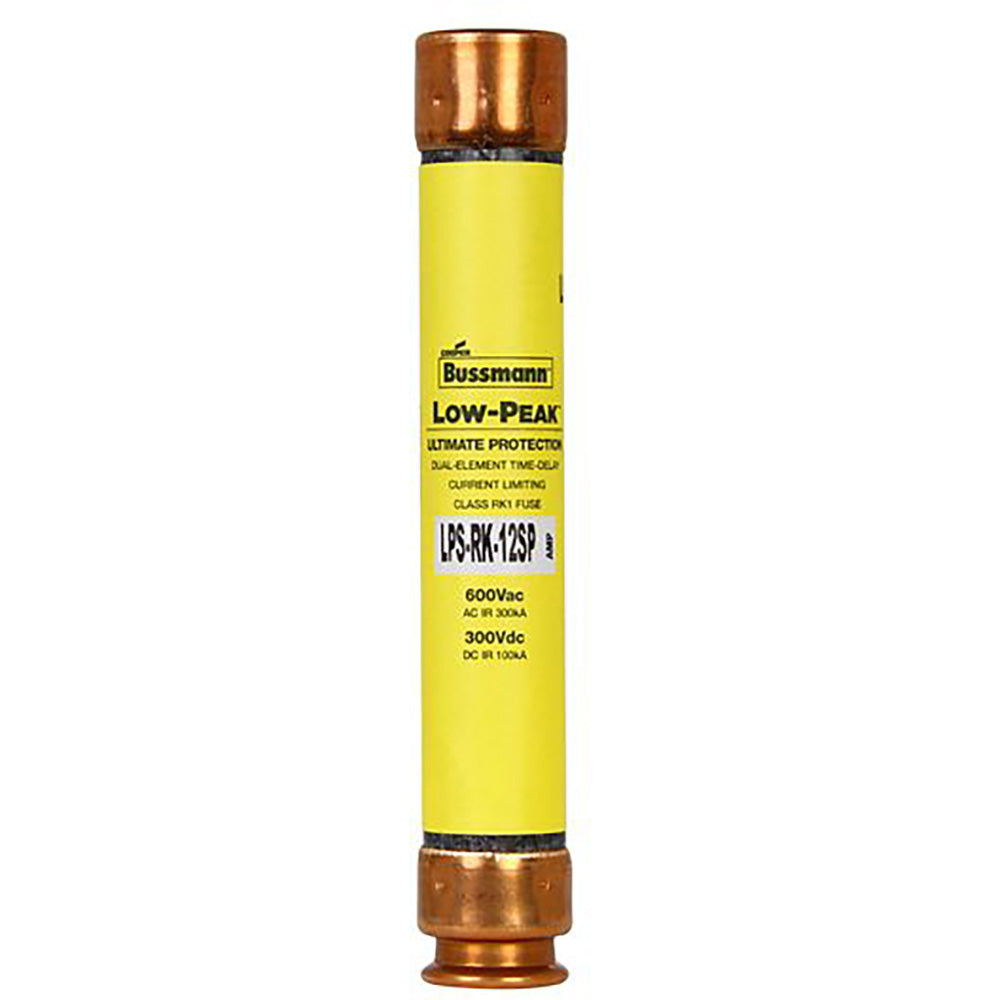

LPS-RK-12SP - Eaton Bussmann 12A 600V AC Class RK1 Time-Delay Dual Element Fuse

LPS-RK-12SP

LPS-RK-12SP is a Eaton Bussmann Class RK1 time-delay dual-element fuse rated for 12 amperes and 600 volts AC.This fuse features current-limiting capability with a 300 kA interrupt rating at 600 Vac and 100 kA at 300 Vdc, designed for reliable protection in electrical circuits. It has a non-indicating ferrule end connection and measures 5 inches in length by 0.81 inches in diameter.

Key Specifications
• Amperage Rating: 12 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Type: Time-delay, dual-element, current limiting
• Class: RK1
• Connection: Ferrule end x ferrule end
• Physical Size: 0.81 in diameter x 5 in length
• Fuse Indicator: Non-indicating
• Certifications: CE Marked
• Response Time: 10 seconds at 500% rated current

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-12SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 12
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548311
• GTIN : 00051712548311
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
