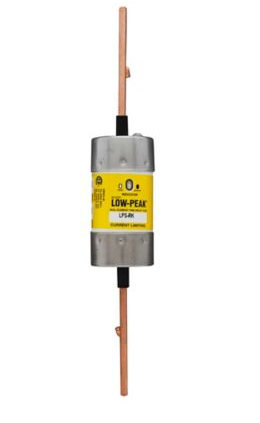

LPS-RK-125SPI - Eaton Bussmann 125A 600VAC/300VDC Class RK1 Time-Delay Dual Element Fuse with Indicator

LPS-RK-125SPI

LPS-RK-125SPI is a time-delay, dual-element, current-limiting fuse from Eaton Bussmann series designed for reliable circuit protection.This Class RK1 fuse features a 125 ampere rating with voltage ratings of 600 VAC and 300 VDC. It offers a high interrupting rating of 300 kA at 600 VAC and 100 kA at 300 VDC. The fuse includes an indicating feature and blade end x blade end connection with an electrically isolated end cap for enhanced safety. It is CE marked for compliance.

Key Specifications
• Amperage: 125 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Time-delay, dual-element, current-limiting
• Class: RK1
• Connection: Blade end x blade end
• Fuse Indicator: With indicator
• Body Material: Melamine
• Compliance: CE Marked
• Physical Size: 1.61 in diameter x 9.63 in length
• Special Feature: Electrically isolated end cap

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-125SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 125
• AIC rating : 300kA@600V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712626934
• GTIN : 00051712626934
• Country of Origin : Mexico
• Dimensions : 9.63 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
