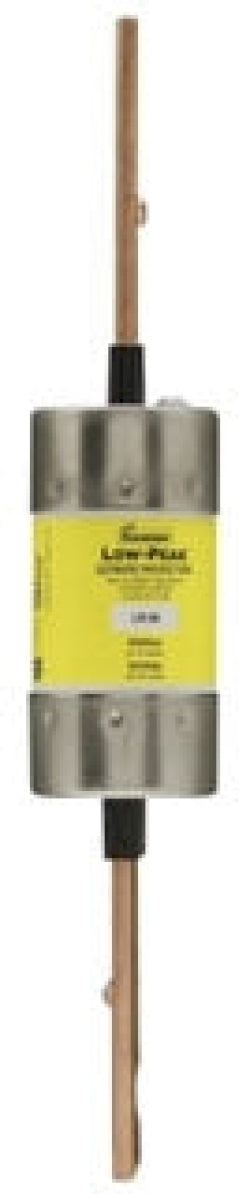

LPS-RK-110SP - Eaton Bussmann 110A 600V AC Class RK1 Time Delay Fuse Dual Element

LPS-RK-110SP

LPS-RK-110SP is a 110 amp, 600 volt AC Class RK1 time delay fuse from Eaton Bussmann series designed for reliable circuit protection.This dual-element, current-limiting fuse features a time-delay characteristic for high inrush current motor protection and fast short-circuit interruption. It is non-indicating with blade end x blade end connections, rated for 300 kA interrupting capacity at 600 VAC and 100 kA at 300 VDC. The fuse complies with UL, CSA, and CE certifications.

Key Specifications
• Amperage Rating: 110 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Time Delay, Current Limiting
• Class: RK1
• Elements: Dual
• Connection: Blade end x blade end
• Fuse Indicator: Non-indicating
• Dimensions: 9.63 in length, 1.61 in diameter
• Certifications: UL Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-110SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 110
• AIC rating : 300kA@600V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 005171254846
• GTIN : 00051712548465
• Country of Origin : Mexico
• Dimensions : 9.63 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
