Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPS-RK-100SPI

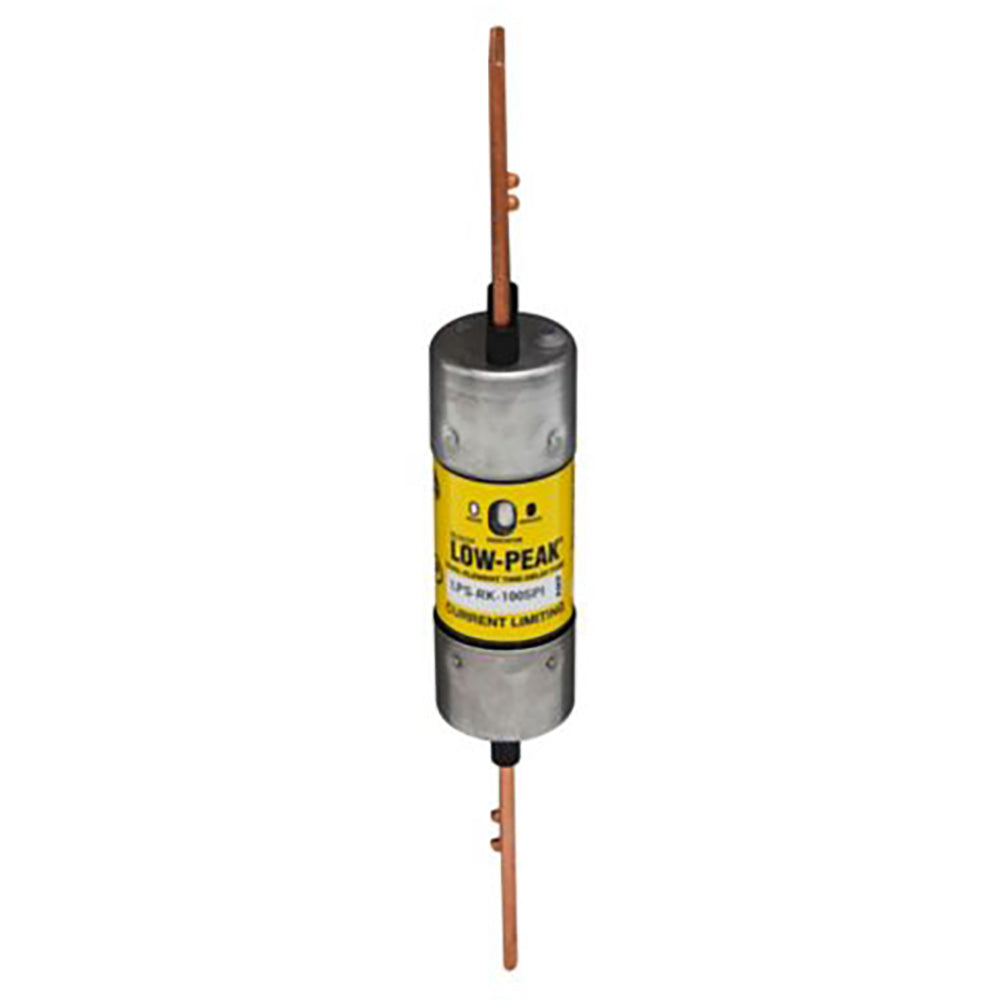

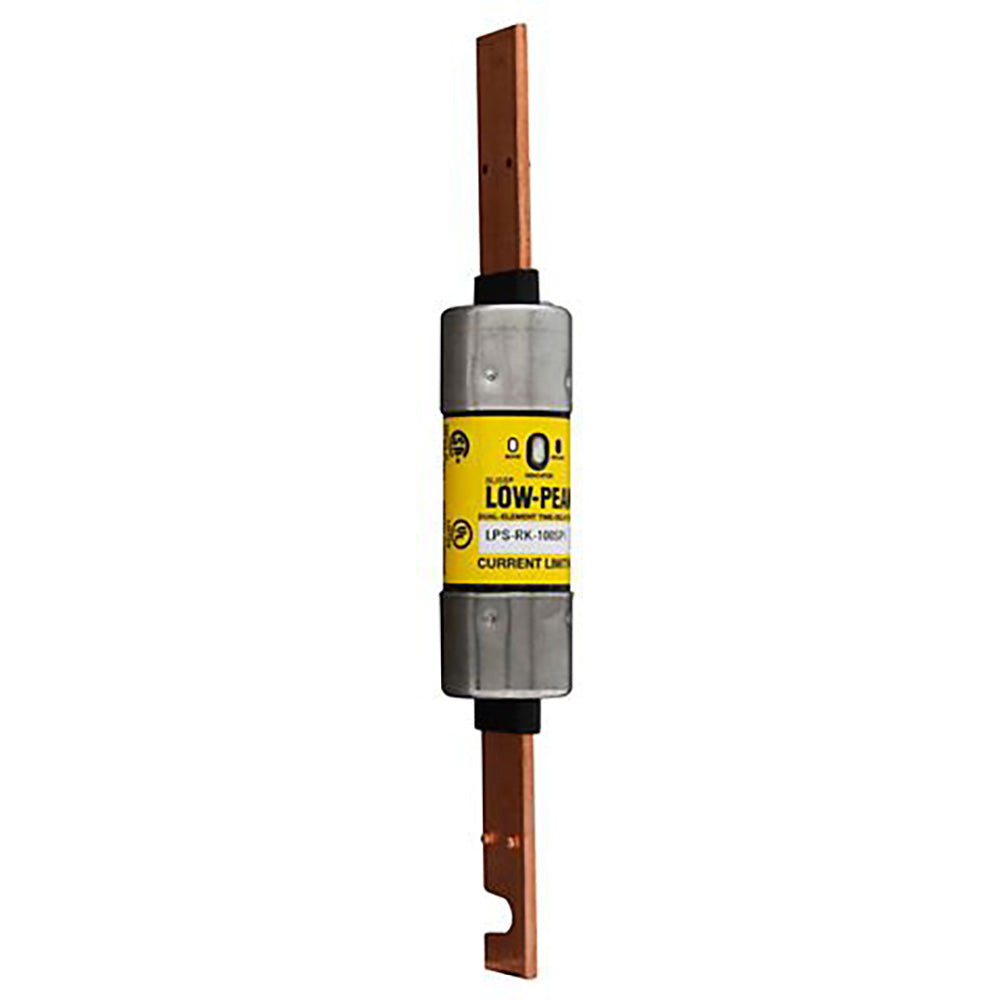

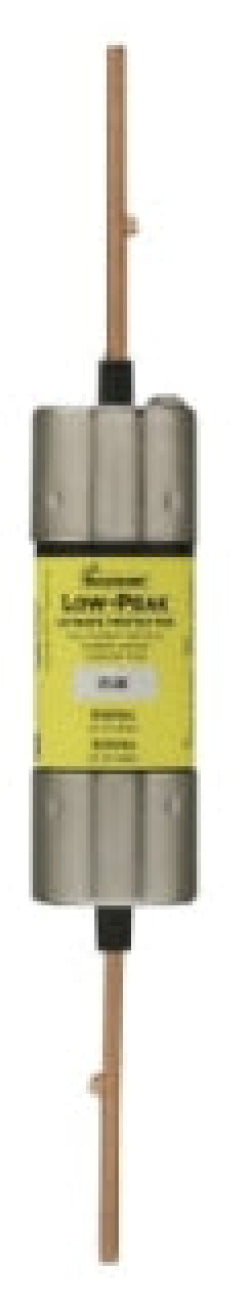

LPS-RK-100SPI is a Bussmann Eaton Class RK1 time delay indicating fuse rated for 100 amps and 600 volts AC.This fuse features a dual-element, current-limiting design with a time delay of at least 10 seconds, suitable for protecting circuits with temporary overloads. It has an interrupting rating of 300kA at 600 VAC and 300V DC, with a physical size of 1.11 inches diameter by 7.88 inches length. The fuse is cartridge style, indicating type, and UL listed for safety and reliability.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: RK1
- Fuse Type: Time Delay, Dual Element
- Interrupting Rating: 300 kA at 600 VAC
- Physical Size: 1.11 inch diameter x 7.88 inch length
- Indicating Fuse: Yes
- Mounting Type: Cartridge
- Standards: UL Listed
- Part Number: LPS-RK-100SPI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 100
- AIC rating : 300kA@600V
- Diameter : 1.11
- Class Rating : RK1
- Barrels : 1
- UPC : 051712626569
- GTIN : 00051712626569
- Country of Origin : Mexico
- Dimensions : 7.88 in x 1.11 in x 1.11 in (Length/Depth x Height x Width)
- Weight : 4
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
