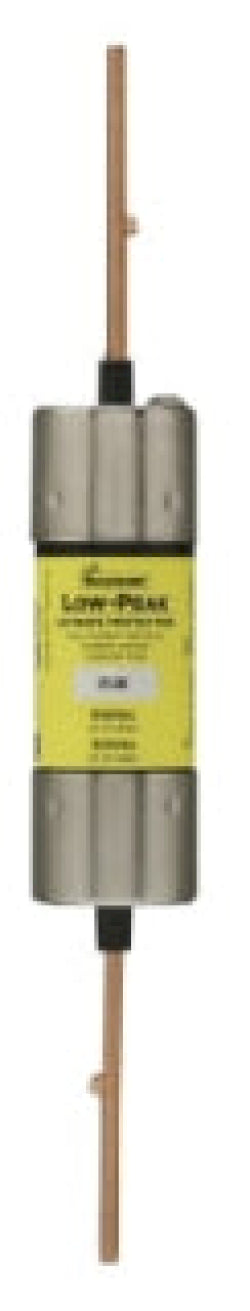

LPS-RK-100SP - Eaton Bussmann 100A 600Vac 300Vdc Class RK1 Time Delay Fuse

LPS-RK-100SP

This fuse features a dual-element, current-limiting design with a voltage rating of 600 Vac and 300 Vdc, and an interrupt rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It has a blade end x blade end connection and is non-indicating with an electrically isolated end cap. The fuse body measures 1.11 inches in diameter by 7.88 inches in length and complies with CE and RoHS standards.

Key Specifications
• Amperage Rating: 100 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Type: Time delay, dual-element, current limiting
• Class: RK1
• Connection: Blade end x blade end
• Fuse Indicator: Non-indicating
• Body Size: 1.11 in diameter x 7.88 in length
• Special Features: Electrically isolated end cap
• Certifications: CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: LPS-RK-100SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 100
• AIC rating : 300kA@600V
• Diameter : 1.11
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712548458
• GTIN : 00051712548458
• Country of Origin : Mexico
• Dimensions : 7.88 in x 1.11 in x 1.11 in (Length/Depth x Height x Width)
• Weight : 4
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
