Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

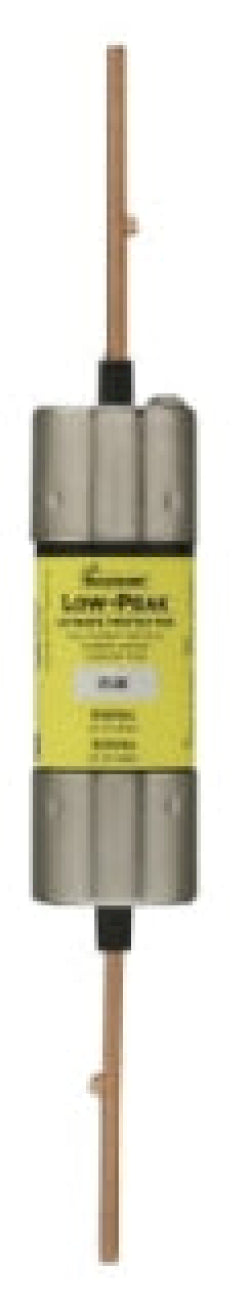

LPS-RK-100
LPS-RK-100 is a dual element, time delay Class RK1 fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann series fuse provides current-limiting performance and is suitable for use in motor, transformer, and general purpose circuits.Engineered for durability and safety, the LPS-RK-100 fuse features a 600VAC/300VDC voltage rating and a high interrupting capacity. Its dual element construction ensures time delay characteristics, allowing for temporary overloads without nuisance tripping. The fuse is non-indicating and is designed for use in standard Class R fuse blocks.
- Amperage: 100A
- Voltage Rating: 600VAC, 300VDC
- Fuse Class: Class RK1
- Fuse Type: Dual Element, Time Delay
- Interrupting Rating: 300kA at 600VAC, 100kA at 300VDC
- Physical Size: 1.11" diameter x 7.88" length
- Mounting Type: Standard Class R fuse block
- Series: LPS-RK
- Agency Approvals: UL 248-12, CSA C22.2 No. 248.12
- Applications: Motor, transformer, solenoid, general purpose circuits
Specifications
- Part Number: LPS-RK-100
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 100
- AIC rating : 300kA@600V
- Diameter : 1.11
- Class Rating : RK1
- Barrels : 1
Product Data
- Weight : 7
