Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPS-RK-1-1/2SP

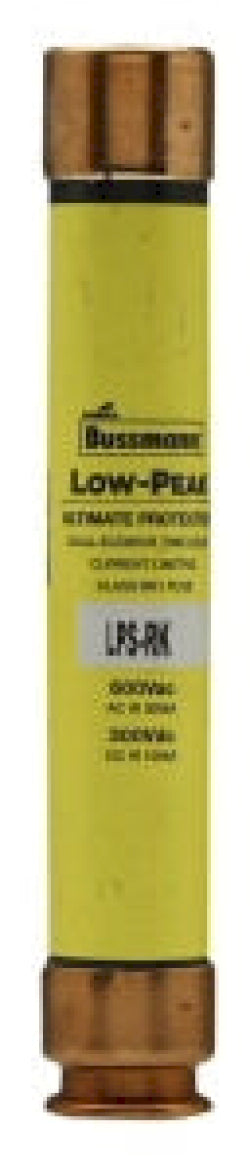

LPS-RK-1-1/2SP is a Eaton Bussmann Series Class RK1 dual element, time-delay cartridge fuse rated for 1.5 amps and 600 volts AC.
This fuse provides current-limiting protection with a time-delay feature that allows it to withstand temporary overloads without blowing, making it ideal for motor and general-purpose circuit protection. It has a high interrupting rating of 300,000 amps AC RMS symmetrical, ensuring reliable short-circuit protection. The fuse is non-indicating and requires a fuse holder for mounting.
- Key Specifications
- Amperage: 1.5 A
- Voltage Rating AC: 600 VAC
- Voltage Rating DC: 300 VDC
- Fuse Type: Cartridge
- Class: RK1
- Time-Delay, Dual Element
- Interrupting Rating: 300 kA AC RMS Symmetrical
- Mounting Type: Requires Holder
- Part Number: LPS-RK-1-1/2SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 1
- AIC rating : 300kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
- UPC : 051712547994
- GTIN : 00051712547994
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1.6
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
