Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
LPNRK6SP

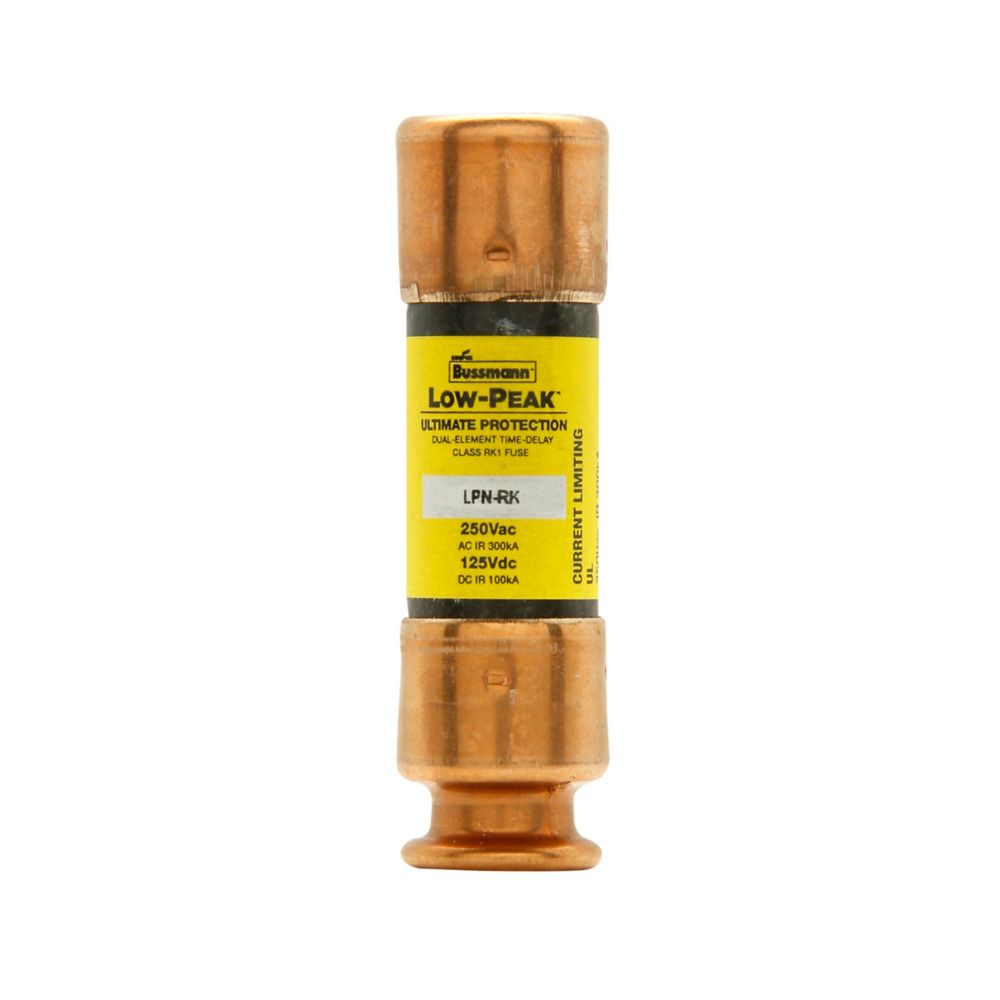

LPNRK6SP is an Eaton Bussmann series Class RK1 dual element, time-delay, current-limiting fuse designed for low-voltage branch circuit and feeder protection. This non-indicating fuse combines fast short-circuit protection with time-delay performance for reliable operation in industrial and commercial applications. LPNRK6SP delivers industry-leading protection with a 300 kA interrupting rating at 250 Vac, allowing simple installation in virtually any application without complex coordination calculations. The dual-element design reduces fuse inventory requirements by up to 33% compared to single-element alternatives.
- Amperage Rating: 6 A
- Voltage Rating: 250 Vac, 125 Vdc
- Interrupting Rating: 300 kA RMS Symmetrical at 250 Vac
- Interrupt Rating at 125 Vdc: 100 kAIC
- Fuse Type: Dual element, time-delay, current-limiting
- Class: RK1
- Response Time: 8 seconds at 500% rated current
- Mounting: Ferrule end x ferrule end
- UL Listed and CSA Certified
Specifications
- Part Number: LPNRK6SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Low-Peak
- Voltage : 250
- Amperage : 6
- AIC rating : 300kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- Weight : 0.08
