Product Info
- Manufacturer:Bussmann
Description
LPNRK500SP

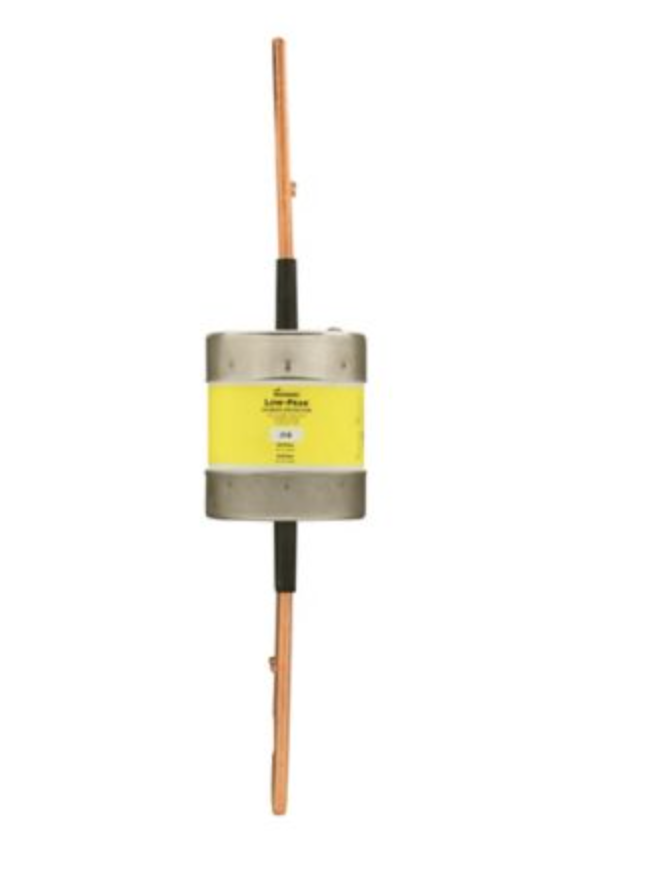

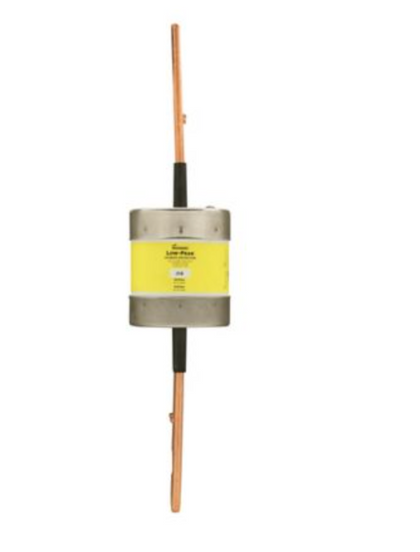

LPNRK500SP is a Bussmann 500 amp, 600 volt AC Class RK1 time delay dual element fuse designed for ultimate circuit protection.This Eaton Bussmann LPS-RK series fuse features a low-peak, current-limiting design with dual elements and time delay characteristics for reliable protection of electrical circuits. It is non-indicating with blade end x blade end mounting, rated for 300 kA interrupting capacity at 600 VAC and 100 kA at 300 VDC. The fuse complies with UL 248-12 and CSA C22.2 No. 248.12 standards and is cULus listed.
- Key Specifications
- Amperage: 500 A
- Voltage: 600 VAC, 300 VDC
- Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
- Fuse Type: Time Delay, Dual Element
- Class: RK1
- Mounting: Blade end x blade end
- Non-indicating
- Standards: UL 248-12, CSA C22.2 No. 248.12, cULus Listed
- Series: LPS-RK
- Part Number: LPNRK500SP
- Brand : Bussmann
- UPC : 05171253857
- GTIN : 00051712538572
- Weight : 5.19
