Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPNRK40SP

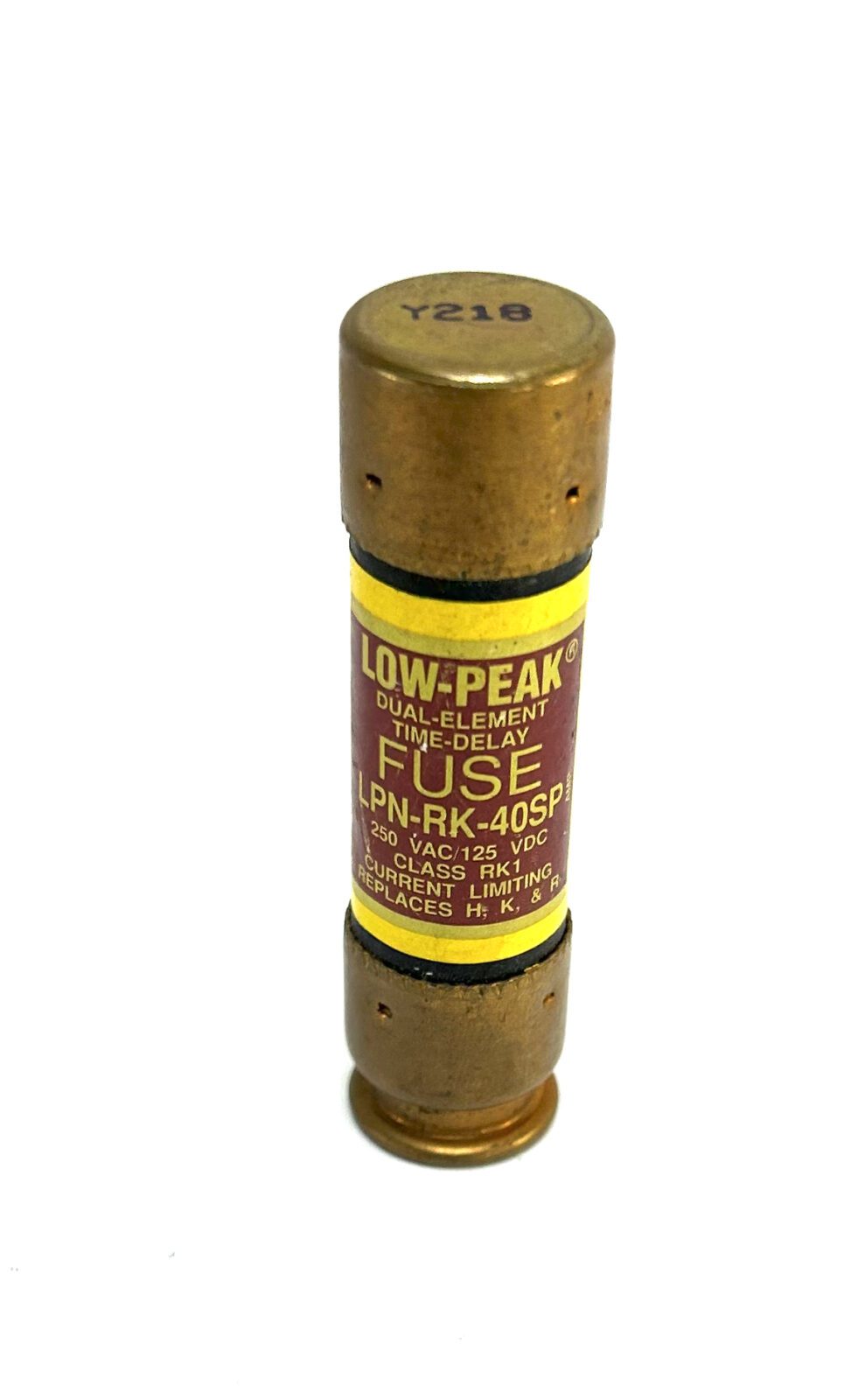

LPN-RK-40SP is a 40 amp, 250 volt AC Class RK1 time-delay dual element fuse from Eaton Bussmann series designed for reliable circuit protection.This fuse features current-limiting capability with a 300 kA interrupt rating at 250 VAC and 100 kA at 125 VDC, providing high inrush current motor protection and long time-delay response. It is non-indicating and has ferrule end connections, suitable for use in industrial and commercial electrical systems.
- Amperage Rating: 40 A
- Voltage Rating: 250 VAC, 125 VDC
- Class: RK1
- Fuse Type: Time Delay, Dual Element
- Interrupt Rating: 300 kA at 250 VAC, 100 kA at 125 VDC
- Connection: Ferrule end x ferrule end
- Non-indicating fuse
- Physical Size: 0.81" x 3"
- Current Limiting for maximum short circuit protection
- High inrush current motor protection

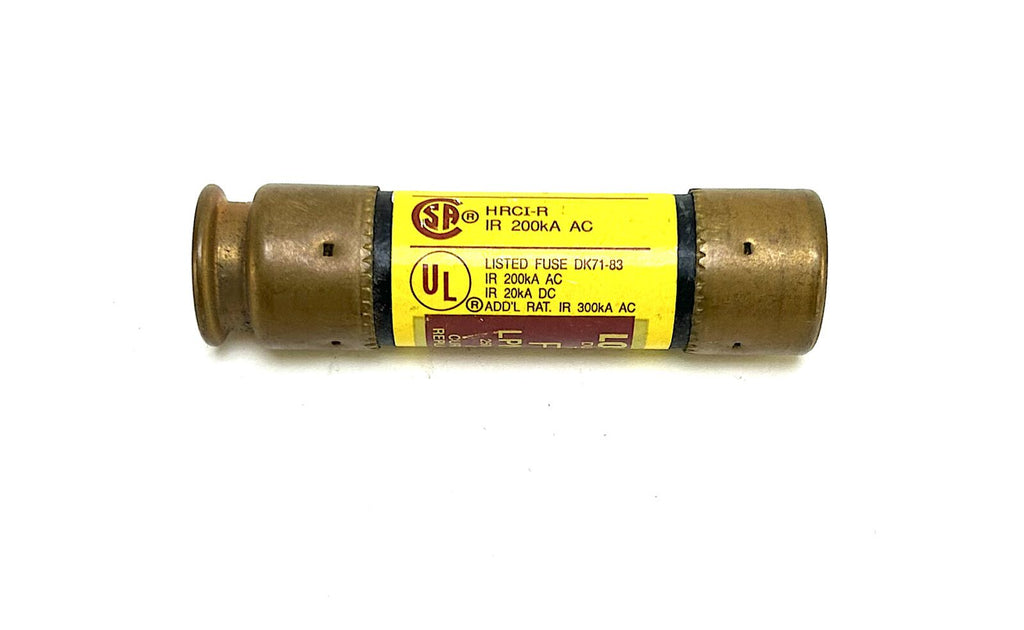

- Certifications: UL Listed, CSA Certified, CE Marked
Specifications
- Part Number: LPNRK40SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 40
- AIC rating : 300kA@250V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 785901754114
- Country of Origin : United States
- Weight : 1
