LPN-RK-35SP - Cooper Bussmann 35A 250V AC Class RK1 Time-Delay Dual Element Fuse

LPNRK35SP

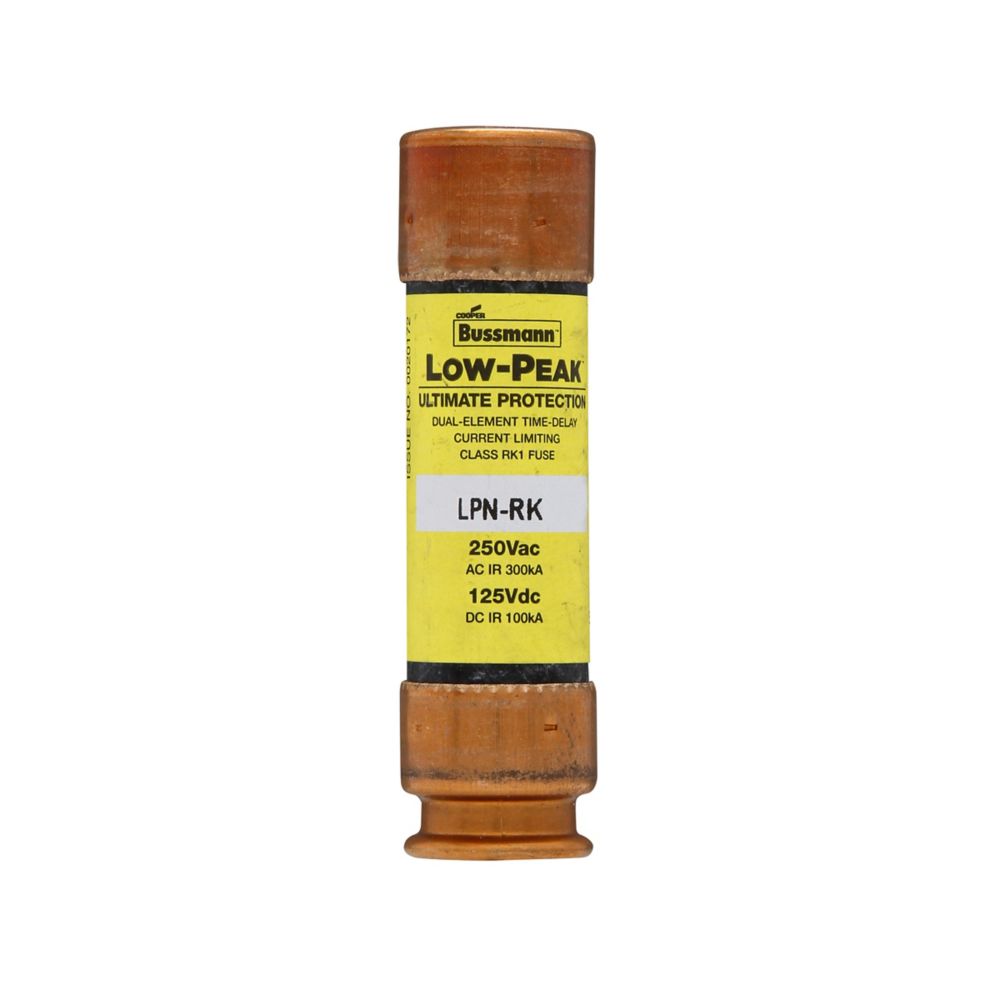

LPN-RK-35SP is a Cooper Bussmann 35 Amp, 250 Volt AC Class RK1 Low-Peak time-delay dual element fuse designed for reliable circuit protection.

This fuse features a 300,000 AIC interrupting rating at 250VAC and 100,000 AIC at 125VDC, providing high short circuit current protection. It has a physical size of 0.81" x 3", offers current limiting for maximum short circuit protection, and supports high inrush current motor protection. The fuse is UL Listed Special Purpose (Guide JFHR, File E56412) and CSA Certified (Class 1422-02, File 53787). It is a dual element, time-delay fuse with a minimum 10-second delay, suitable for feeder, branch circuits, transformers, and motor protection applications.

Key Specifications
• Amperage: 35 Amps
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 300,000 AIC @ 250VAC, 100,000 AIC @ 125VDC
• Fuse Class: RK1
• Fuse Type: Low-Peak, Time-Delay, Dual Element
• Physical Size: 0.81" x 3"
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class 1422-02, File 53787
• Current Limiting for Short Circuit Protection
• High Inrush Current Motor Protection
• Non-indicating Fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPNRK35SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Voltage : 250
• Amperage : 35
• AIC rating : 300kA@250V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• Weight : 5.19
