LPNRK15SP - Eaton LPN-RK 15A 250V Class RK1 Time-Delay Dual Element Fuse

LPNRK15SP

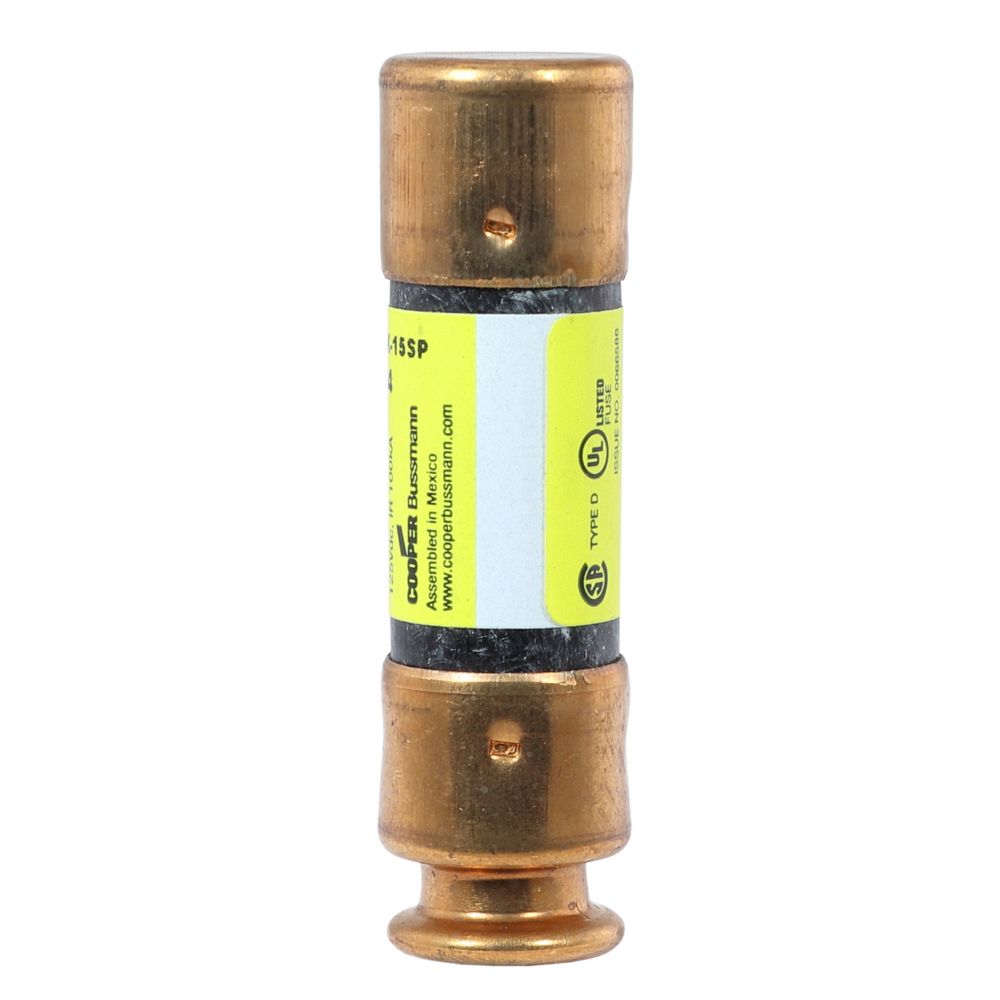

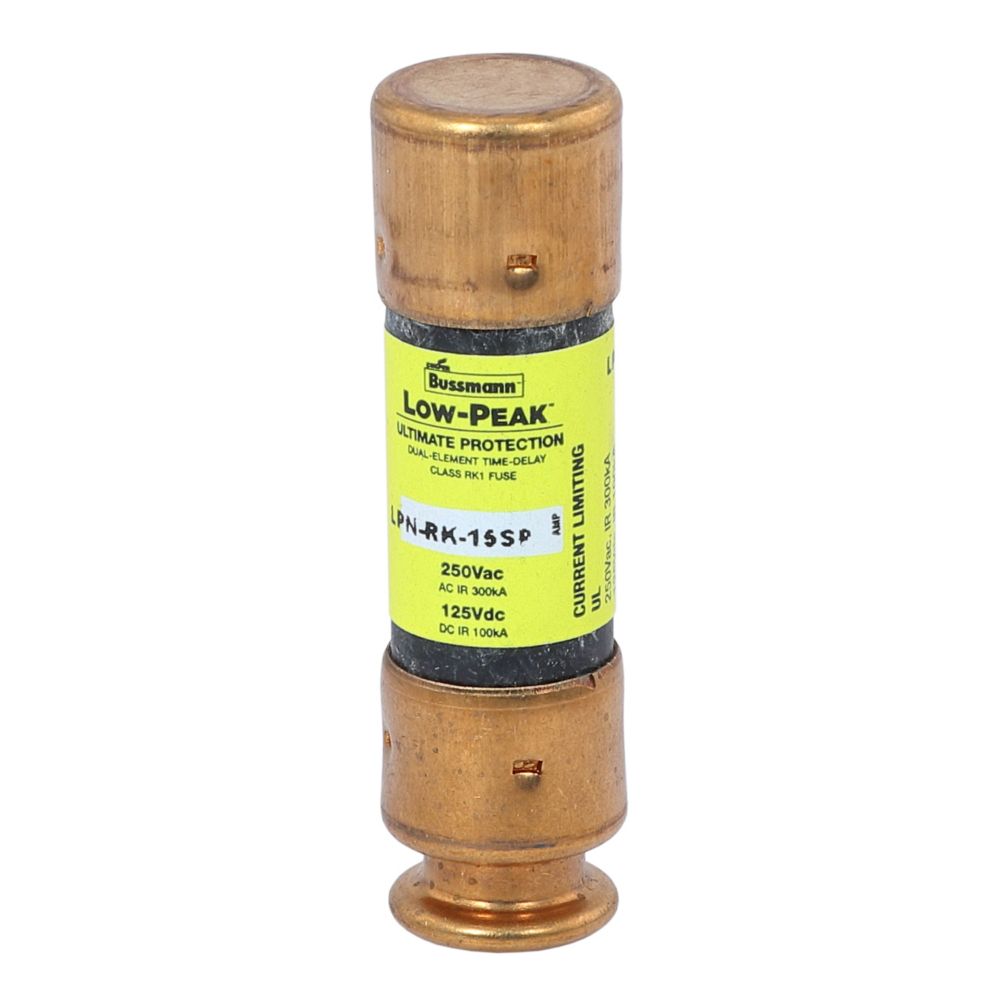

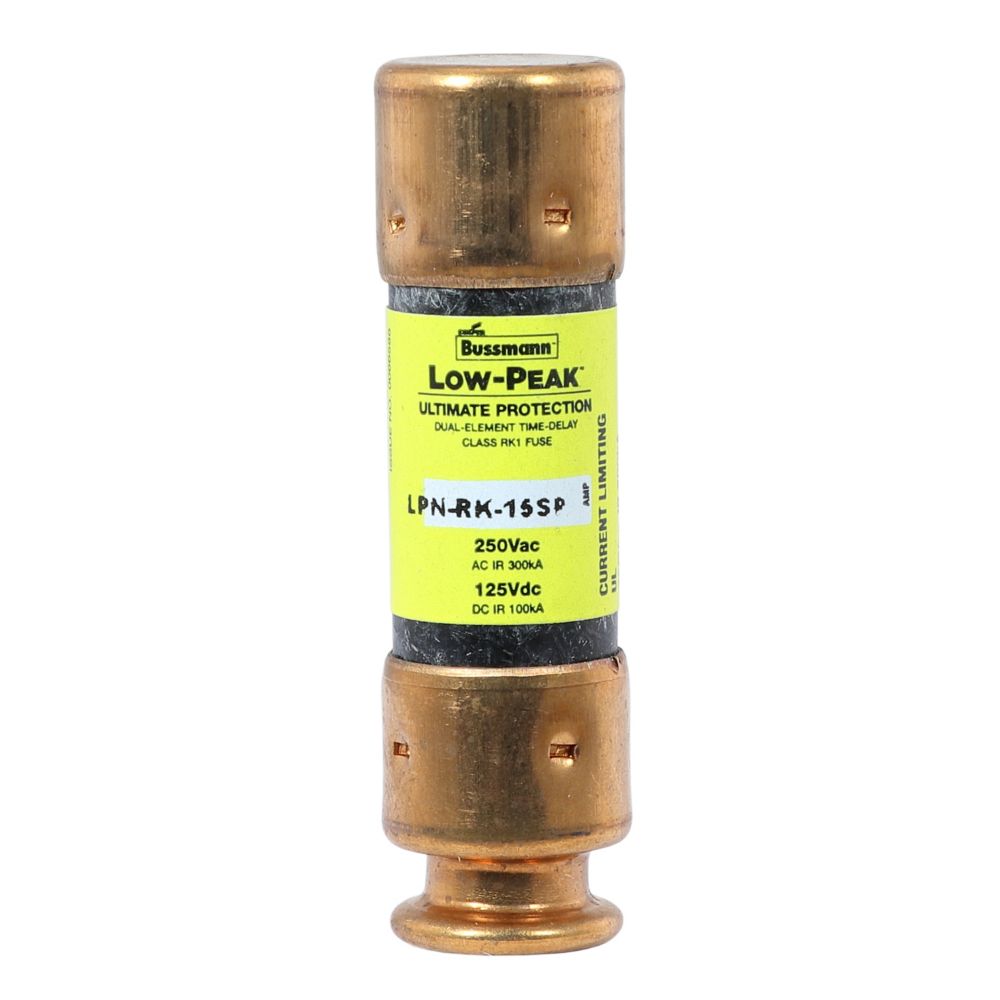

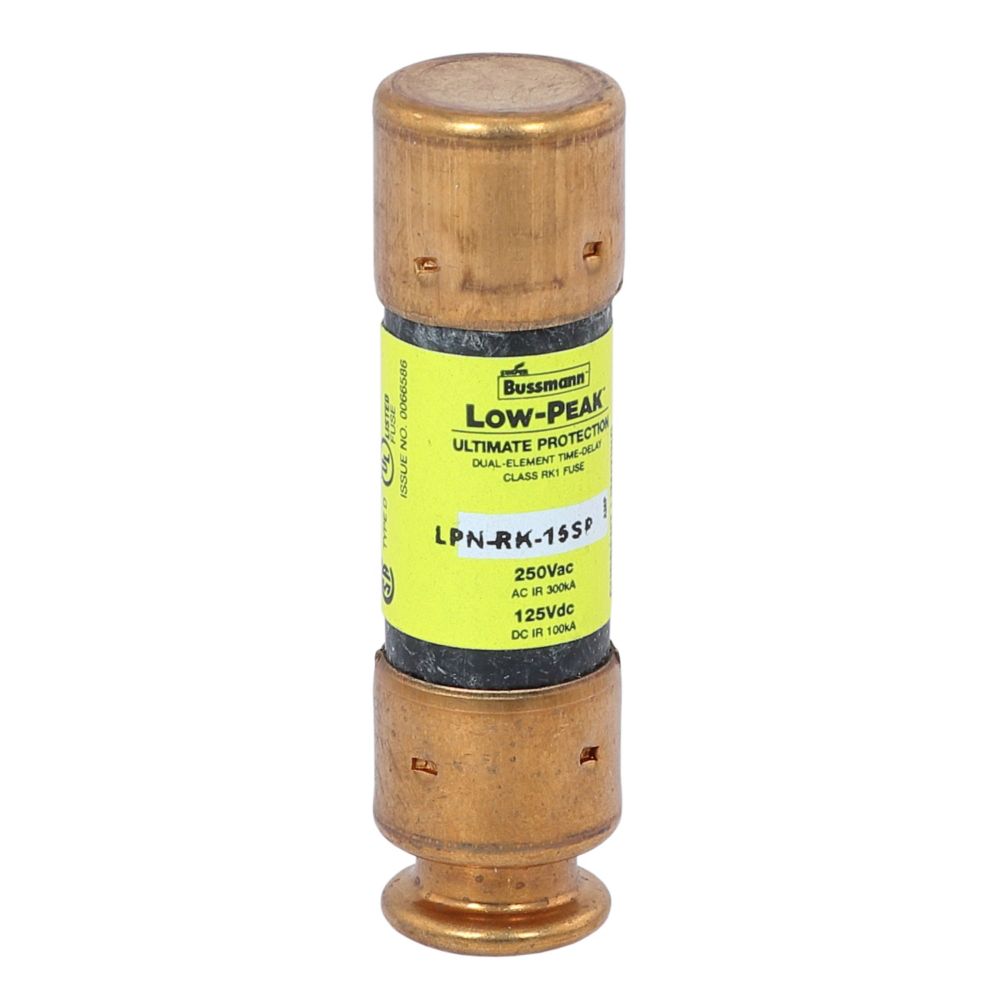

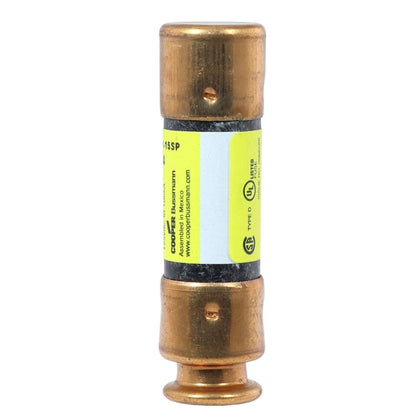

LPNRK15SP is an Eaton Bussmann Series Class RK1 time-delay, dual-element, current-limiting fuse rated for 15 amperes at 250 volts AC. This Low-Peak fuse provides fast short-circuit protection with a 300 kA interrupting rating and is UL Listed and CSA Certified for reliable performance in feeder circuits, branch circuits, transformers, motors, solenoids, and general purpose applications. The dual-element design delivers time-delay protection with a minimum 10-second delay at 500% of rated current, allowing selective coordination and permitting 130% FLA sizing for backup motor protection. Current-limitation technology protects downstream components against damaging thermal and magnetic effects of short-circuit currents while reducing existing fuse inventory by up to 33%.

• Amperage: 15 A
• Voltage: 250 Vac
• Class: RK1
• Type: Dual Element, Time-Delay
• Interrupting Rating: 300 kA
• Physical Size: 0.56 inch x 2 inch
• Time-Delay: Minimum 10 seconds at 500% rated current
• Certifications: UL Listed, CSA Certified
• Current-Limiting: Yes
• Non-Indicating: Standard configuration

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPNRK15SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 15
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 785901182764
• GTIN : 00785901182764
• Country of Origin : United States
• Dimensions : Depth 33.35 in (84.7 cm) Width 20.51 in (52.1 cm) Height 58.46 in (148.5 cm)
• Weight : 1
