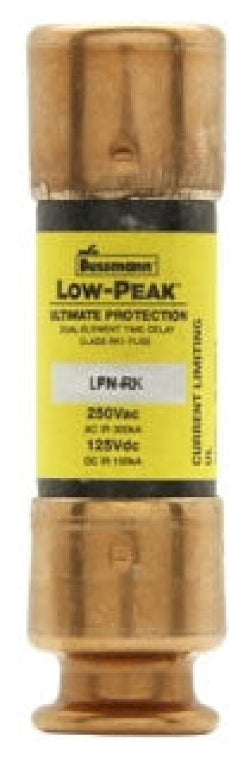

LPN-RK-9SP - Eaton 9A 250VAC Dual Element Time-Delay Low Peak Fuse Class RK1

LPN-RK-9SP

LPN-RK-9SP is a 9 amp, 250 volt AC dual element, time-delay Low Peak fuse from Eaton's Class RK1 series.This fuse features a cartridge design requiring a fuse holder, with a 100 kA interrupt rating and a minimum 8-second time delay at 500% overload. It provides current-limiting protection with dual-element technology for fast short-circuit interruption and enhanced equipment protection. The fuse measures 0.56 inches in diameter by 2.00 inches in length and is UL Class RK1 rated for industrial applications.

Key Specifications
• Amperage: 9 A
• Voltage Rating: 250 VAC, 125 VDC
• Interrupt Rating: 100 kAIC
• Fuse Type: Cartridge, Dual Element, Time-Delay
• Class: RK1
• Mounting Type: Requires fuse holder
• Physical Size: 0.56 in diameter x 2.00 in length
• Response Time: Minimum 8 seconds at 500% overload
• Current Limiting: Yes
• Series: Low Peak
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPN-RK-9SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 9
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712538299
• GTIN : 00051712538299
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
