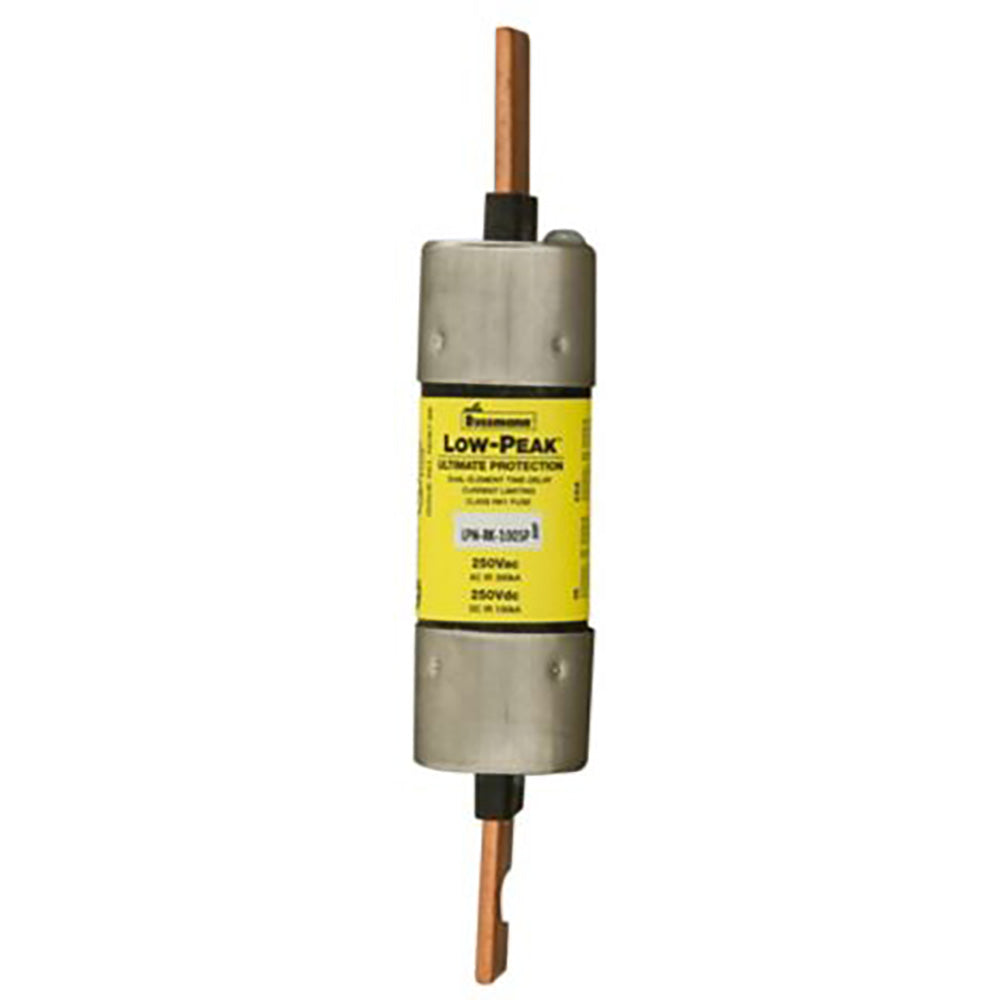

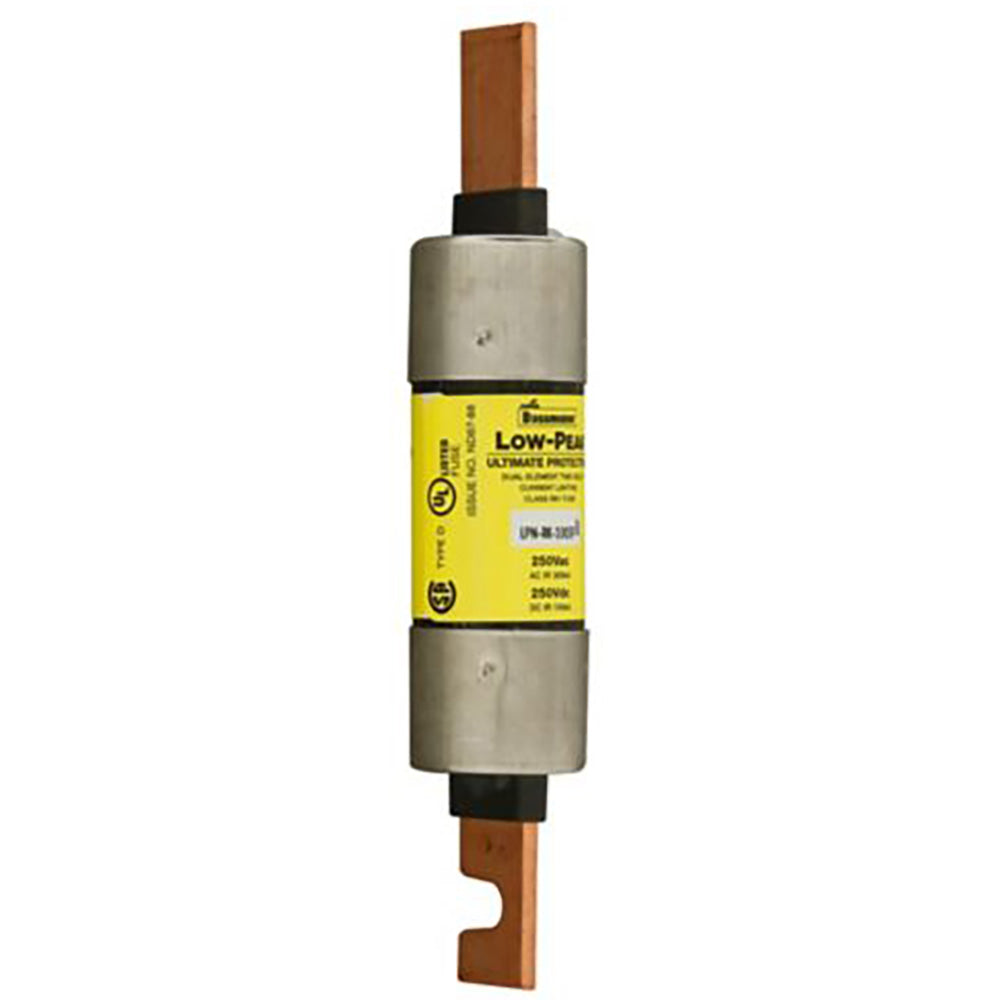

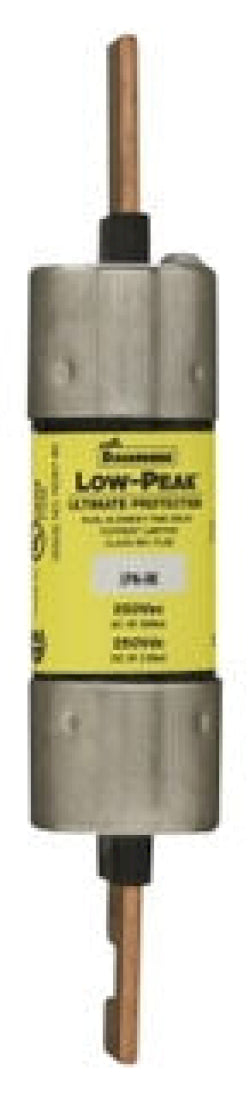

LPN-RK-90SP - Eaton Bussmann 90A 250V Dual Element Time Delay Class RK1 Fuse

LPN-RK-90SP

LPN-RK-90SP is a 90 amp, 250 volt AC/DC dual element time-delay fuse from Eaton Bussmann series designed for reliable circuit protection.This Class RK1 fuse features a current-limiting design with a 300 kA interrupt rating at 250 Vac and 100 kA at 250 Vdc. It has a blade end x blade end connection, non-indicating status, and an electrically isolated end cap. The fuse measures 1.1 inches in diameter and 5.88 inches in length, suitable for feeder, branch circuits, motor, transformer, and general-purpose protection.

Key Specifications
• Amperage Rating: 90 A
• Voltage Rating: 250 Vac / 250 Vdc
• Interrupt Rating: 300 kAIC at 250 Vac, 100 kAIC at 250 Vdc
• Fuse Type: Dual Element, Time Delay, Current Limiting
• Class: RK1
• Connection: Blade end x blade end
• Fuse Indicator: Non-indicating
• Physical Size: 1.1 in diameter x 5.88 in length
• Special Features: Electrically isolated end cap
• Certifications: RoHS Compliant, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-90SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 90
• AIC rating : 300kA@250V
• Diameter : 1.1
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538442
• GTIN : 00051712538442
• Country of Origin : Mexico
• Dimensions : 5.88 in x 1.1 in x 1.1 in (Length/Depth x Height x Width)
• Weight : 1.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
