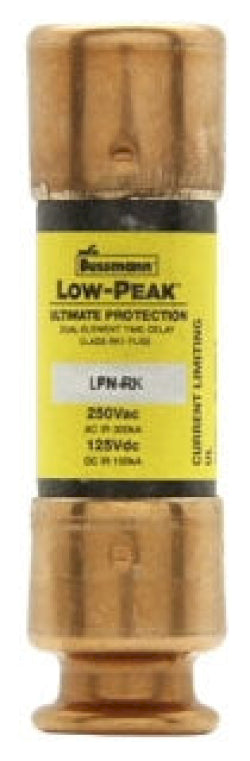

LPN-RK-8SP - Bussmann Eaton 8A 250V Time Delay Low-Peak Fuse Class RK1 Dual Element

LPN-RK-8SP

LPN-RK-8SP is a Bussmann Eaton 8 ampere, 250 volt AC time delay Low-Peak fuse designed for reliable circuit protection.This Class RK1 dual element fuse features current limiting and time-delay characteristics, providing enhanced protection against short circuits and transient overloads. It is rated for 250 VAC and 125 VDC with a physical size of 0.56 inch diameter by 2 inches length. The fuse is UL listed and suitable for use in a variety of industrial and commercial applications requiring a midget fuse with a high interrupt rating.

Key Specifications
• Amperage: 8 Amps
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Type: Time Delay (Slow Blow)
• Fuse Class: RK1
• Dual Element, Current Limiting
• Physical Size: 0.56 inch diameter x 2 inch length
• Interrupt Rating: High (per UL Class RK1)
• Mounting Type: Cartridge (1 Barrel)
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPN-RK-8SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 8
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712538282
• GTIN : 00051712538282
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
