LPN-RK-80SP - Eaton 80A 250VAC/DC Class RK1 Dual Element Time Delay Fuse

LPN-RK-80SP

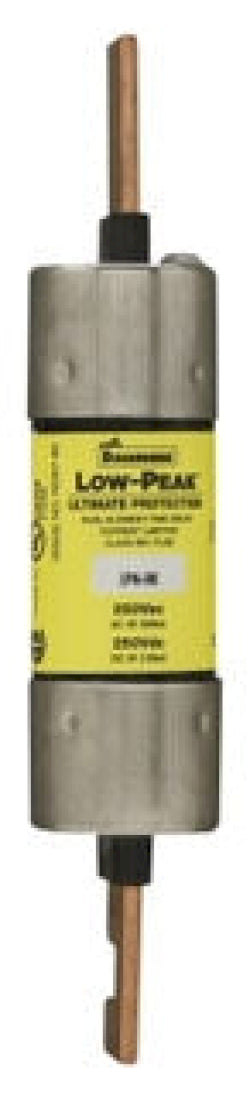

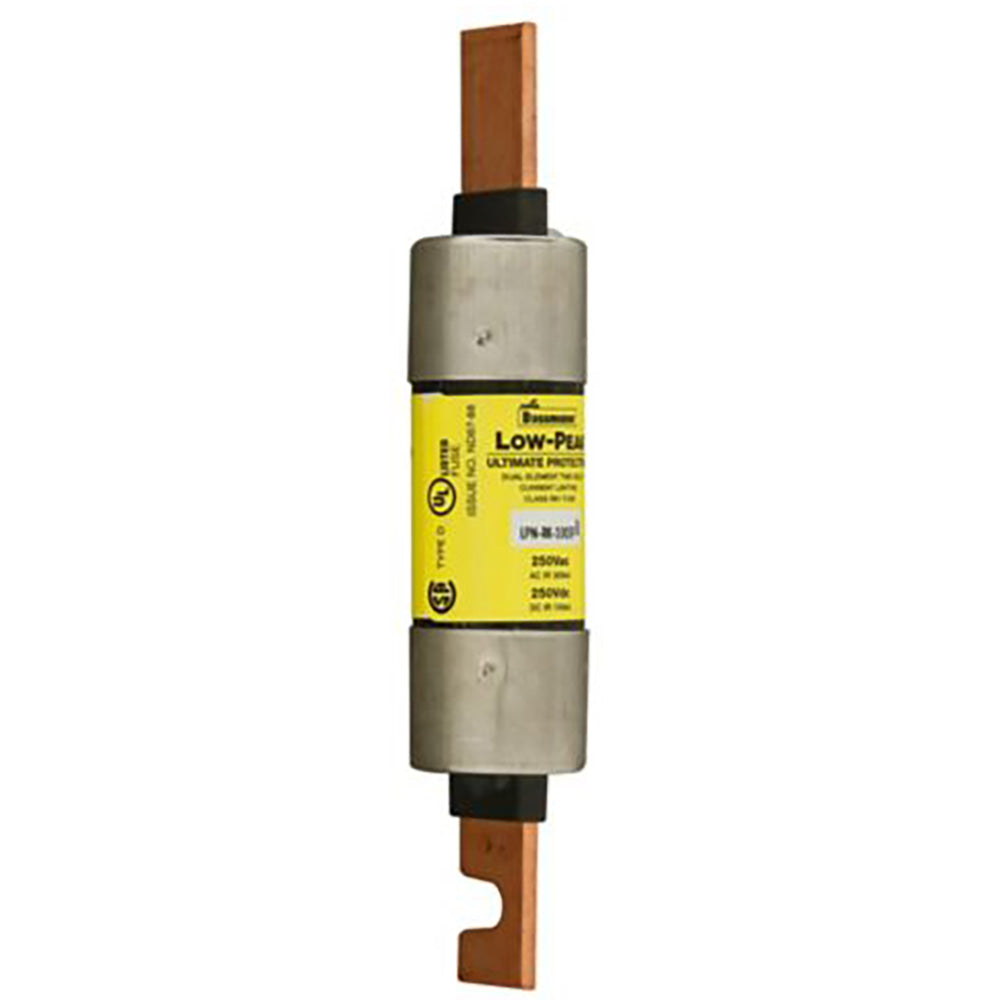

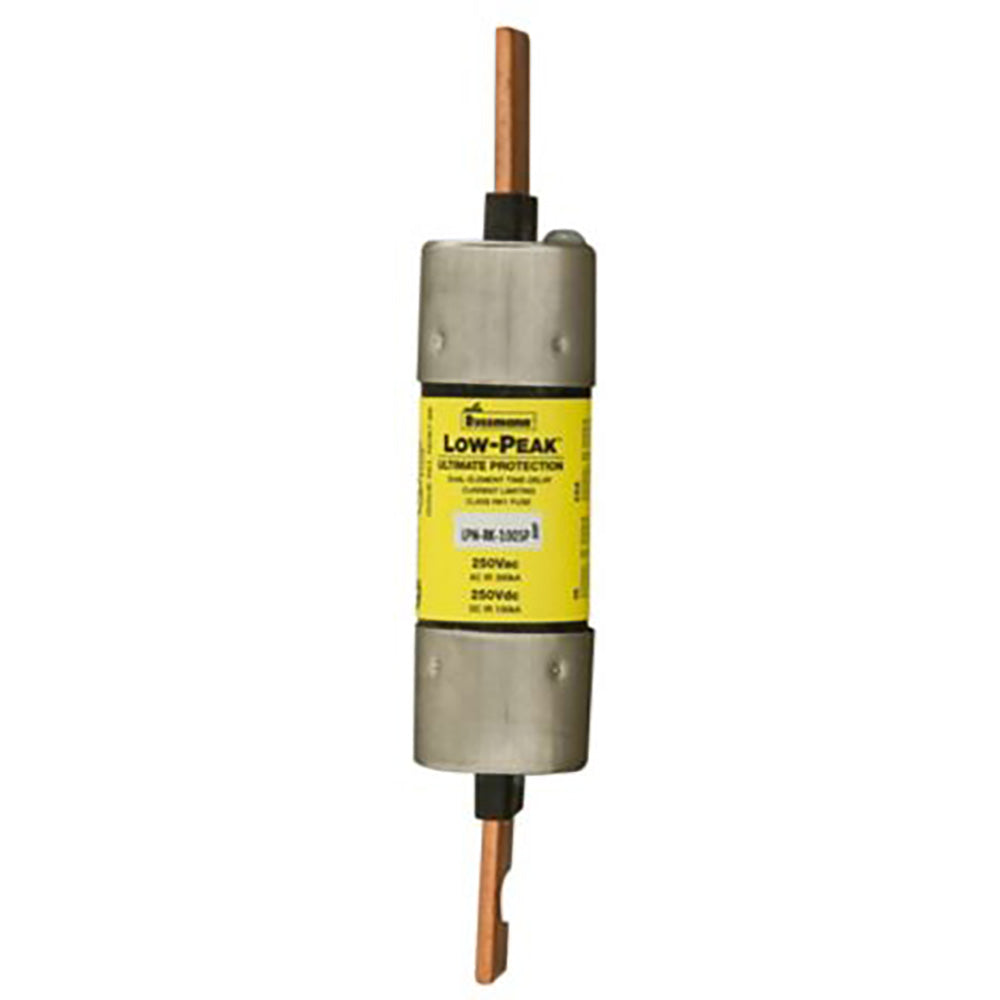

LPN-RK-80SP is an Eaton Bussmann Series Class RK1 dual element, time-delay, current-limiting fuse rated for 80A at 250VAC and 250VDC. This fuse provides reliable protection for motors, transformers, and general purpose circuits with high interrupting capacity. Designed for applications requiring robust short-circuit protection, the LPN-RK-80SP features a dual element construction for time-delay performance and current-limiting action. It is UL Listed and CSA Certified, ensuring compliance with industry safety standards. The fuse is non-indicating and features electrically isolated end caps for added safety.

• Amperage Rating: 80A
• Voltage Rating: 250VAC, 250VDC
• Fuse Class: Class RK1
• Fuse Type: Dual Element, Time Delay
• Interrupt Rating: 300kAIC at 250VAC, 100kAIC at 250VDC
• Mounting Type: Blade End x Blade End
• Series/Frame: LPN-RK
• Physical Size: 1.1" x 5.88"
• Weight: 0.32 lb
• Compliance: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Non-Indicating Fuse
• Carton Quantity: 5

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-80SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 80
• AIC rating : 300kA@250V
• Diameter : 1.1
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538435
• GTIN : 00051712538435
• Country of Origin : Mexico
• Dimensions : 5.88 in x 1.1 in x 1.1 in (Length/Depth x Height x Width)
• Weight : 0.32
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
