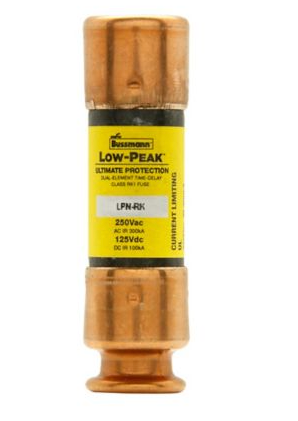

LPN-RK-8/10SP - Eaton Bussmann Low-Peak Time Delay Dual Element Class RK1 Fuse 8/10A 250VAC

LPN-RK-8/10SP

LPN-RK-8/10SP is an Eaton Bussmann series Low-Peak time-delay, dual-element, current-limiting fuse designed for motor protection and circuit backup applications. This Class RK1 fuse provides consistent performance with a minimum 8-second response time at 500% of rated current, making it ideal for selective coordination in electrical systems. The cartridge-style ferrule terminal design ensures reliable holder mounting in standard fuse blocks and equipment. Key Specifications

• Amperage Rating: 8/10 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 300 kA at 250 VAC, 100 kA at 125 VDC
• Fuse Type: Time Delay, Current Limiting
• Class: RK1
• Response Time: 8 seconds minimum at 500% rated current
• Number of Elements: Dual Element
• Connection: Ferrule end x ferrule end
• Body Style: Cartridge
• Fuse Indicator: Non-Indicating
• Certifications: UL Listed, CSA Certified, CE Marked
• Packaging: Standard carton quantity of 10

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-8/10SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 8
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 05171253807
• GTIN : 00051712538077
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
