LPN-RK-70SP - Bussmann 70 Amp 250 Volt AC Class RK1 Time Delay Fuse

LPN-RK-70SP

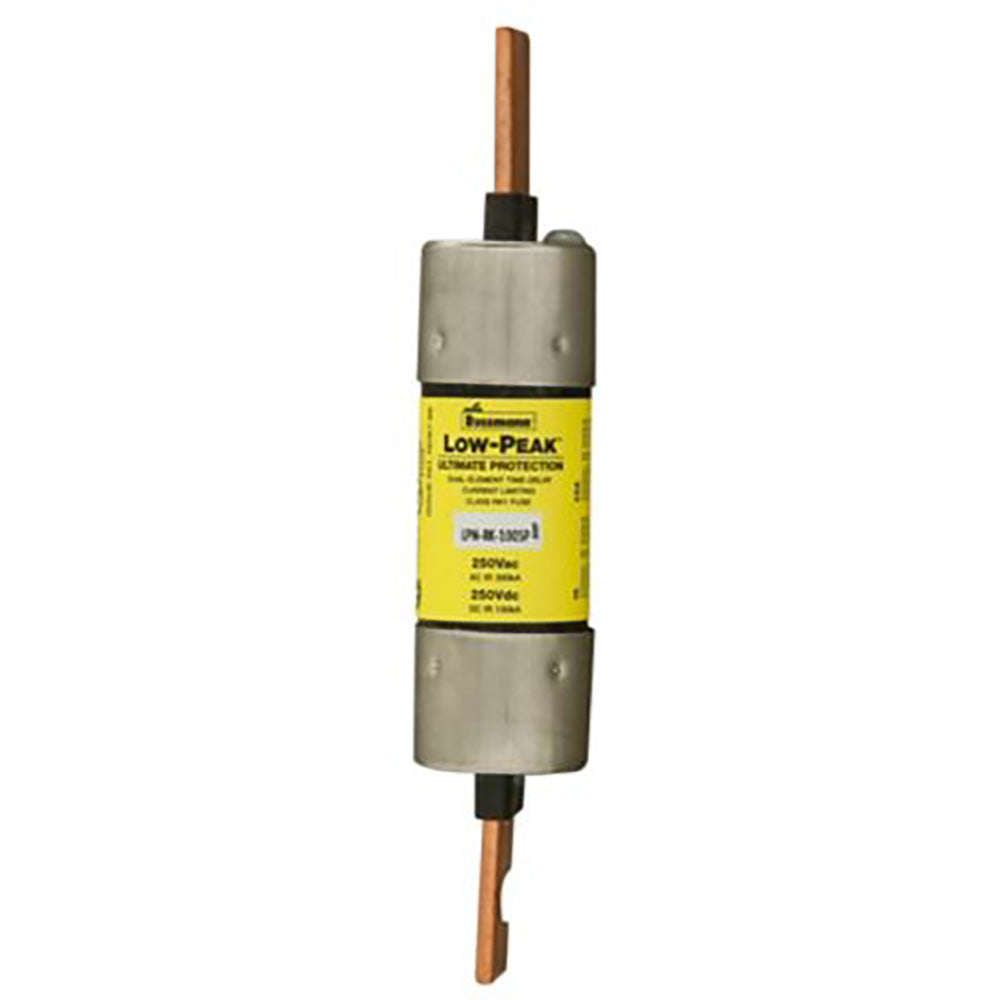

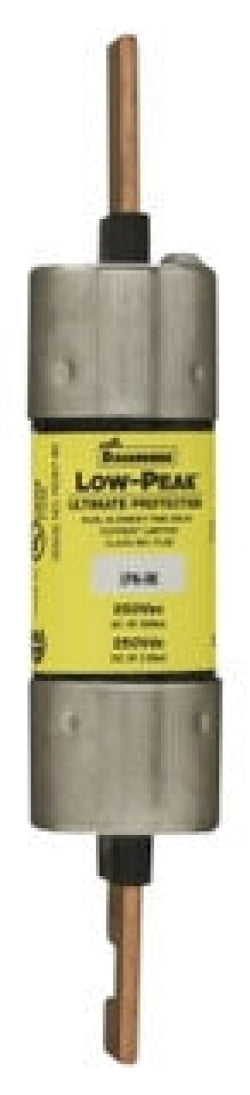

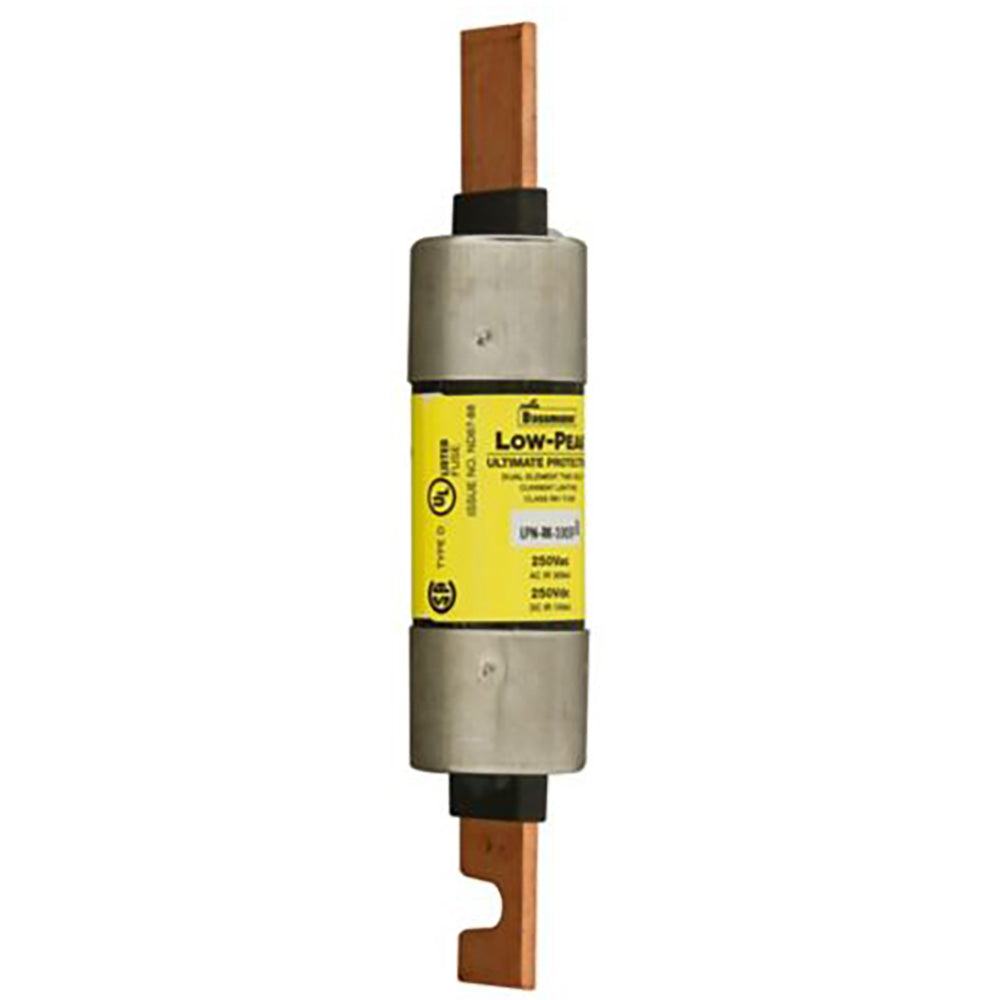

LPN-RK-70SP is a 70 Amp, 250 Volt AC Class RK1 Low-Peak time delay fuse designed for high inrush current motor protection and maximum short circuit protection.This dual element, current limiting fuse features a minimum 10-second time delay, blade end x blade end mounting, and an interrupting rating of 300,000 AIC RMS at 250 VAC and 100,000 AIC at 250 VDC. It measures 1.1 inches by 5.88 inches and is UL Listed, CSA Certified, and CE marked for safety compliance.

Key Specifications
• Amperage: 70 Amps
• Voltage Rating: 250 Volts AC/DC
• Fuse Class: RK1
• Time Delay: Minimum 10 seconds
• Fuse Type: Dual Element, Current Limiting
• Mounting Type: Blade end x blade end
• Interrupting Rating: 300,000 AIC RMS @ 250 VAC, 100,000 AIC @ 250 VDC
• Physical Size: 1.1" x 5.88"
• Certifications: UL Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-70SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 70
• AIC rating : 300kA@250V
• Diameter : 1.1
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538428
• GTIN : 00051712538428
• Country of Origin : Mexico
• Dimensions : 5.88 in x 1.1 in x 1.1 in (Length/Depth x Height x Width)
• Weight : 1.5 lb
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
