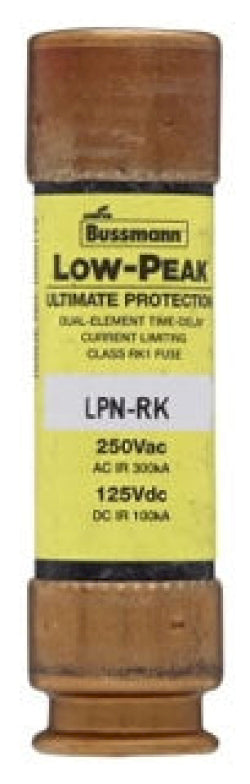

LPN-RK-60SP - Eaton Bussmann 60A 250V Class RK1 Time Delay Dual Element Fuse

LPN-RK-60SP

This fuse features a current-limiting design with dual elements for enhanced protection and a non-indicating ferrule end connection. It has an interrupting rating of 300 kA at 250 VAC and 100 kA at 125 VDC, suitable for industrial and commercial applications requiring reliable overload and short-circuit protection. The fuse measures approximately 0.81 inches in diameter and 3 inches in length, and is CE marked for compliance.

Key Specifications
• Amperage Rating: 60 A
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Class: RK1
• Fuse Type: Time Delay, Dual Element, Current Limiting
• Interrupting Rating: 300 kA at 250 VAC, 100 kA at 125 VDC
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Dimensions: 0.81 in diameter x 3 in length
• Response Time: 10 seconds at 500% overload
• Certifications: CE Marked
• Special Features: Electrically isolated end cap

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: LPN-RK-60SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 60
• AIC rating : 300kA@250V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712538411
• GTIN : 00051712538411
• Country of Origin : Mexico
• Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.2
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
