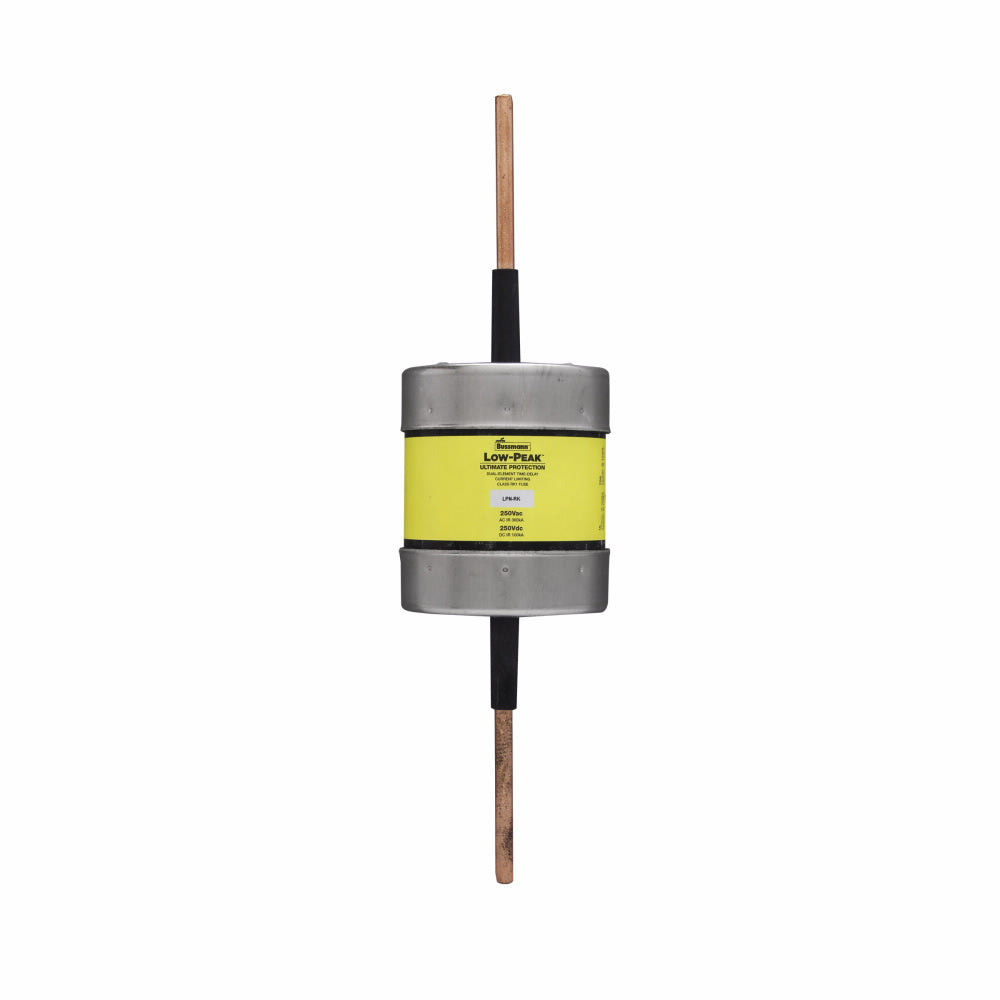

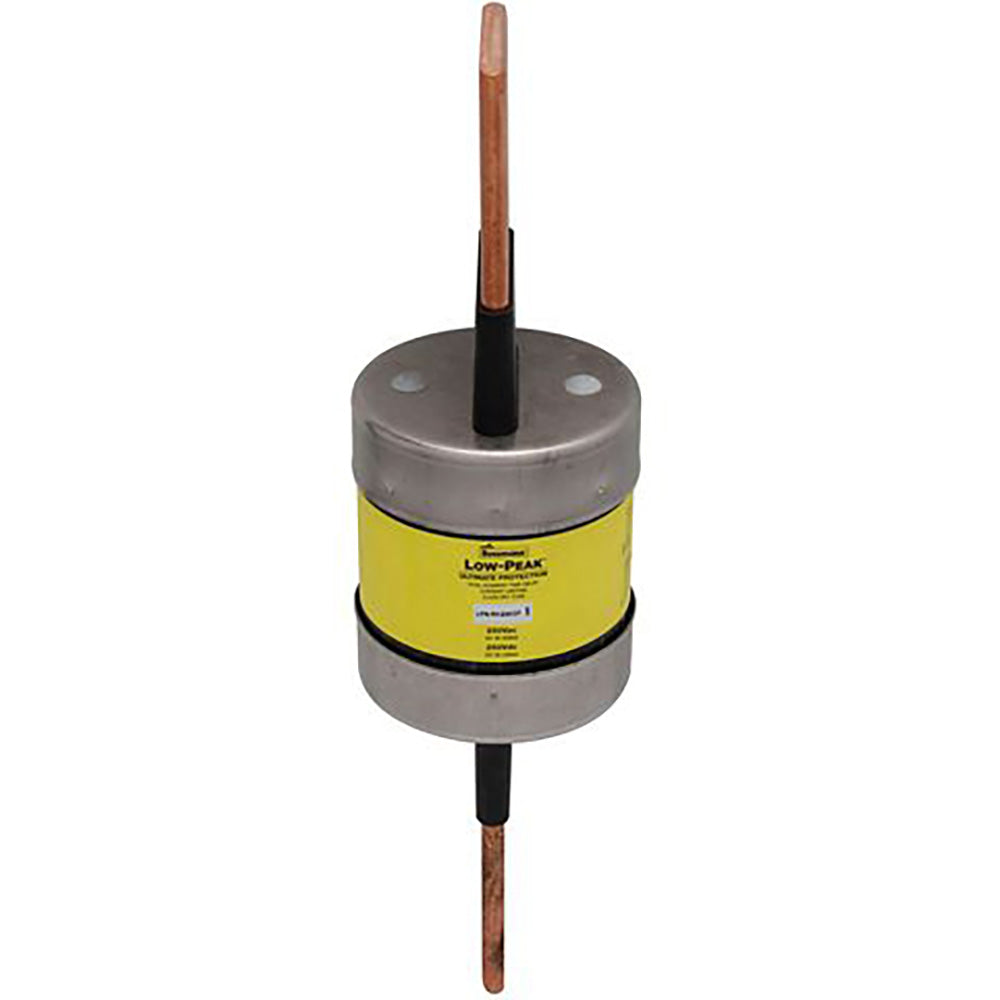

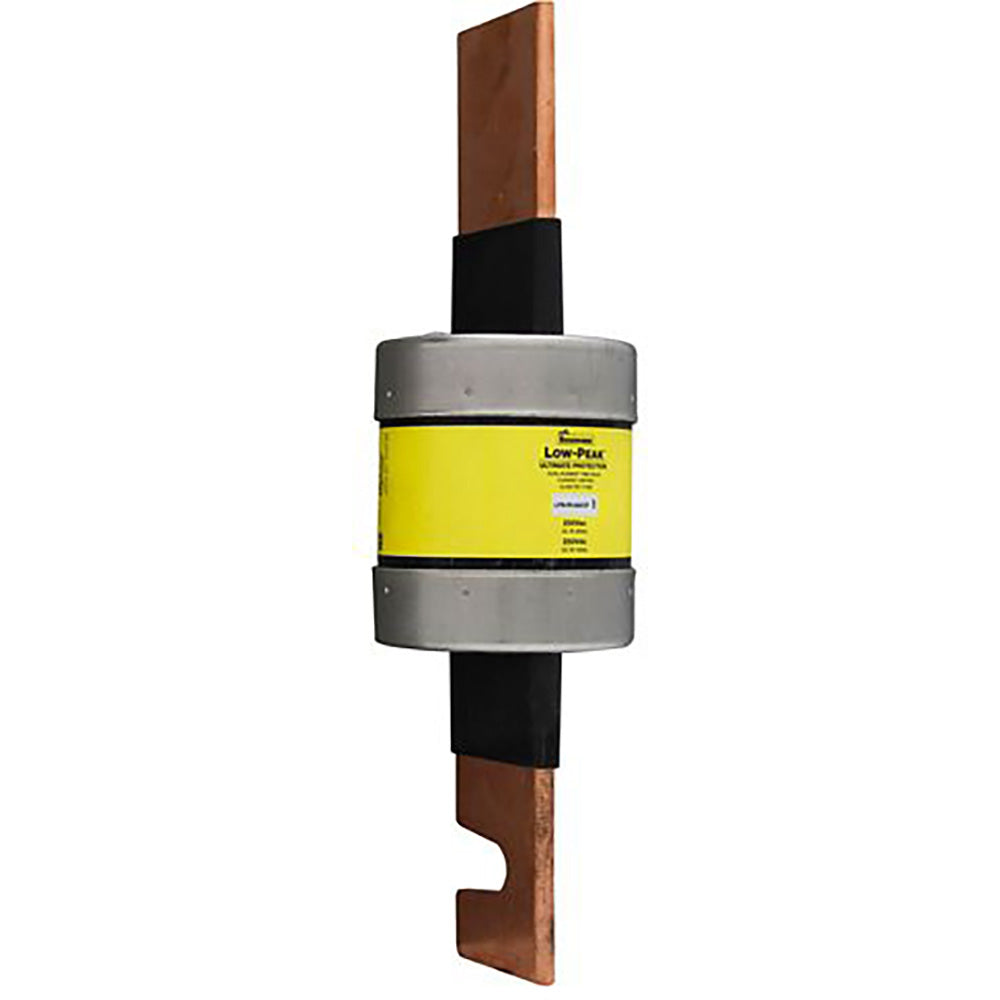

LPN-RK-600SP - Bussmann 600A 250V AC/DC Class RK1 Time Delay Dual Element Fuse

LPN-RK-600SP

LPN-RK-600SP is a Bussmann 600 Amp, 250 Volt AC/DC Class RK1 Low-Peak time delay fuse designed for high inrush current motor protection and current limiting.This dual element fuse features a 10-second minimum time delay, 300,000 AIC interrupt rating at 250 VAC, and 100,000 AIC at 250 VDC, providing reliable short circuit protection in industrial applications.

Key Specifications
• Amperage: 600 Amps
• Voltage Rating: 250 VAC / 250 VDC
• Fuse Class: RK1
• Time Delay: Minimum 10 seconds
• Fuse Type: Dual Element, Current Limiting
• Interrupt Rating: 300,000 AIC RMS @ 250 VAC, 100,000 AIC @ 250 VDC
• Physical Size: 2.88" x 10.38"
• Non-Indicating
• Certifications: UL Listed, CSA Certified, CE Marked
• Mounting Type: Blade end x blade end

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-600SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 600
• AIC rating : 300kA@250V
• Diameter : 2.88
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538589
• GTIN : 00051712538589
• Country of Origin : Mexico
• Dimensions : 10.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
• Weight : 3.25
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
