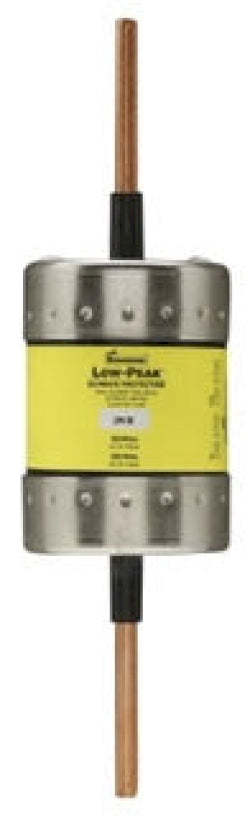

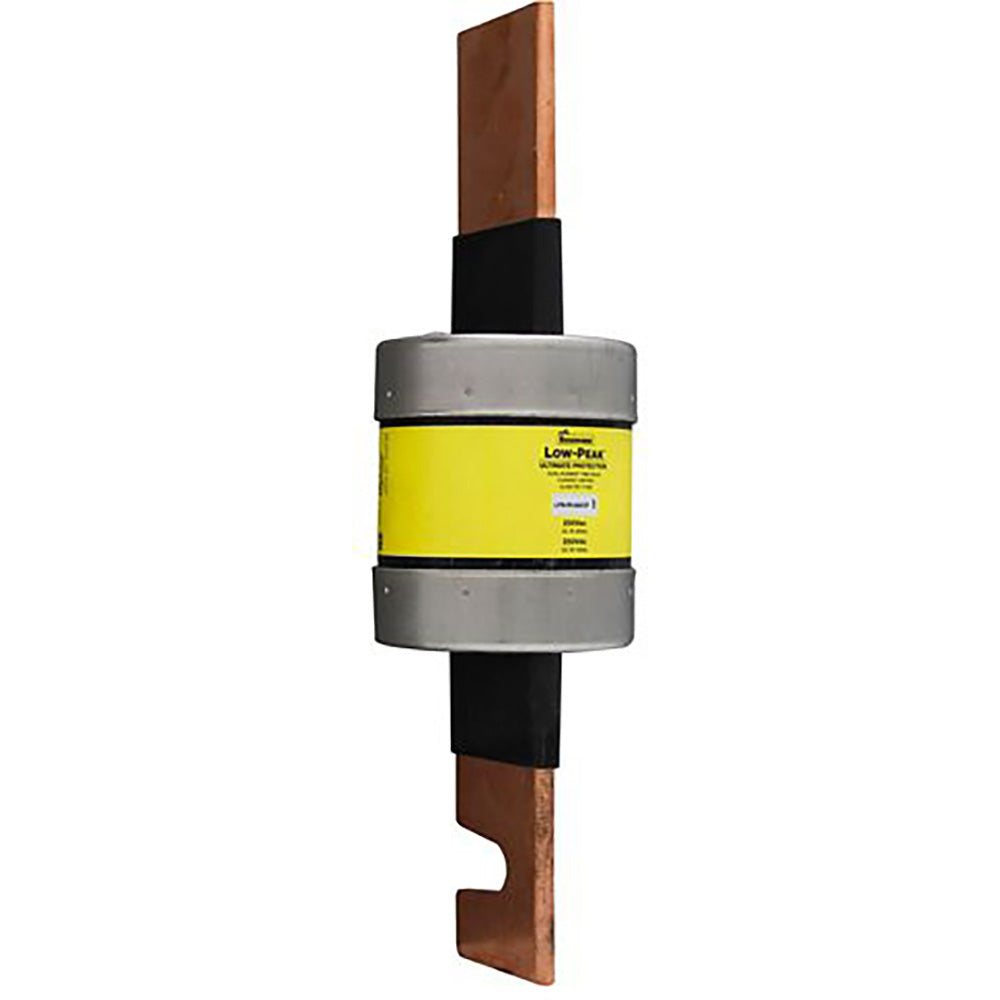

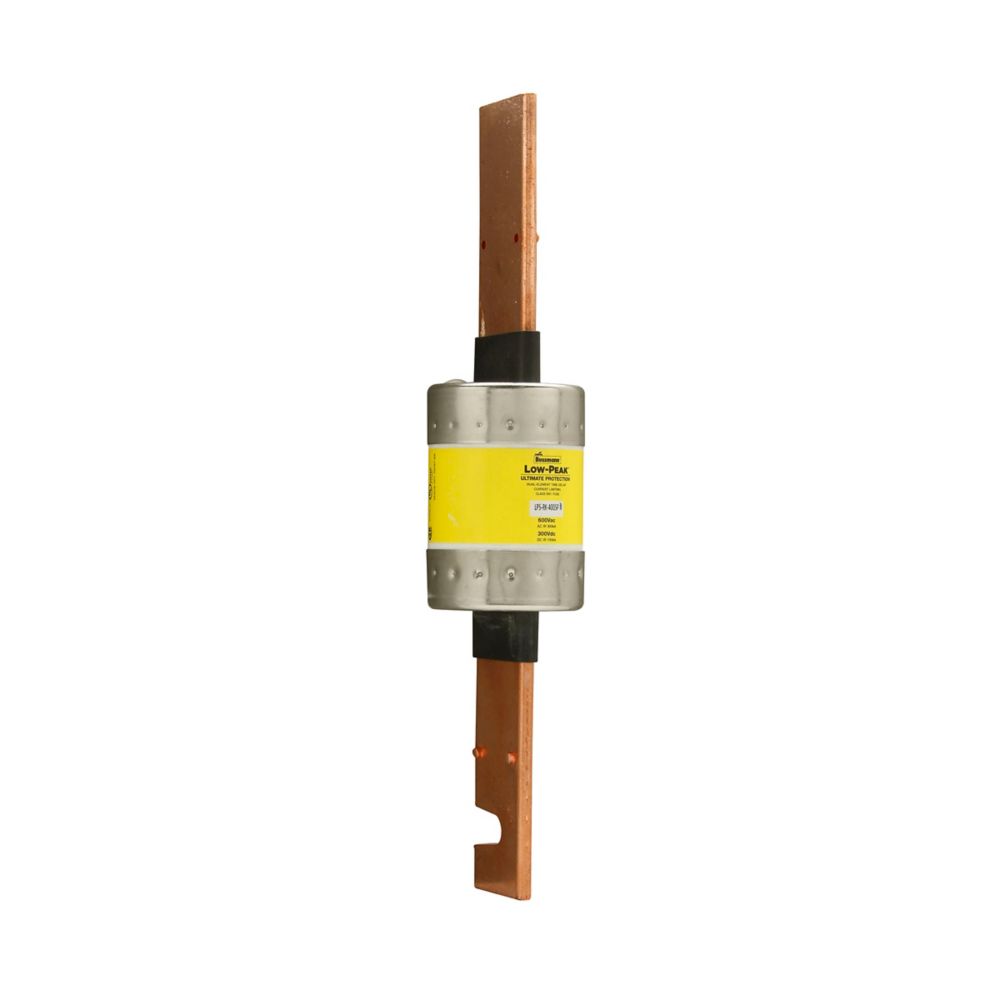

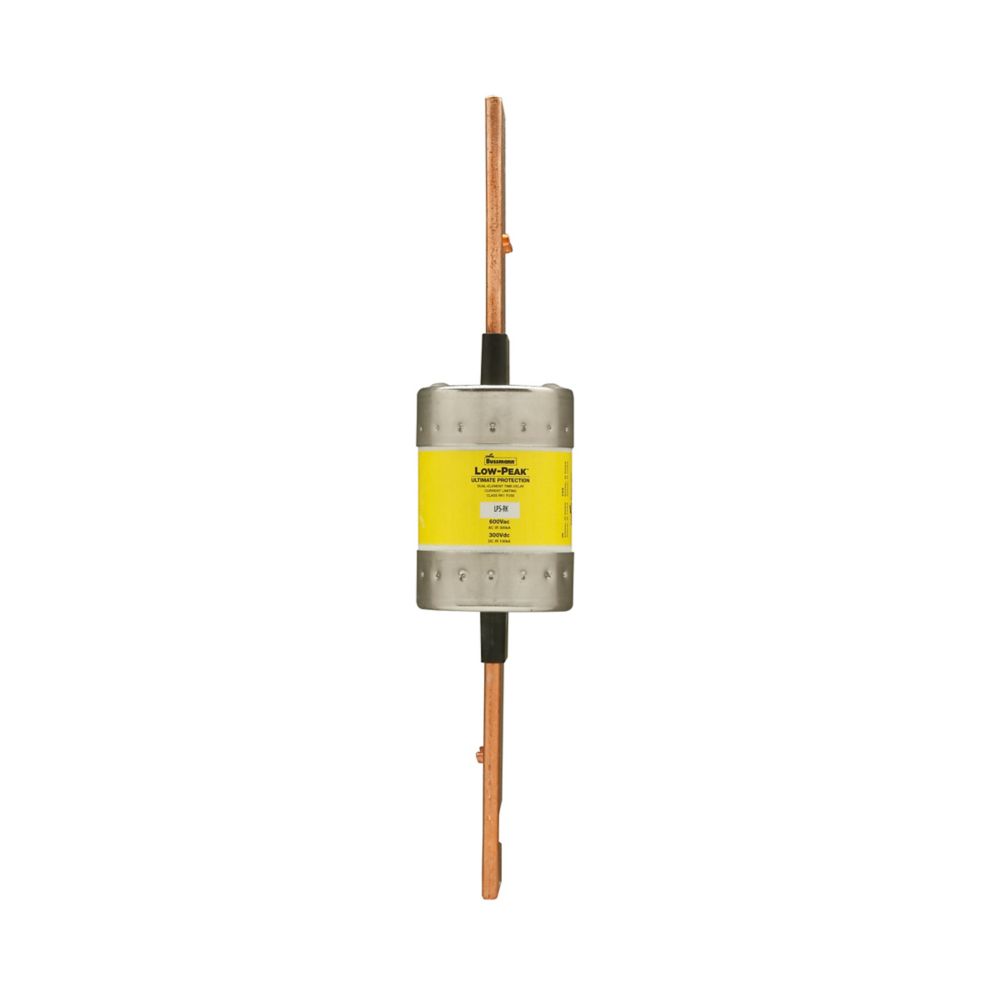

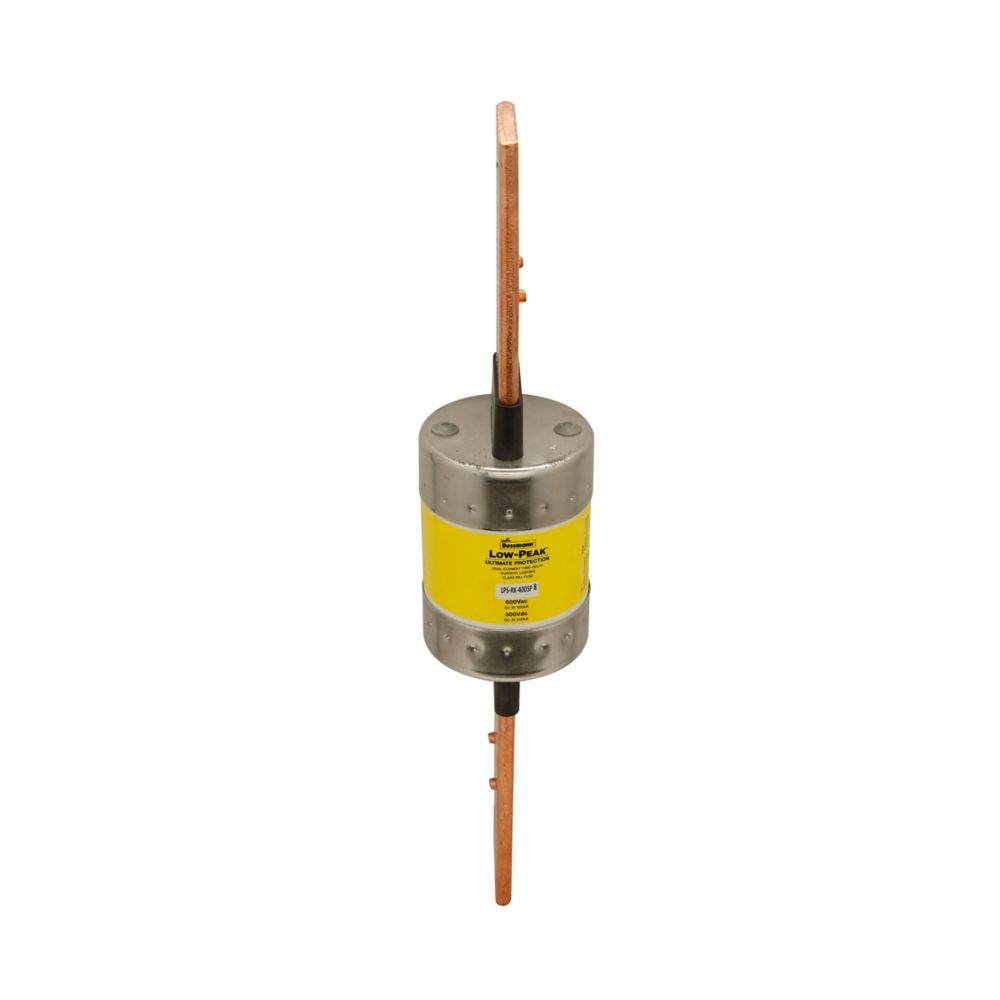

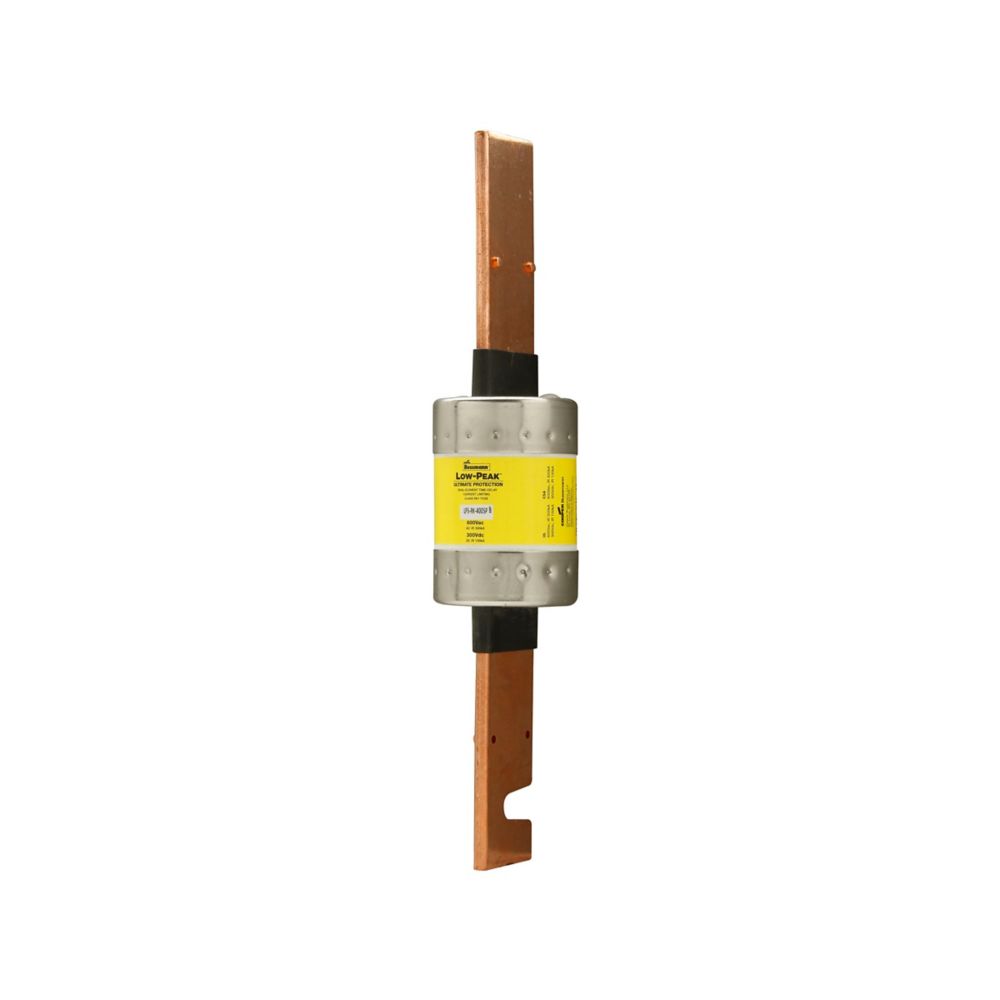

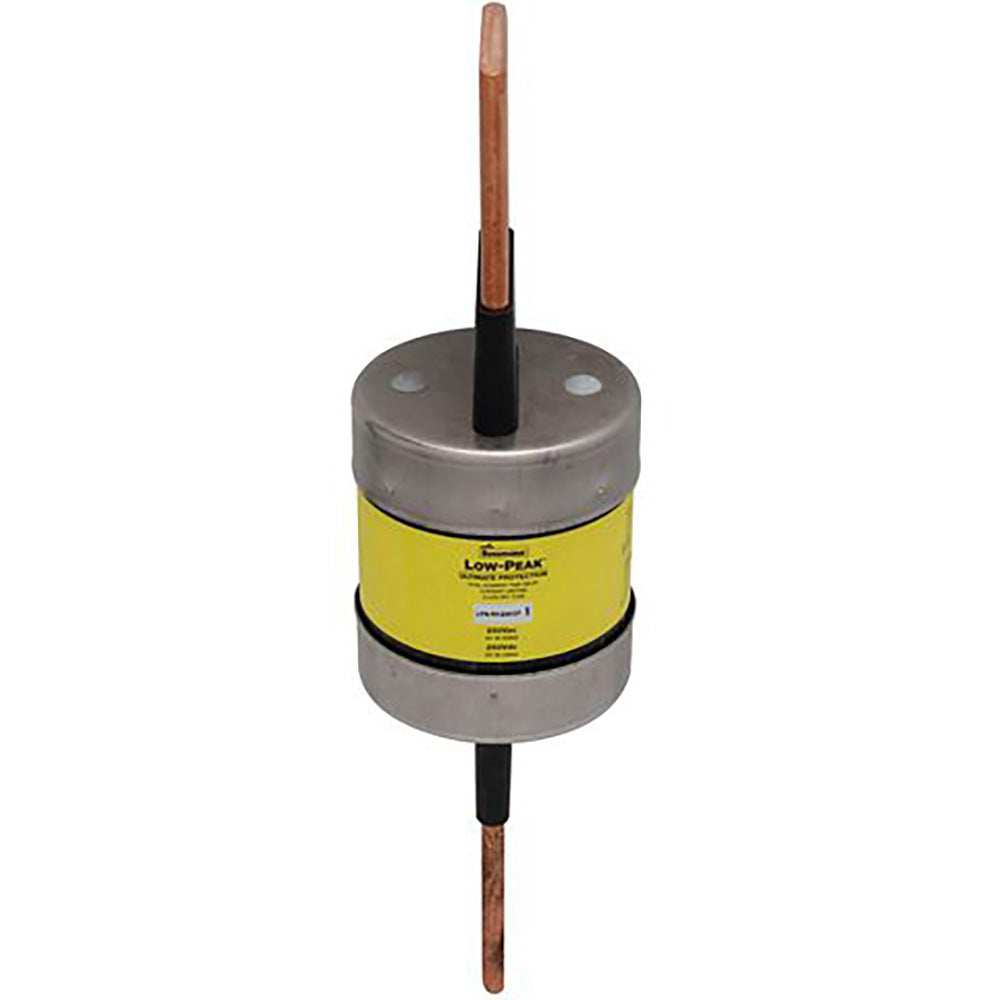

LPN-RK-500SP - Eaton Bussmann 500A 250V Class RK1 Time Delay Dual Element Fuse

LPN-RK-500SP

LPN-RK-500SP is a 500 amp, 250 volt AC/DC Class RK1 time delay dual-element fuse from Eaton Bussmann series designed for reliable circuit protection.This fuse features a current-limiting, time-delay design with dual elements for fast short-circuit protection and minimized nuisance blowing. It has a 300 kA interrupt rating at 250 VAC and 100 kA at 250 VDC, with blade end connections and an electrically isolated end cap. The fuse is non-indicating and CE marked with RoHS compliance.

Key Specifications
• Amperage Rating: 500 A
• Voltage Rating: 250 Vac / 250 Vdc
• Interrupt Rating: 300 kA at 250 Vac, 100 kA at 250 Vdc
• Fuse Type: Time delay, current limiting
• Number of Elements: Dual
• Class: RK1
• Connection Type: Blade end x blade end
• Fuse Indicator: Non-indicating
• Physical Size: 2.88 in x 10.38 in
• Certifications: CE Marked, RoHS Compliant
• Special Features: Electrically isolated end cap

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-500SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 500
• AIC rating : 300kA@250V
• Diameter : 2.88
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538572
• GTIN : 00051712538572
• Dimensions : 10.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
• Weight : 0.03
• Certification : Ul Listed Csa Certified Ce Marked
