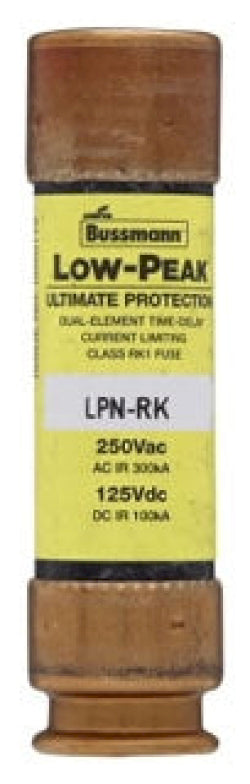

LPN-RK-45SP - Eaton Bussmann 45A 250V Class RK1 Time Delay Dual Element Fuse

LPN-RK-45SP

LPN-RK-45SP is a 45 Amp, 250 Volt AC Class RK1 time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This dual element, current limiting fuse features a 10-second minimum time delay at 500% rated current, providing high inrush current motor protection and maximum short circuit protection. It has an interrupting rating of 300,000 AIC RMS at 250 VAC and 100,000 AIC at 125 VDC. The fuse measures 0.81 inches by 3 inches and is UL Listed and CSA Certified for special purpose applications.

Key Specifications
• Amperage: 45 Amps
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Class: RK1
• Time Delay: Minimum 10 seconds at 500% rated current
• Dual Element Design
• Interrupting Rating: 300,000 AIC RMS @ 250 VAC, 100,000 AIC @ 125 VDC
• Physical Size: 0.81" x 3"
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class 1422-02, File 53787
• Current Limiting for Maximum Short Circuit Protection
• High Inrush Current Motor Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPN-RK-45SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 45
• AIC rating : 300kA@250V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712538398
• GTIN : 00051712538398
• Country of Origin : Mexico
• Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.124
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
