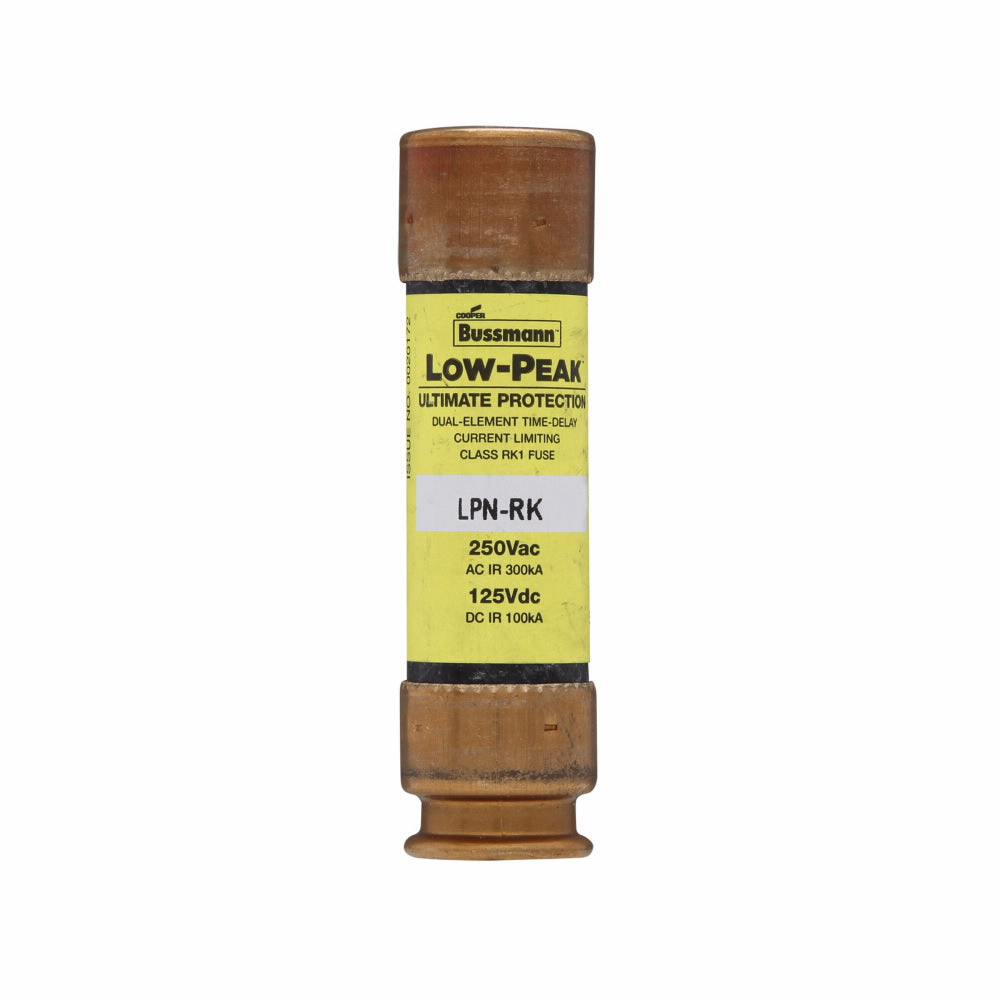

LPN-RK-40SP - Eaton Bussmann 40A 250V Class RK1 Time Delay Dual Element Fuse

LPN-RK-40SP

LPN-RK-40SP is a 40 amp, 250 volt, Class RK1 time delay dual element fuse from Eaton Bussmann series designed for reliable circuit protection.This fuse features a current-limiting design with a 300 kA interrupt rating at 250 Vac and 100 kA at 125 Vdc, providing high short circuit protection and high inrush current motor protection. It has a non-indicating ferrule end connection and meets UL and CSA certifications.

• Amperage Rating: 40 A
• Voltage Rating: 250 Vac, 125 Vdc
• Interrupt Rating: 300 kAIC at 250 Vac, 100 kAIC at 125 Vdc
• Fuse Type: Time Delay, Dual Element, Current Limiting
• Class: RK1
• Connection: Ferrule end x ferrule end
• Physical Size: 0.81 in x 3 in
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked
• Response Time: 10 seconds at 500% overload

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-40SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 40
• AIC rating : 300kA@250V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538381
• GTIN : 00051712538381
• Country of Origin : Mexico
• Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
