LPN-RK-4-1/2SP - Bussmann Eaton 4.5A 250V AC/DC Class RK1 Time Delay Fuse

LPN-RK-4-1/2SP

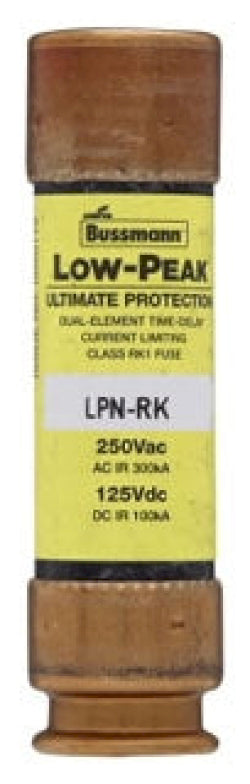

LPN-RK-4-1/2SP is a Bussmann Eaton Class RK1 time-delay fuse rated for 4.5 amperes and 250 volts AC/DC.This fuse features a dual-element, current-limiting design with a non-indicating cartridge body made of melamine. It provides reliable protection with a 300 kA interrupt rating at 250 VAC and 100 kA at 125 VDC. The fuse has a holder mounting type and ferrule end terminals, designed for high inrush current motor protection and rejection style mounting.

• Amperage Rating: 4.5 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 300 kA at 250 VAC, 100 kA at 125 VDC
• Class: RK1
• Fuse Type: Time Delay, Current Limiting, Dual Element
• Indicating: Non-Indicating
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Body Material: Melamine
• Response Time: 8 seconds at 500% overload
• Body Size: 9/16 inch diameter x 2 inch length
• Series: LPN-RK

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-4-1/2SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 4
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538220
• GTIN : 00051712538220
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
