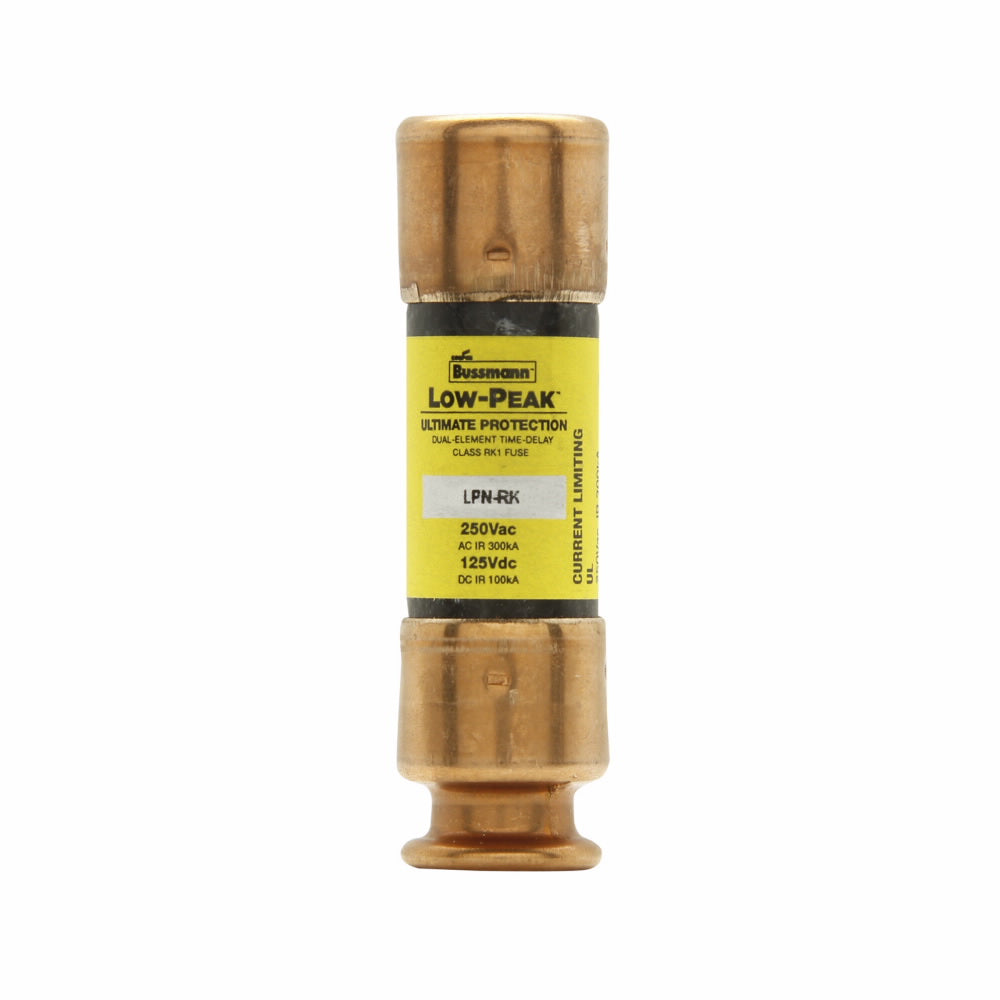

LPN-RK-3SP - Eaton Bussmann Series LPN-RK 3 Amp 250V AC 125V DC Dual Element Time-Delay Low-Peak Class RK1 Fuse, Non-Indicating, Ferrule End, Current-Limiting, 300kA Interrupt Rating

LPN-RK-3SP

LPN-RK-3SP is a genuine Eaton Bussmann Series dual element, time-delay, current-limiting fuse designed for reliable circuit protection in demanding applications.

This Class RK1, Low-Peak fuse offers a 3 Amp rating, 250V AC/125V DC voltage, and a high interrupting rating of 300kA at 250V AC (100kA at 125V DC). Its dual-element design provides both time-delay and fast-acting protection, making it ideal for circuits with high inrush currents. The non-indicating, ferrule-end construction ensures compatibility with standard fuse holders.

Key Specifications

• Part Number: LPN-RK-3SP
• Manufacturer: Eaton Bussmann
• Amperage: 3 A
• Voltage: 250V AC, 125V DC
• Poles: Not applicable (fuse)
• Mounting Type: Ferrule end x ferrule end
• Interrupt Rating: 300kA at 250V AC, 100kA at 125V DC
• Series/Frame: LPN-RK (Class RK1)
• Trip Unit: Dual element, time-delay (8 sec at 500% load)
• Certifications: CE Marked
• Fuse Indicator: Non-indicating
• Physical Size: 0.56" x 2"
• Special Features: Current-limiting, high inrush current motor protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-3SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 3
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538183
• GTIN : 00051712538183
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
