Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPN-RK-350SP

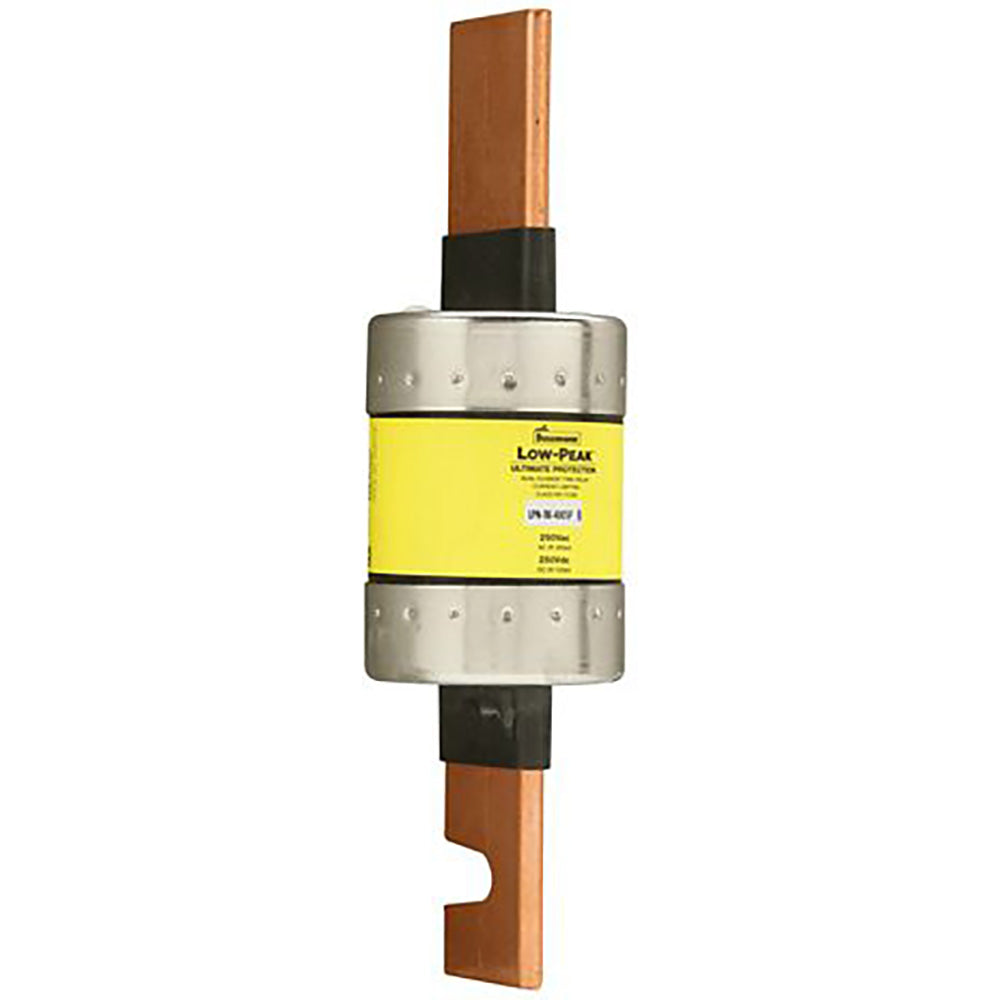

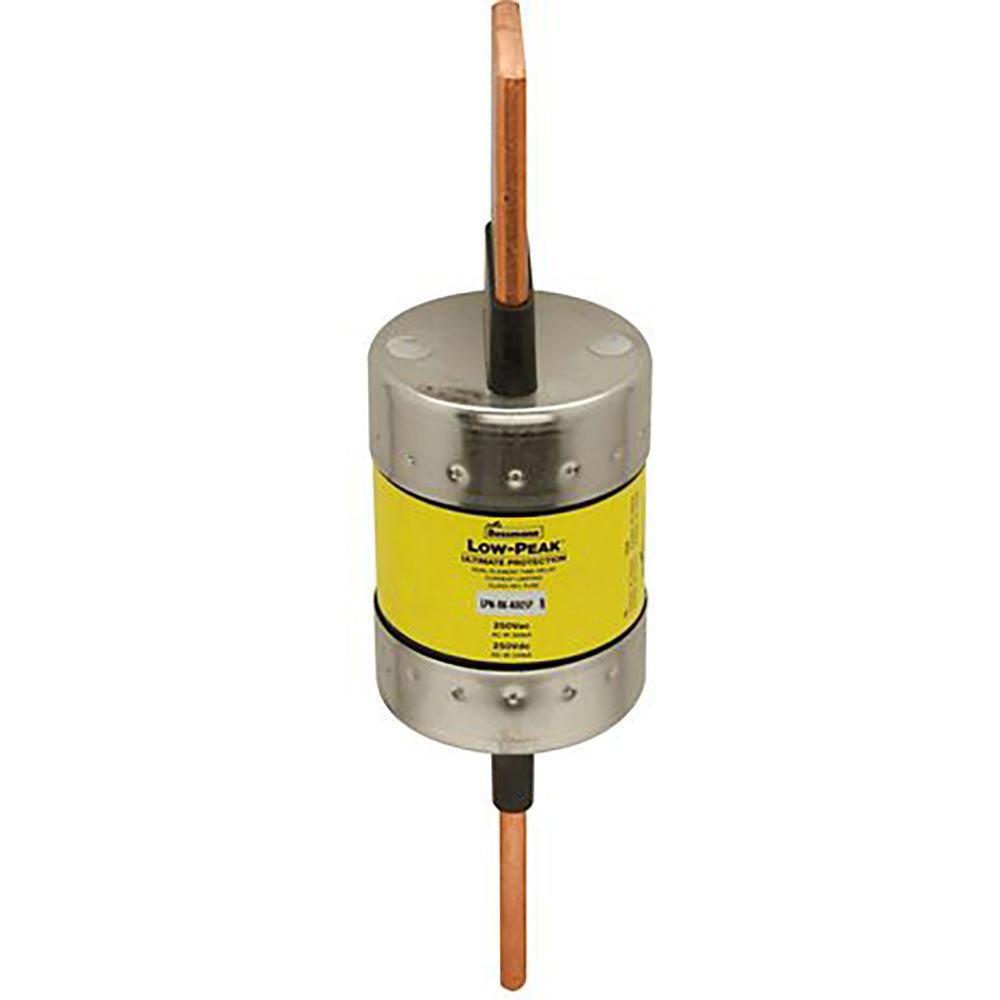

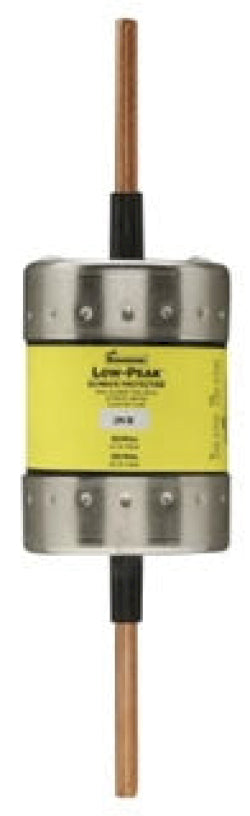

LPN-RK-350SP is a 350 amp, 250 volt dual element time delay fuse from Eaton Bussmann designed for Class RK1 applications.This fuse features a blade end x blade end mounting type with a 10 second time delay at 500% rated load, providing current-limiting protection with a 300 kA interrupt rating. It is non-indicating and part of the LPN series, suitable for low-peak fuse applications.
- Key Specifications
- Amperage: 350 A
- Voltage Rating: 250 VAC / 250 VDC
- Fuse Type: Dual Element Time Delay
- Class: RK1
- Mounting Type: Blade end x blade end
- Interrupt Rating: 300 kA
- Series: LPN
- Non-indicating
- Current Limiting
- 10 second time delay at 500% rated load
- Part Number: LPN-RK-350SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 350
- AIC rating : 300kA@250V
- Diameter : 2.36
- Class Rating : RK1
- Barrels : 1
- UPC : 051712538541
- GTIN : 00051712538541
- Country of Origin : Mexico
- Dimensions : 8.63 in x 2.36 in x 2.36 in (Length/Depth x Height x Width)
- Weight : 1.95
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
