Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

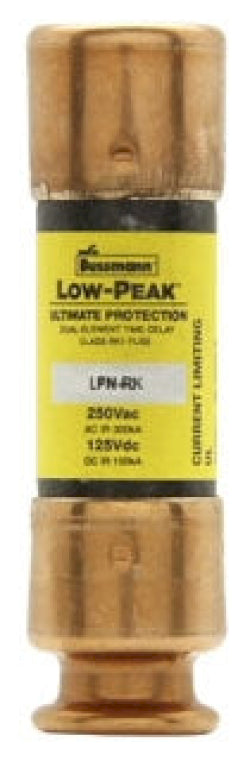

LPN-RK-30SP
LPN-RK-30SP is a 30 Amp, 250VAC/125VDC time delay dual-element fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a current rating of 30 Amps, voltage ratings of 250VAC and 125VDC, and an interrupting rating of 300kAIC at 250VAC and 100kAIC at 125VDC. It is a Class RK1 Low-Peak fuse with a ferrule end x ferrule end connection type, providing current-limiting protection with time-delay performance for maximum short-circuit protection and compatibility with IEC and NEMA starters.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 250VAC, 125VDC
- Interrupting Rating: 300kAIC at 250VAC, 100kAIC at 125VDC
- Fuse Type: Time Delay, Dual Element
- Series: LPN-RK (Low-Peak)
- Connection Type: Ferrule End x Ferrule End
- Class: RK1
- Physical Size: 0.56" diameter x 2" length
- Current Limiting: Yes
- Certifications: UL Listed
Specifications
- Part Number: LPN-RK-30SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 30
- AIC rating : 300kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712538367
- GTIN : 00051712538367
- Country of Origin : Mexico
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
