Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

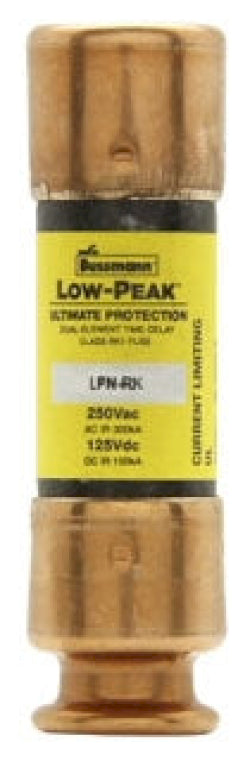

LPN-RK-3-2/10SP
LPN-RK-3-2/10SP is a Eaton Bussmann series Class RK1 dual element, time-delay fuse rated at 3.2 amps and 250 volts AC/125 volts DC.This fuse provides current limiting protection with a high interrupt rating of 300,000 amps symmetrical and is designed for cartridge mounting.
- Key Specifications
- Amperage Rating: 3.2 A
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: RK1
- Type: Dual Element, Time Delay (Slow Blow)
- Interrupt Rating: 300,000 A Symmetrical
- Mounting Type: Cartridge
- Terminal Type: Ferrule End
- Non-Indicating
- Response Time: 8 seconds at 500% rated current
- Current Limiting
- Body Material: Melamine
- Rejection Type: Rejection
Specifications
- Part Number: LPN-RK-3-2/10SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 3
- AIC rating : 300kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712538190
- GTIN : 00051712538190
- Country of Origin : Mexico
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
