Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPN-RK-250

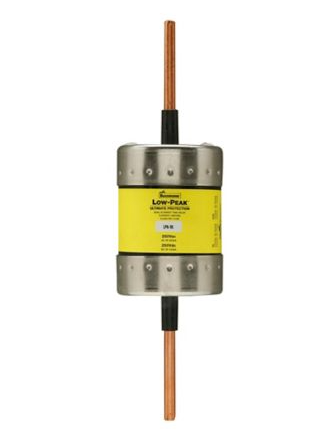

LPN-RK-250 is a 250A, 250VAC dual element, time-delay fuse from Eaton's Bussmann series, designed for reliable circuit protection in industrial and commercial applications.This Class RK1 fuse features a dual element construction for time-delay performance, providing protection against overloads and short circuits. It is current limiting for maximum short circuit protection and suitable for use in fuse blocks or fuse holders rated for Class R fuses. The LPN-RK-250 is non-indicating and meets UL and CSA safety standards.
- Amperage: 250A
- Voltage: 250VAC / 250VDC
- Class: RK1
- Series: LPN-RK
- Element Type: Dual Element
- Time-Delay: Yes (minimum 10 seconds at 500% rated current)
- Interrupting Rating: 300,000 AIC RMS @ 250VAC
- DC Interrupting Rating: 100,000 AIC
- Mounting Type: Fuse Block or Fuse Holder
- Physical Size: 2.36" x 8.63"
- Standards: UL Listed, CSA Certified
- Application: Motor Protection, General Purpose
Specifications
- Part Number: LPN-RK-250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 250
- AIC rating : 300kA@250V
- Connection : Knife Blade
- Diameter : 2.36
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712538527
- GTIN : 00051712538527
- Weight : 2
