LPN-RK-225SP - Bussmann Eaton 225A 250V AC Class RK1 Time Delay Fuse

LPN-RK-225SP

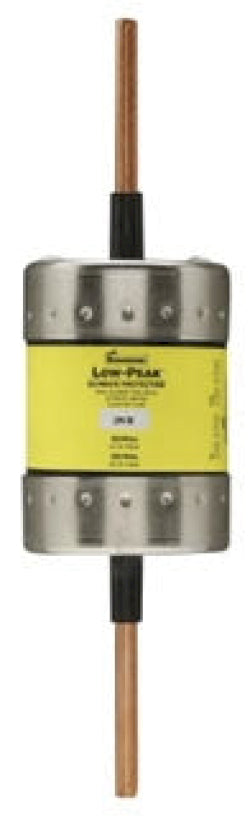

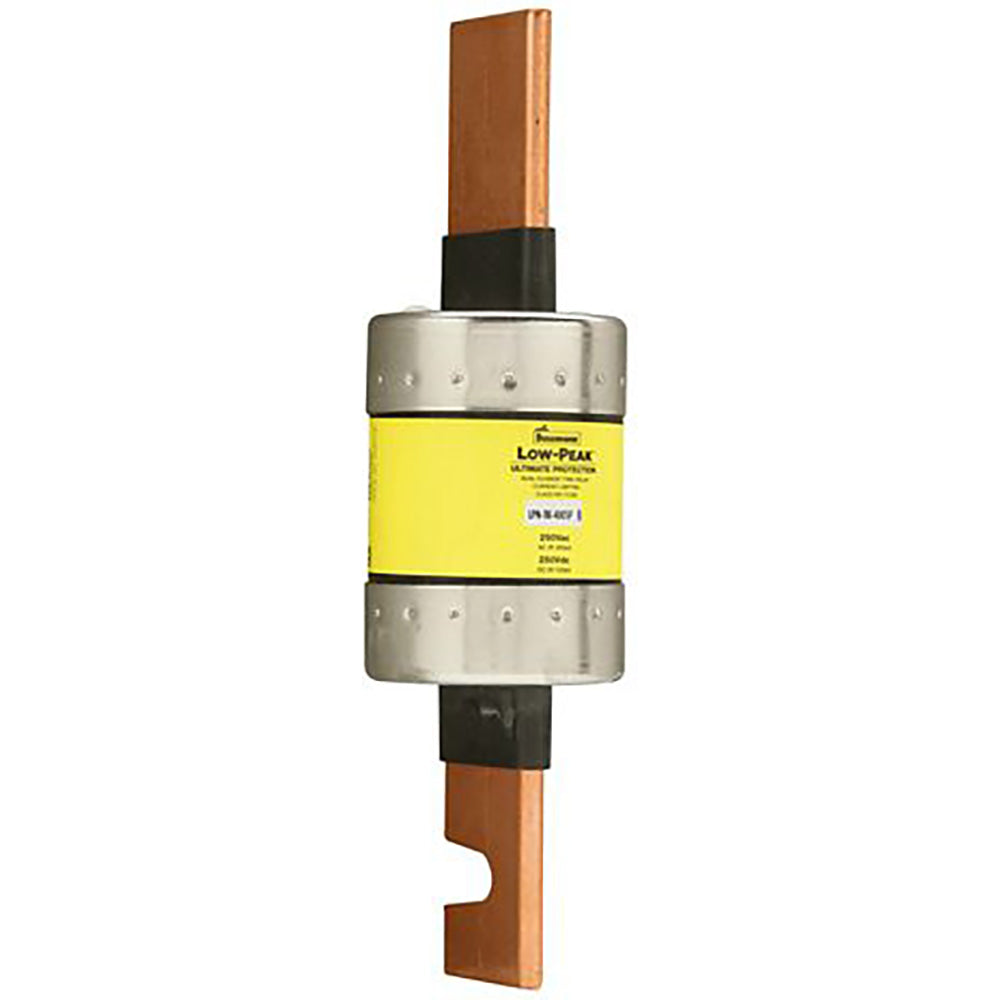

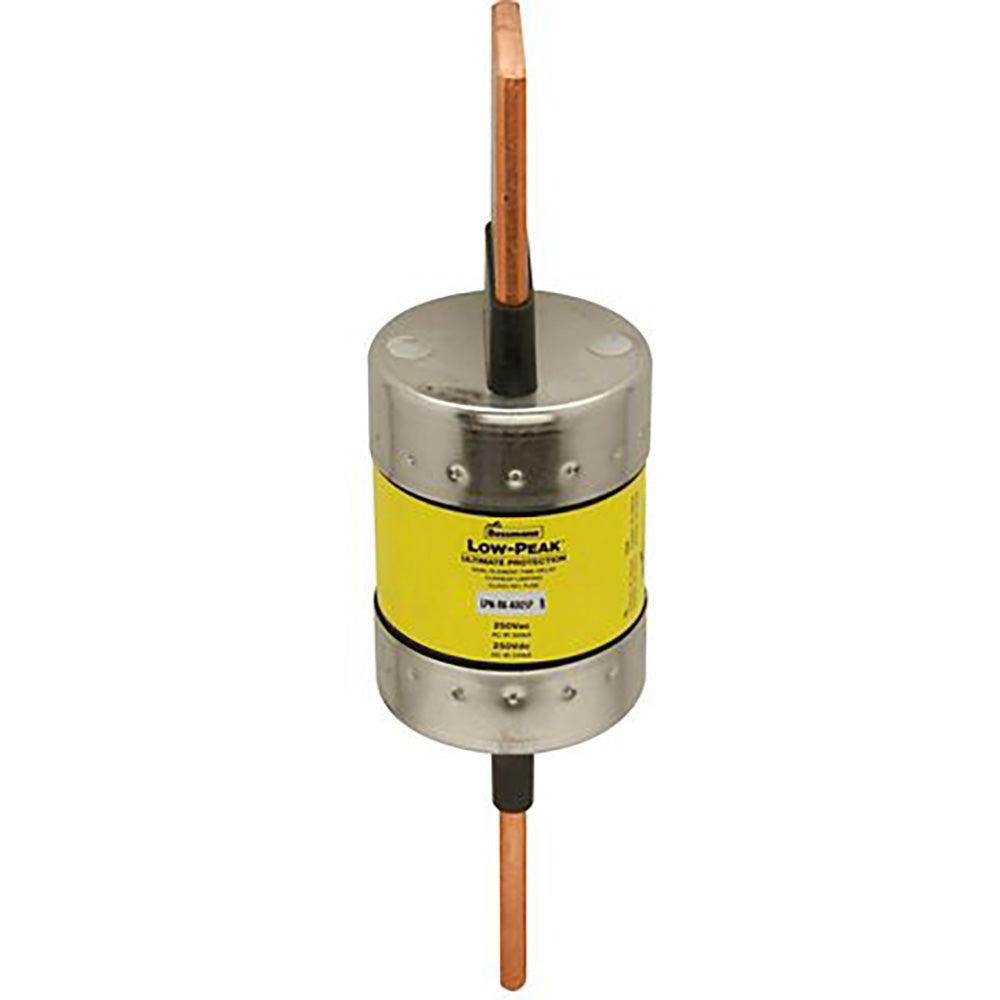

LPN-RK-225SP is a 225 Amp, 250 Volt AC Class RK1 time delay fuse from Bussmann Eaton designed for high short circuit protection and motor inrush current tolerance.This Low-Peak™ dual element fuse features current limiting and a minimum 10-second time delay for reliable protection in industrial and commercial electrical applications. It has a 300,000 AIC interrupt rating at 250 VAC and 100,000 AIC at 250 VDC. The fuse is UL Listed, CSA Certified, and CE marked, ensuring compliance with safety standards.

Key Specifications
• Amperage: 225 Amps
• Voltage Rating: 250 VAC / 250 VDC
• Fuse Class: RK1
• Fuse Type: Time Delay, Dual Element
• Interrupt Rating: 300,000 AIC @ 250 VAC, 100,000 AIC @ 250 VDC
• Physical Size: 2.36" x 8.63"
• Mounting Type: Blade end x blade end
• Certifications: UL Listed, CSA Certified, CE Marked
• Special Purpose Guide: JFHR, File E56412

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-225SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 225
• AIC rating : 300kA@250V
• Diameter : 2.36
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538510
• GTIN : 00051712538510
• Dimensions : 8.63 in x 2.36 in x 2.36 in (Length/Depth x Height x Width)
• Weight : 1.75
• Certification : Ul Listed Csa Certified Ce Marked
