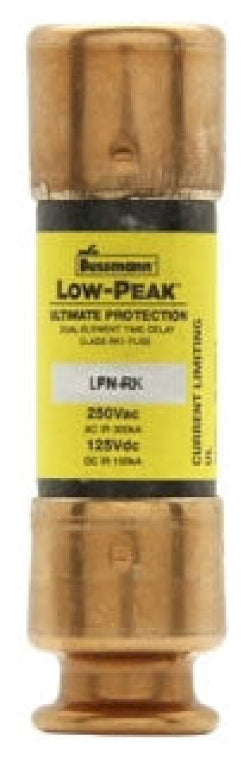

LPN-RK-20SP - Eaton Bussmann 20A 250V Dual Element Time-Delay Class RK1 Fuse

LPN-RK-20SP

LPN-RK-20SP is a 20 amp, 250 volt AC dual-element time-delay fuse from Eaton Bussmann's Class RK1 series designed for reliable circuit protection.This fuse features a current-limiting design with dual elements for time-delay performance, providing high inrush current motor protection and fast short-circuit interruption. It has a non-indicating ferrule end connection and an interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc. The fuse measures 0.56 inches by 2 inches and complies with CE marking standards.

• Amperage: 20 A
• Voltage Rating: 250 Vac, 125 Vdc
• Fuse Type: Time-delay, dual-element, current limiting
• Interrupt Rating: 300 kA at 250 Vac, 100 kA at 125 Vdc
• Class: RK1
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Response Time: 8 seconds at 500% overload
• Dimensions: 0.56 in diameter x 2 in length
• Certifications: CE Marked
• Special Features: High inrush current motor protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-20SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 20
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538343
• GTIN : 00051712538343
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
