LPN-RK-200SP - Bussmann 200A 250V AC Class RK1 Time Delay Fuse Dual Element

LPN-RK-200SP

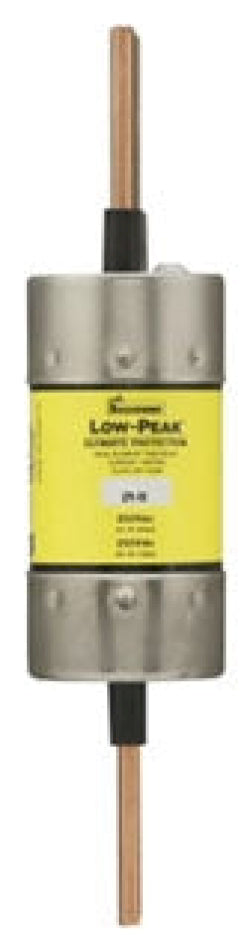

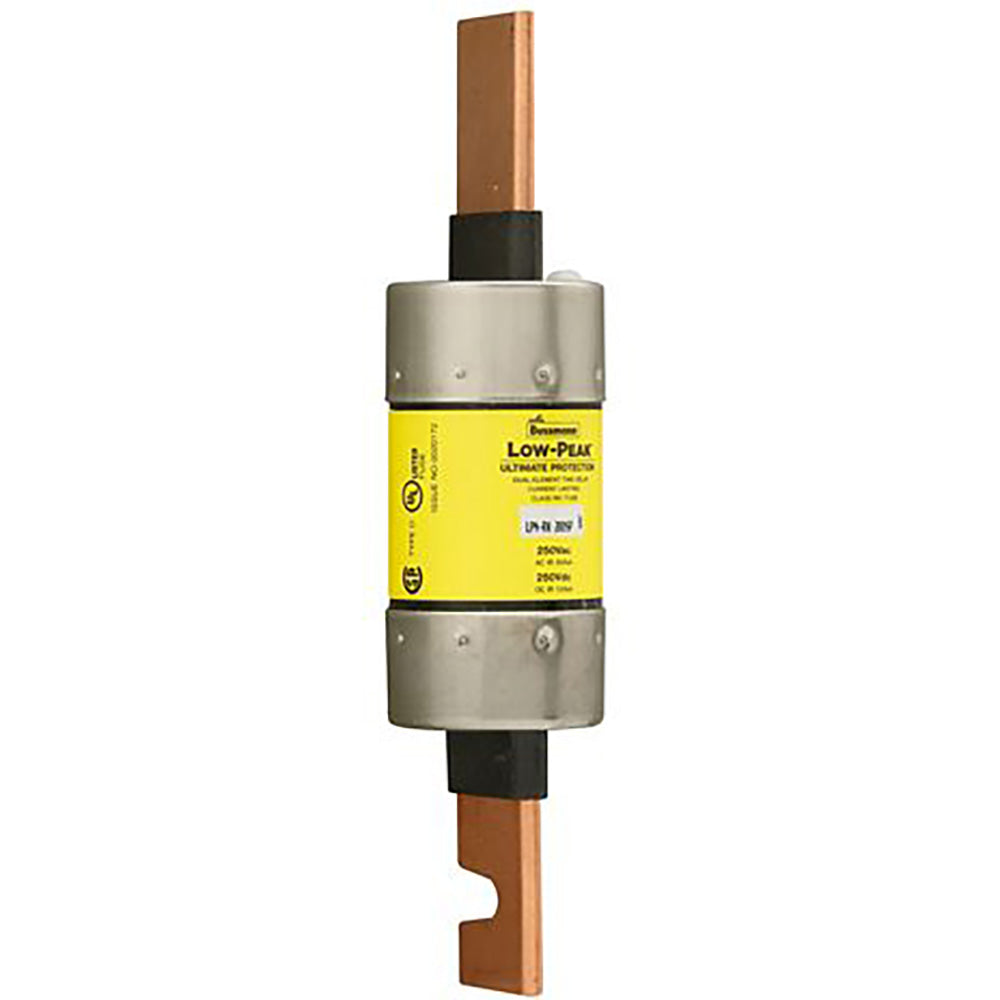

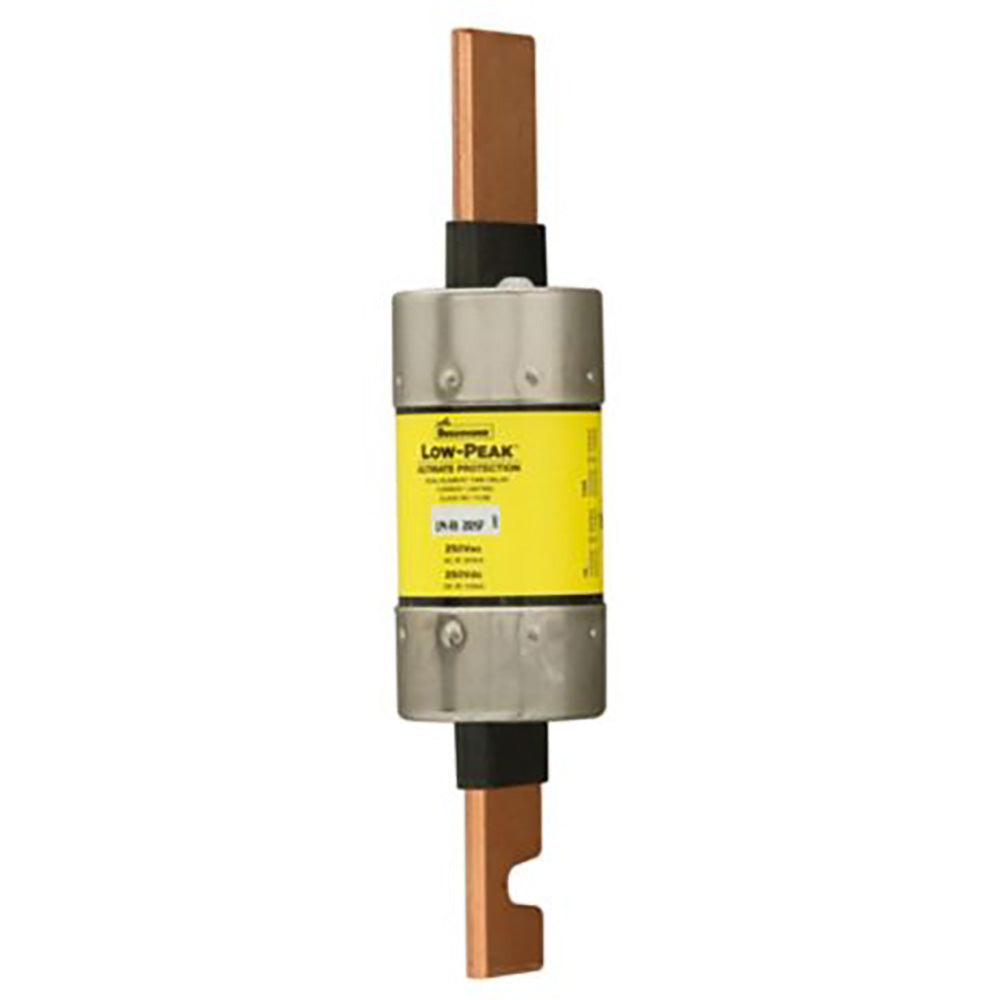

LPN-RK-200SP is a Bussmann Low-Peak™ Class RK1 time delay fuse rated for 200 amps and 250 volts AC/DC.

This dual element, current limiting fuse provides a minimum 10-second time delay for high inrush current motor protection and maximum short circuit protection. It features a 300,000 AIC interrupt rating at 250 VAC and 100,000 AIC at 250 VDC. The fuse is UL Listed, CSA Certified, and CE marked, with a cartridge body measuring 1.61" x 7.13" and blade end terminals for easy mounting.

Key Specifications
• Amperage: 200 Amps
• Voltage Rating: 250 VAC / 250 VDC
• Fuse Class: RK1
• Time Delay: Minimum 10 seconds
• Interrupt Rating: 300,000 AIC RMS @ 250 VAC, 100,000 AIC DC
• Fuse Type: Dual Element, Current Limiting
• Physical Size: 1.61" x 7.13"
• Mounting Type: Blade End x Blade End
• Certifications: UL Listed, CSA Certified, CE Marked
• Series: Low-Peak™ LPN-RK

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-200SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 200
• AIC rating : 300kA@250V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538503
• GTIN : 00051712538503
• Country of Origin : Mexico
• Dimensions : 7.13 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
• Weight : 0.69
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
