Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

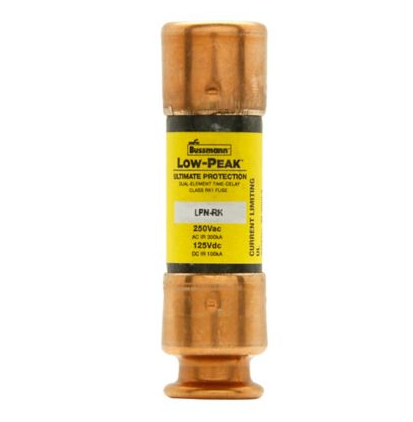

LPN-RK-2-1/2SP
LPN-RK-2-1/2SP is a Eaton Bussmann Series Class RK1 dual-element, time-delay fuse designed for ultimate circuit protection.This fuse features current-limiting and rejection time-delay characteristics, rated for 2.5 amps with voltage ratings of 250 Vac and 125 Vdc. It provides fast short-circuit protection and is suitable for general-purpose circuits, motors, transformers, and solenoids. The fuse has a ferrule terminal connection with a grooved ring for secure mounting.
- Key Specifications
- Amperage: 2.5 A
- Voltage Rating: 250 Vac, 125 Vdc
- Fuse Type: Dual-element, time-delay
- Series: Bussmann LPN-RK
- Interrupt Rating: 300 kA at 250 Vac, 100 kA at 125 Vdc
- Terminal Connection: Ferrule with grooved ring
- Mounting Type: Rejection style
- Non-indicating fuse
- Class RK1 fuse
Specifications
- Part Number: LPN-RK-2-1/2SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 2
- AIC rating : 300kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712538169
- GTIN : 00051712538169
- Country of Origin : Mexico
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
