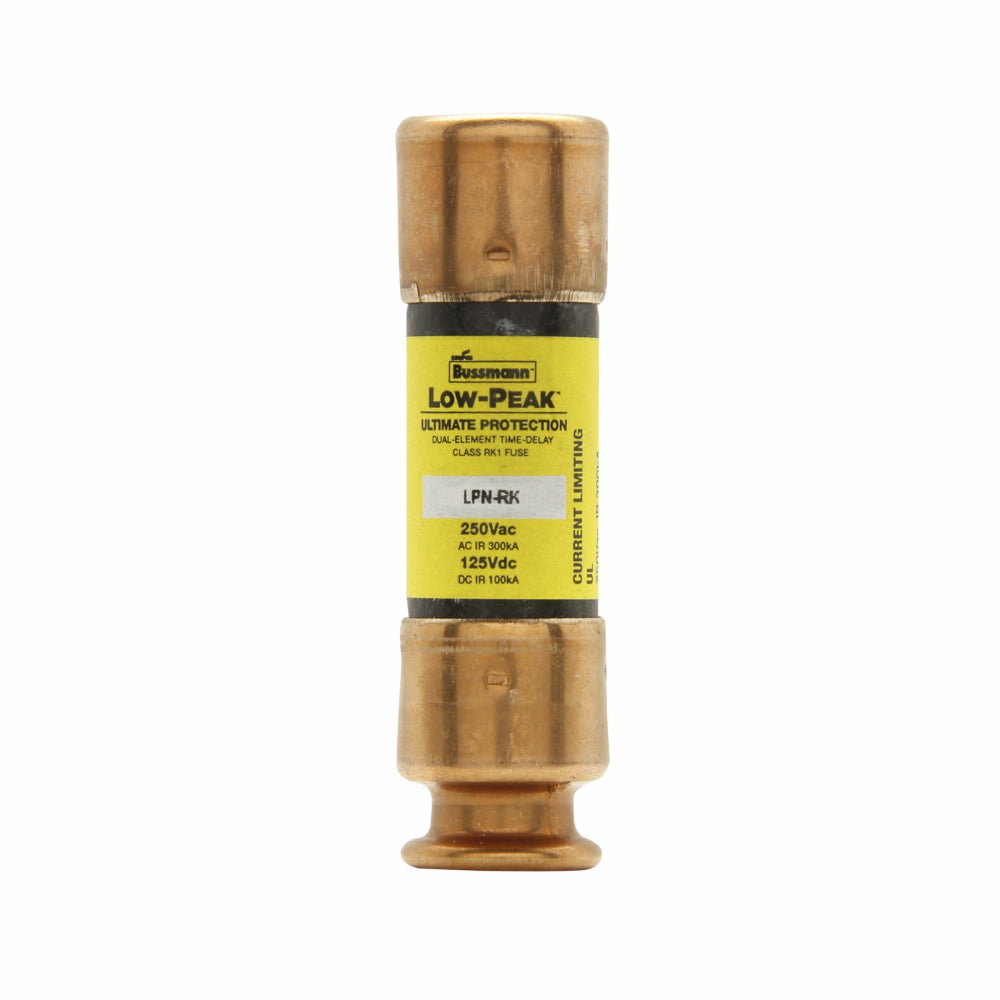

LPN-RK-1SP - Eaton Bussmann 1A 250Vac/125Vdc Dual Element Time-Delay Class RK1 Fuse

LPN-RK-1SP

LPN-RK-1SP is a Eaton Bussmann series Class RK1 dual element, time-delay fuse rated at 1 ampere for circuit protection.This fuse features a current-limiting design with a voltage rating of 250 Vac and 125 Vdc, an interrupt rating of 300 kA at 250 Vac and 100 kA at 125 Vdc, and a response time of 8 seconds at 500% overload. It is non-indicating with ferrule end connections and provides high inrush current motor protection.

• Amperage: 1 A
• Voltage Rating: 250 Vac / 125 Vdc
• Interrupt Rating: 300 kA at 250 Vac, 100 kA at 125 Vdc
• Fuse Type: Time-delay, current-limiting
• Class: RK1
• Number of Elements: Dual
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Response Time: 8 seconds at 500% overload
• Physical Size: 0.56 in x 2 in
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-1SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 1
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538084
• GTIN : 00051712538084
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
