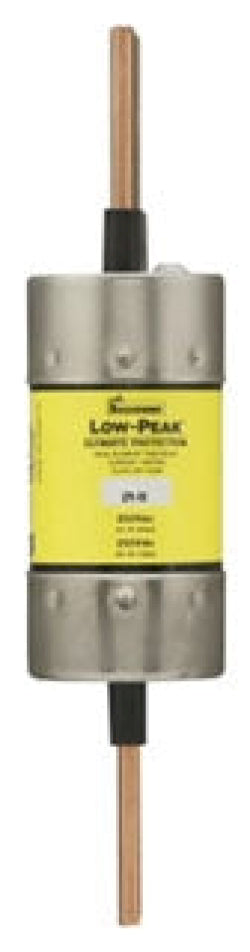

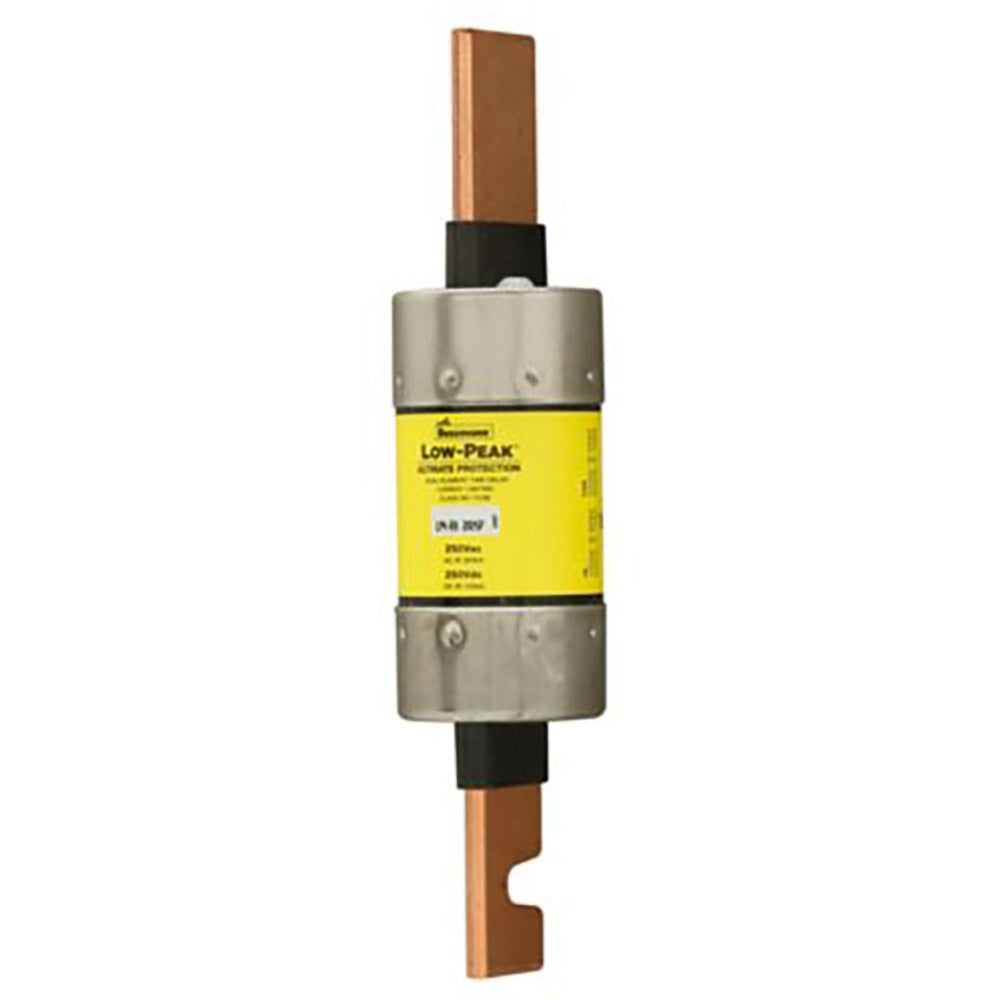

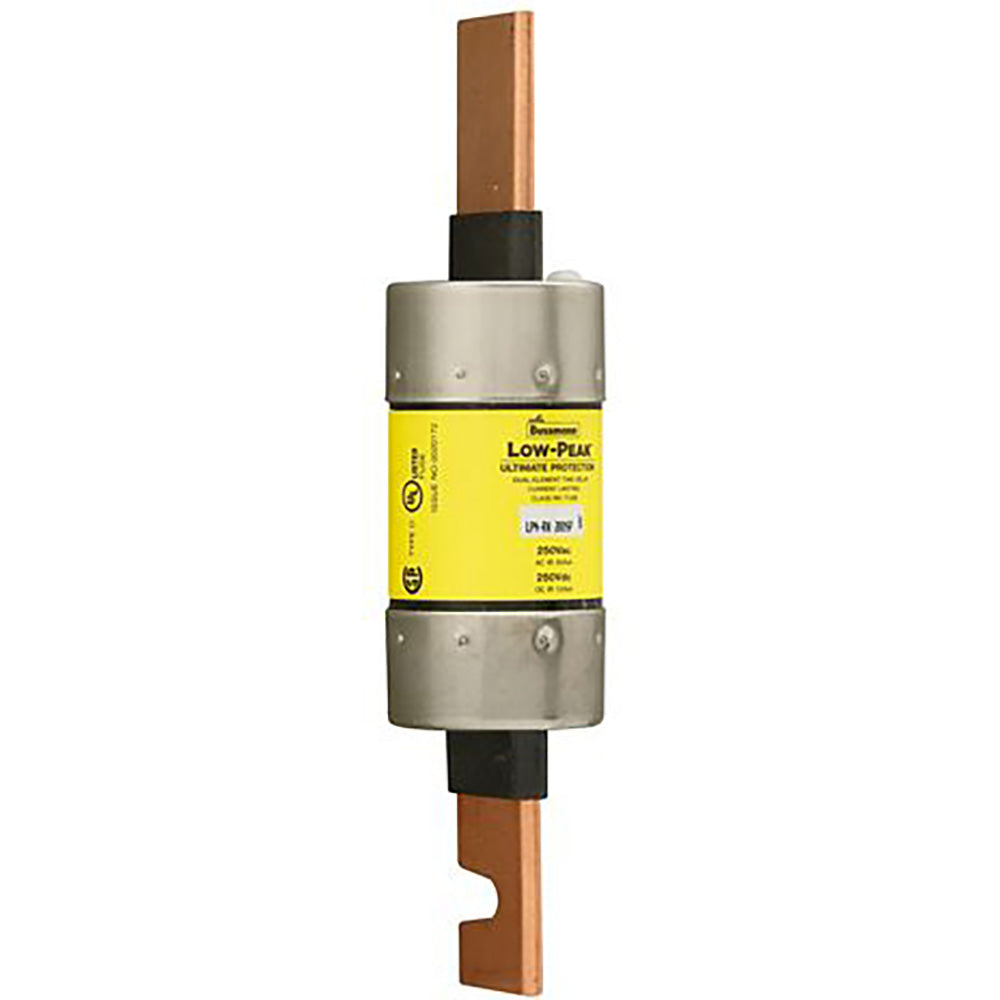

LPN-RK-175SP - Bussmann 175A 250V AC Class RK1 Time Delay Dual Element Fuse

LPN-RK-175SP

LPN-RK-175SP is a 175 Amp, 250 Volt AC Class RK1 time delay fuse from Bussmann designed for high inrush current motor protection and maximum short circuit protection.This Low-Peak™ dual element fuse features a minimum 10 second time delay, current limiting capability, and a physical size of 1.61" x 7.13". It has an interrupting rating of 300,000 AIC RMS at 250 VAC and 100,000 AIC at 250 VDC. Certified to UL, CSA, and CE standards, it is suitable for use in industrial and commercial applications requiring reliable fuse protection.

Key Specifications
• Amperage: 175 Amps
• Voltage Rating: 250 V AC / 250 V DC
• Fuse Class: RK1
• Time Delay: Minimum 10 seconds
• Fuse Type: Dual Element, Current Limiting
• Interrupting Rating: 300,000 AIC RMS @ 250 VAC, 100,000 AIC @ 250 VDC
• Physical Size: 1.61" x 7.13"
• Certifications: UL Listed, CSA Certified, CE Marked
• Mounting Type: Cartridge Blade Fuse
• Series: LPN-RK-SP
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPN-RK-175SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 175
• AIC rating : 300kA@250V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712538497
• GTIN : 00051712538497
• Country of Origin : Mexico
• Dimensions : 7.13 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
• Weight : 0.69
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
