Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

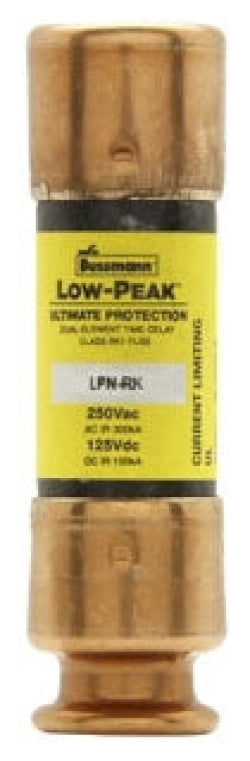

LPN-RK-15SP
LPN-RK-15SP is a 15 amp, 250 volt time-delay, dual-element fuse from Eaton Bussmann's Class RK1 series designed for reliable circuit protection.This fuse features a current-limiting design with a 300 kA interrupt rating at 250 VAC and 100 kA at 125 VDC, providing high inrush current motor protection and non-indicating ferrule end connections. It has a response time of 8 seconds at 500% overload and is CE marked for compliance.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 250 VAC / 125 VDC
- Interrupt Rating: 300 kA at 250 VAC, 100 kA at 125 VDC
- Fuse Type: Time Delay, Current Limiting
- Number of Elements: Dual
- Class: RK1
- Mounting Type: Ferrule End x Ferrule End
- Fuse Indicator: Non-indicating
- Response Time: 8 seconds at 500% overload
- Compliance: CE Marked
Specifications
- Part Number: LPN-RK-15SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 15
- AIC rating : 300kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712538329
- GTIN : 00051712538329
- Country of Origin : Mexico
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5 lb
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
